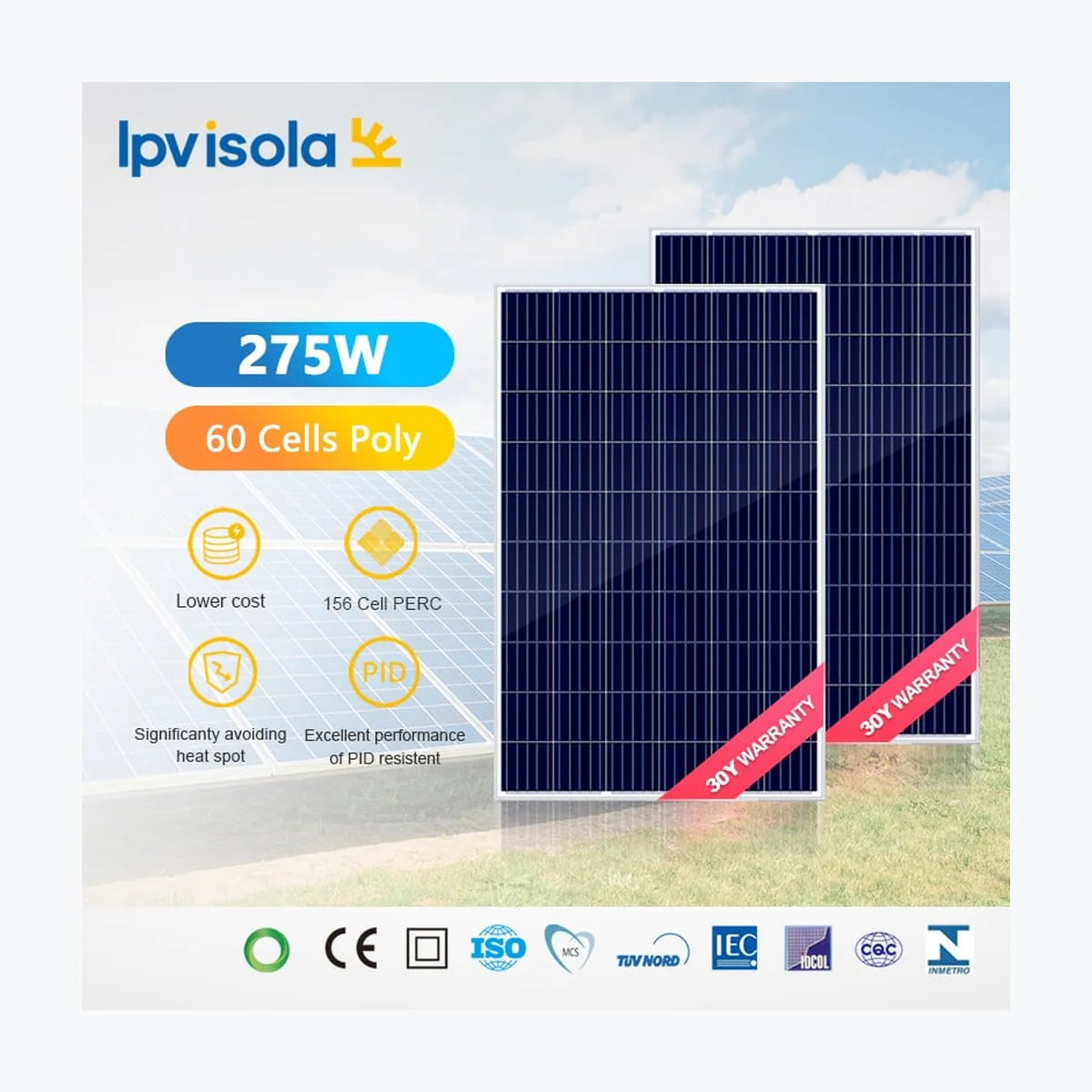

Isola New Energy YH275W-30P
PayPal Pay in 4 interest-free payments of $25.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-9220
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Polycrystalline Model No. YH275W-30P Product Warranty 12 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 275 Wp Voltage at Maximum Power (Vmpp) 31.92 V Current at Maximum Power (Impp) 8.62 A Open Circuit Voltage (Voc) 37.46 V Short Circuit Current (Isc) 9.1 A Panel Efficiency 16.9 % Maximum Power (Pmax) 204 Wp Voltage at Maximum Power (Vmpp) 29.25 V Current at Maximum Power (Impp) 6.98 A Open Circuit Voltage (Voc) 35.09 V Short Circuit Current (Isc) 7.55 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.4 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1640x992x35 mm Weight 17.1 kg Cell Size 156×156 mm Cell Number 60 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufacturer's PDF
Technology: PERC
Power Range: 250 ~ 275 Wp
Panel Efficiency: 15.38 ~ 16.9 %
Weight: 17.1 kg
Seller Name: Zhejiang Isola New Energy Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-9220 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number | |
| Wattage |
No documents available for this product. Contact us to request documentation.
