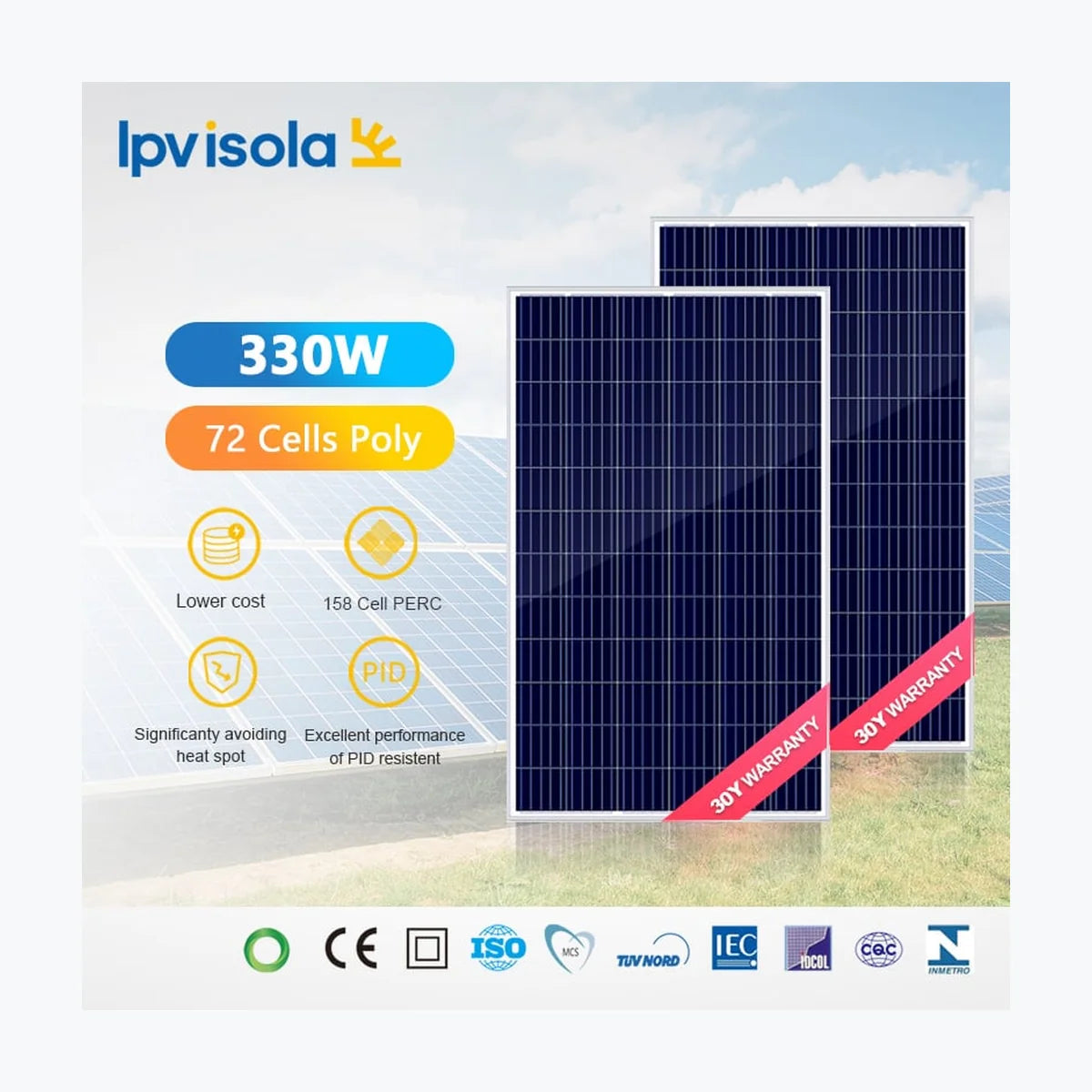

    Isola New Energy YH330W-36P

    Isola New Energy YH330W-36P

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9224
    • Container price: $81.00 USD
    • Container qty: 720
    • Odoo id: 24,647
    • Pallet price: $3.82 USD
    • Pallet qty: 30
    • Unit price: $0.15 USD
    View full details

    Product Description

    • Type Polycrystalline Model No. YH330W-36P Product Warranty 12 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 330 Wp Voltage at Maximum Power (Vmpp) 38.64 V Current at Maximum Power (Impp) 8.54 A Open Circuit Voltage (Voc) 46.02 V Short Circuit Current (Isc) 9.09 A Panel Efficiency 17.01 % Maximum Power (Pmax) 245 Wp Voltage at Maximum Power (Vmpp) 34.28 V Current at Maximum Power (Impp) 7.15 A Open Circuit Voltage (Voc) 41.15 V Short Circuit Current (Isc) 7.72 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.4 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1956x992x35 mm Weight 20.5 kg Cell Size 156×156 mm Cell Number 72 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufacturer's P

      Technology: PERC
      Power Range: 300 ~ 330 Wp
      Panel Efficiency: 15.46 ~ 17.01 %
      Weight: 20.5 kg
      Seller Name: Zhejiang Isola New Energy Co., Ltd.
      Country: China
