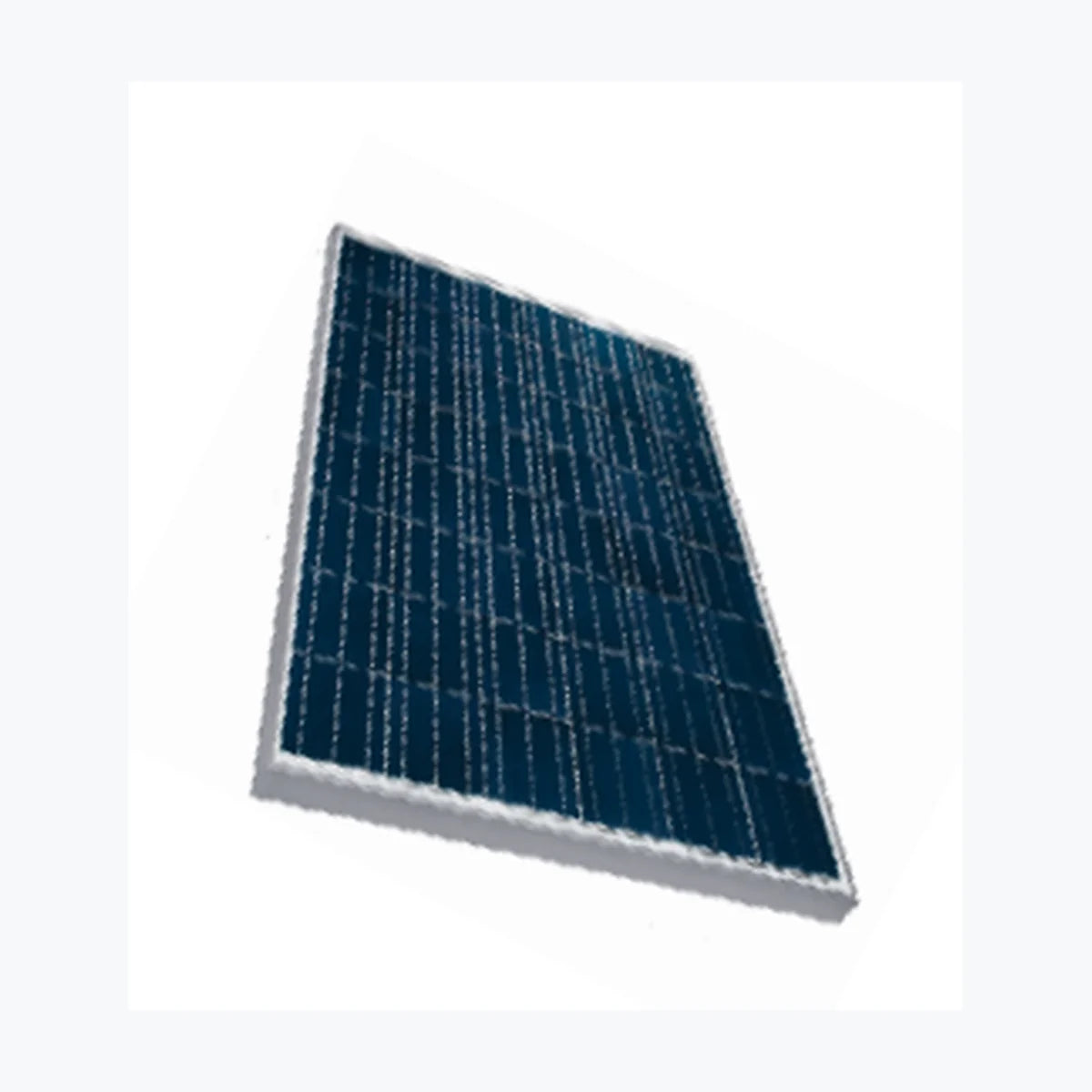

JS Solar 210P
PayPal Pay in 4 interest-free payments of $25.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-9734
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Polycrystalline Model No. 210P Product Warranty 10 Years Power Warranty 25 Years of 81.4 % Total Degradation Rate ⏳ 0.74 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 210 Wp Voltage at Maximum Power (Vmpp) 25.3 V Current at Maximum Power (Impp) 8.3 A Open Circuit Voltage (Voc) 31.1 V Short Circuit Current (Isc) 8.88 A Panel Efficiency 16 % Maximum Power (Pmax) 154 Wp Voltage at Maximum Power (Vmpp) 22.9 V Current at Maximum Power (Impp) 6.72 A Open Circuit Voltage (Voc) 28.6 V Short Circuit Current (Isc) 7.34 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.45 %/°C Temperature Coefficient of Voc -0.32 %/°C Temperature Coefficient of Isc 0.06 %/°C Series Fuse Rating 15 A Panel Dimension (H/W/D) 1324x992x35 mm Weight 15.4 kg Cell Number 48 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Connector Type MC4 Cable Length 900 mm Download Manufacturer's PDF Datasheet
Power Range: 200 ~ 225 Wp
Panel Efficiency: 15.23 ~ 17.13 %
Weight: 15.4 kg
Seller Name: Yixing JS Solar Co., Ltd
Country: China
| SKU | PES-SPS-SOL-9734 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
