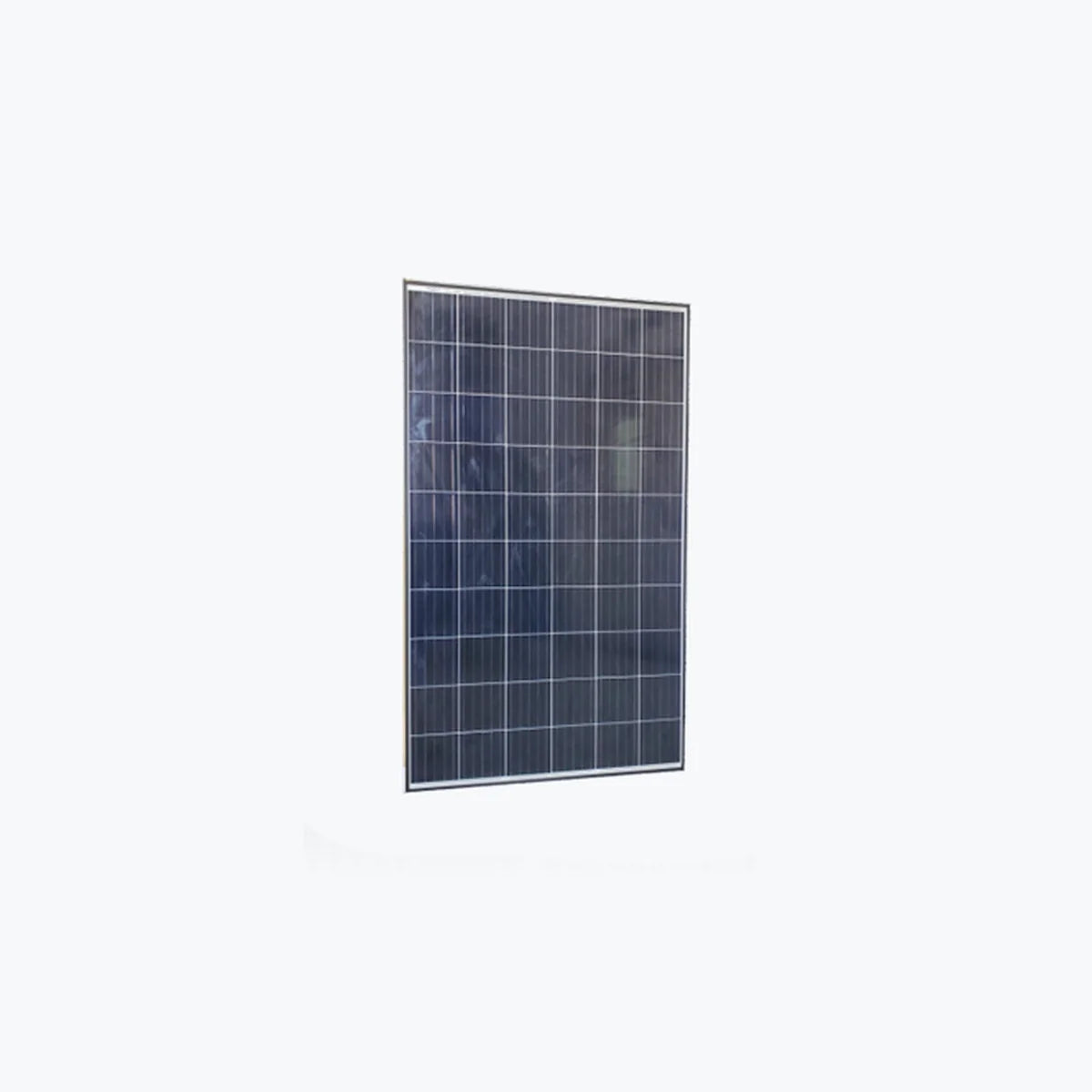

    JS Solar 350

    JS Solar 350

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9738
    • Container price: $59.40 USD
    • Container qty: 720
    • Odoo id: 24,611
    • Pallet price: $2.80 USD
    • Pallet qty: 30
    • Unit price: $0.11 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 350 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 350 Wp Voltage at Maximum Power (Vmpp) 30.61 V Current at Maximum Power (Impp) 12.74 A Open Circuit Voltage (Voc) 36.54 V Short Circuit Current (Isc) 13.51 A Panel Efficiency 18.9 % Maximum Power (Pmax) 288 Wp Voltage at Maximum Power (Vmpp) 28.5 V Current at Maximum Power (Impp) 10.11 A Open Circuit Voltage (Voc) 34.3 V Short Circuit Current (Isc) 10.59 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1754x1038x35 mm Weight 34 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 350 mm Download M

      Power Range: 350 ~ 375 Wp
      Panel Efficiency: 18.9 ~ 21.3 %
      Weight: 34 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
