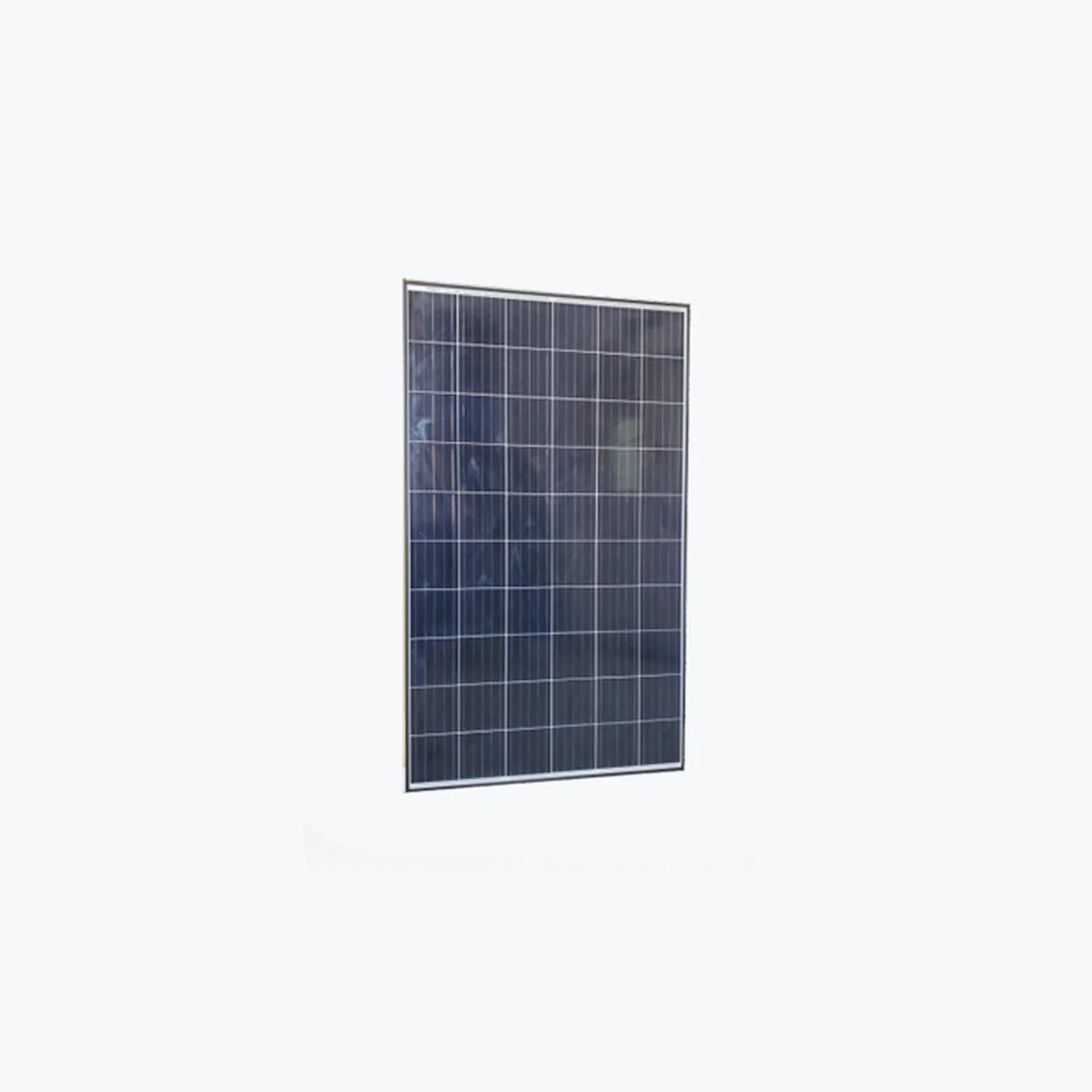

JS Solar 355
PayPal Pay in 4 interest-free payments of $31.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-9740
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. 355 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 355 Wp Voltage at Maximum Power (Vmpp) 30.72 V Current at Maximum Power (Impp) 12.86 A Open Circuit Voltage (Voc) 36.84 V Short Circuit Current (Isc) 13.57 A Panel Efficiency 20.2 % Maximum Power (Pmax) 292 Wp Voltage at Maximum Power (Vmpp) 28.6 V Current at Maximum Power (Impp) 10.21 A Open Circuit Voltage (Voc) 34.4 V Short Circuit Current (Isc) 10.62 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1754x1038x35 mm Weight 34 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 350 mm Download M
Power Range: 350 ~ 375 Wp
Panel Efficiency: 18.9 ~ 21.3 %
Weight: 34 kg
Seller Name: Yixing JS Solar Co., Ltd
Country: China
| SKU | PES-SPS-SOL-9740 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
