1 0

    In Stock

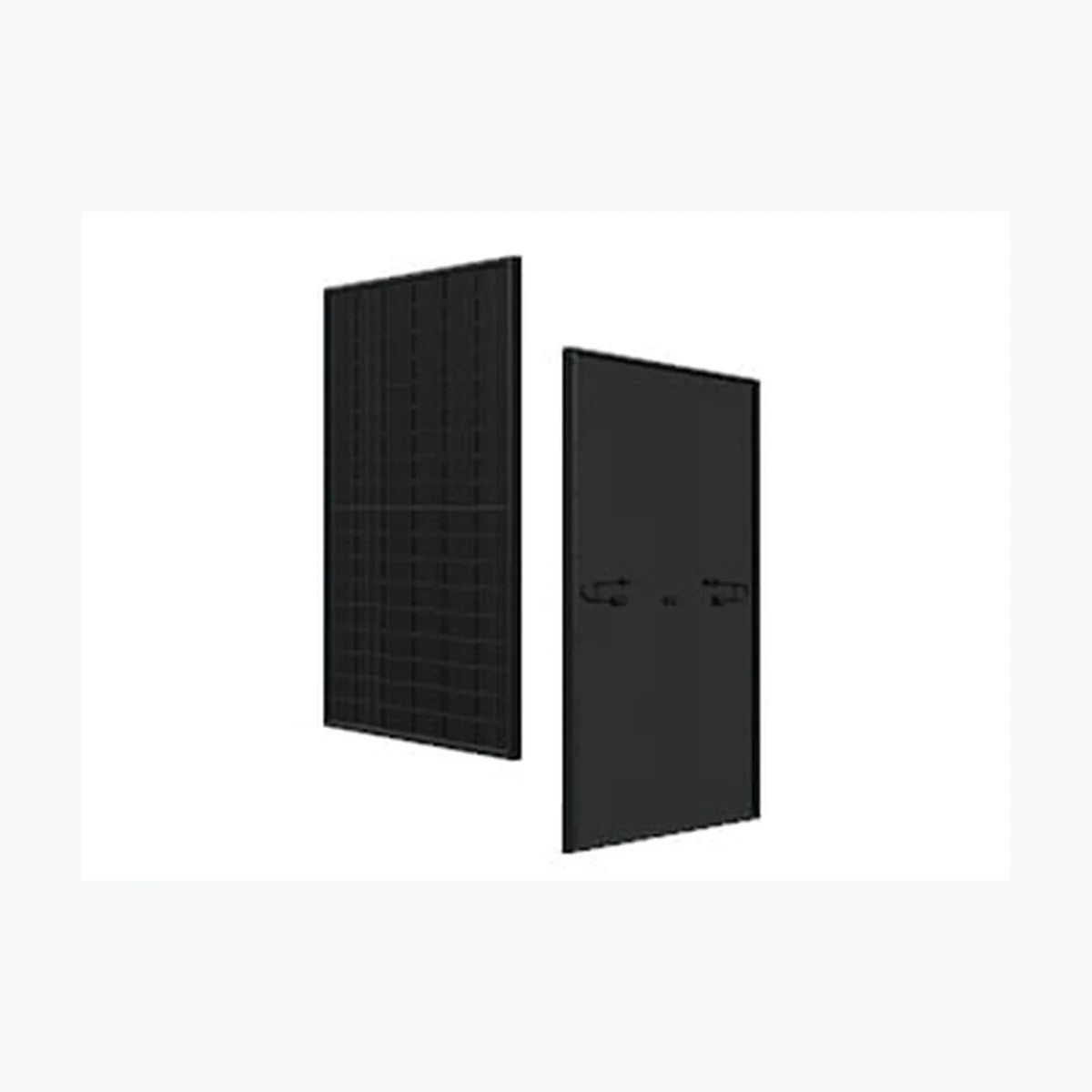

    JS Solar 430

    JS Solar 430

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9757
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,677
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 430 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 32.3 V Current at Maximum Power (Impp) 13.32 A Open Circuit Voltage (Voc) 38.9 V Short Circuit Current (Isc) 13.99 A Panel Efficiency 22.02 % Maximum Power (Pmax) 324 Wp Voltage at Maximum Power (Vmpp) 30.41 V Current at Maximum Power (Impp) 10.66 A Open Circuit Voltage (Voc) 36.96 V Short Circuit Current (Isc) 11.19 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 19 kg Cell Size 182×182 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable

      Technology: TOPCon
      Power Range: 420 ~ 435 Wp
      Panel Efficiency: 21.51 ~ 22.28 %
      Weight: 19 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
