1 0

    In Stock

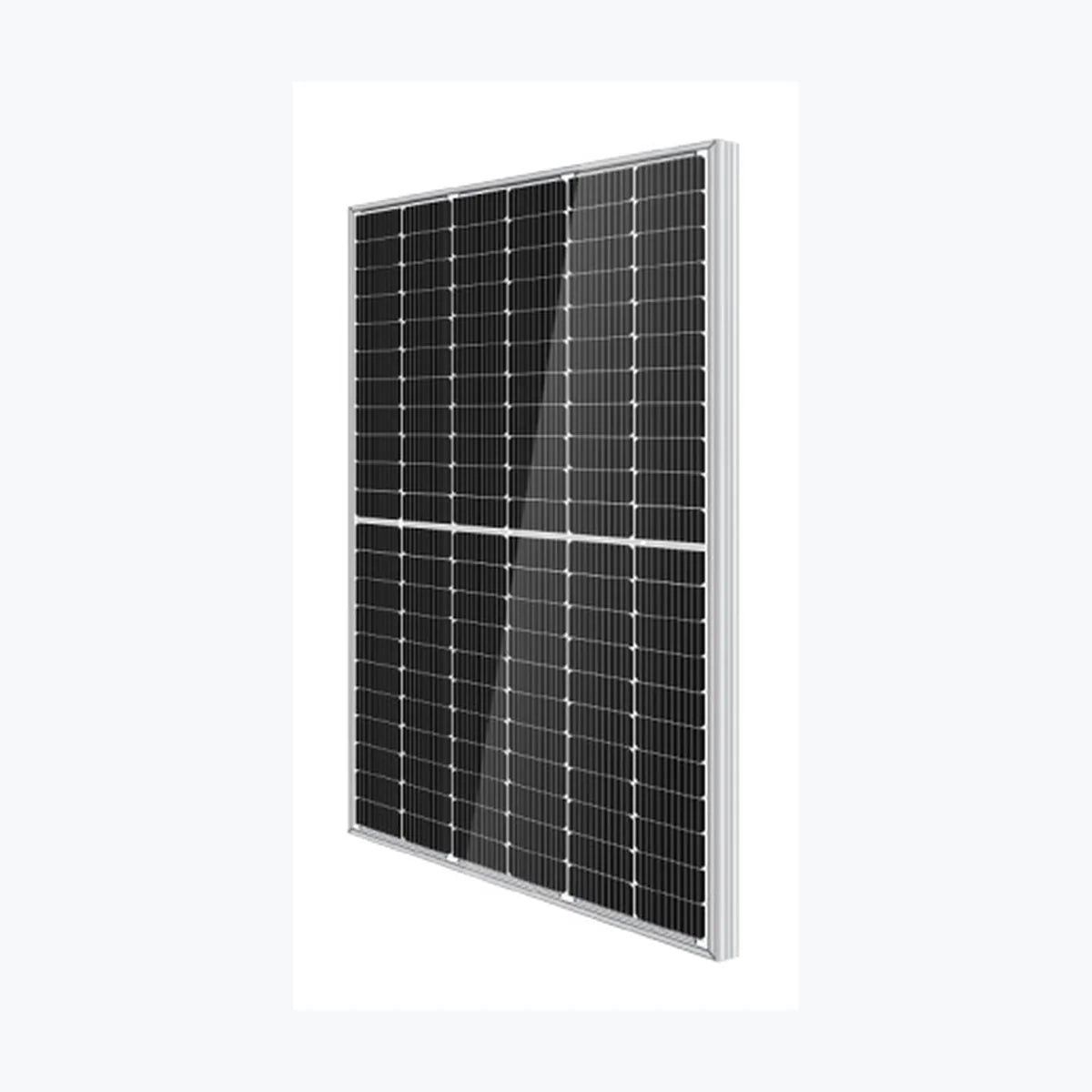

    JS Solar 490

    JS Solar 490

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9766
    • Container price: $37.80 USD
    • Container qty: 720
    • Odoo id: 24,460
    • Pallet price: $1.78 USD
    • Pallet qty: 30
    • Unit price: $0.07 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 490 Product Warranty 25 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 490 Wp Voltage at Maximum Power (Vmpp) 37.3 V Current at Maximum Power (Impp) 13.14 A Open Circuit Voltage (Voc) 44.8 V Short Circuit Current (Isc) 13.7 A Panel Efficiency 20.6 % Maximum Power (Pmax) 360 Wp Voltage at Maximum Power (Vmpp) 34.8 V Current at Maximum Power (Impp) 10.35 A Open Circuit Voltage (Voc) 41.9 V Short Circuit Current (Isc) 11.07 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2094x1134x30 mm Weight 26 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossectio

      Power Range: 485 ~ 510 Wp
      Panel Efficiency: 20.42 ~ 21.47 %
      Weight: 26 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
