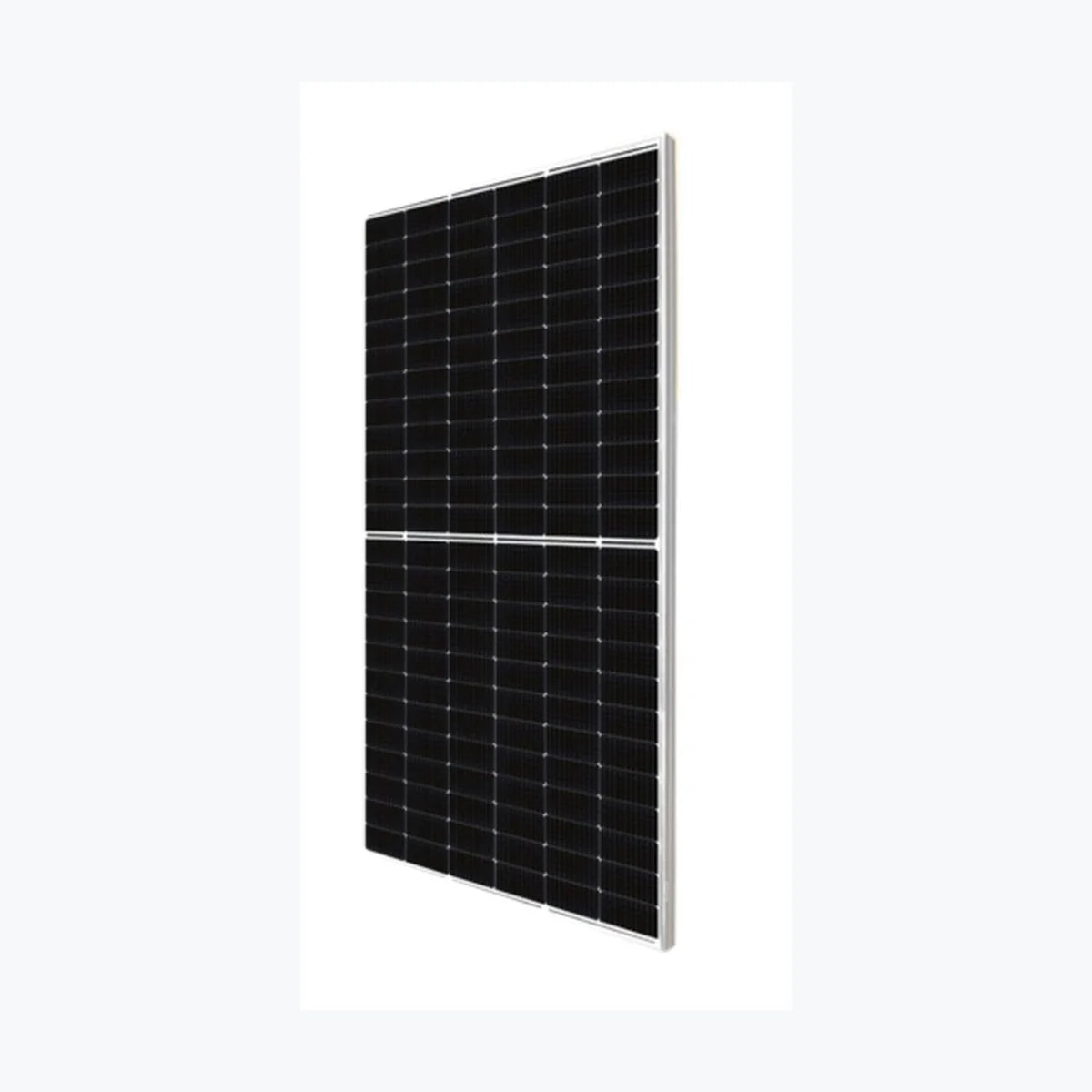

JS Solar 525
JS Solar 525
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-9771
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 525 Product Warranty 25 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 525 Wp Voltage at Maximum Power (Vmpp) 41 V Current at Maximum Power (Impp) 12.8 A Open Circuit Voltage (Voc) 49.2 V Short Circuit Current (Isc) 13.5 A Panel Efficiency nill Maximum Power (Pmax) 395 Wp Voltage at Maximum Power (Vmpp) 38.22 V Current at Maximum Power (Impp) 10.35 A Open Circuit Voltage (Voc) 45.9 V Short Circuit Current (Isc) 10.91 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 26.5 kg Cell Number 144 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Power Range: 525 ~ 550 Wp
Panel Efficiency: 20.89 ~ 21.28 %
Weight: 26.5 kg
Seller: Yixing JS Solar Co., Ltd
Country: China -
