1 0

    In Stock

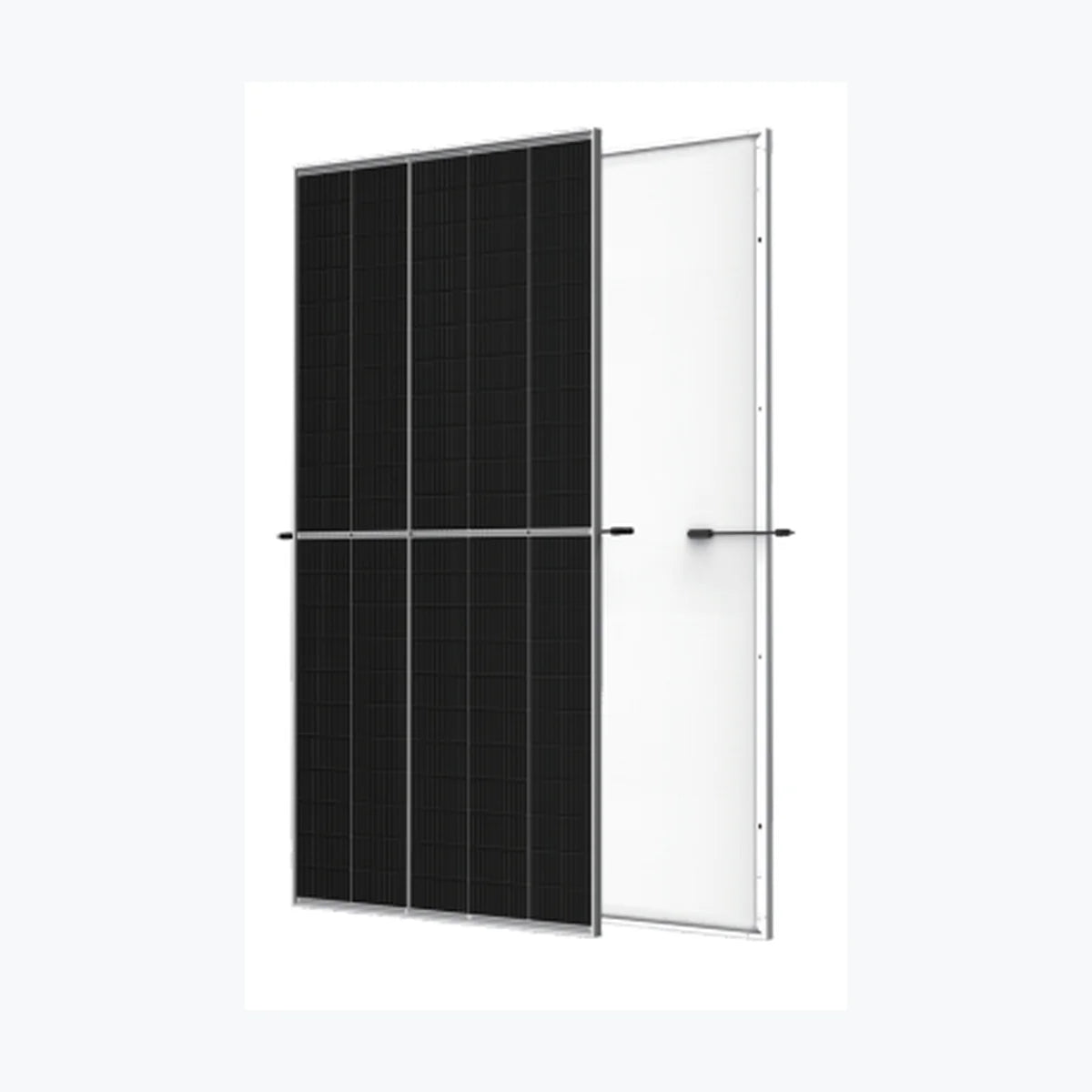

    JS Solar 560

    JS Solar 560

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9778
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,539
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 560 Product Warranty 25 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 560 Wp Voltage at Maximum Power (Vmpp) 32 V Current at Maximum Power (Impp) 17.49 A Open Circuit Voltage (Voc) 38.3 V Short Circuit Current (Isc) 18.6 A Panel Efficiency 21.4 % Maximum Power (Pmax) 424 Wp Voltage at Maximum Power (Vmpp) 29.7 V Current at Maximum Power (Impp) 14.26 A Open Circuit Voltage (Voc) 36.1 V Short Circuit Current (Isc) 14.99 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2384x1096x35 mm Weight 28.6 kg Cell Number 110 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossectio

      Power Range: 540 ~ 560 Wp
      Panel Efficiency: 20.7 ~ 21.4 %
      Weight: 28.6 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
