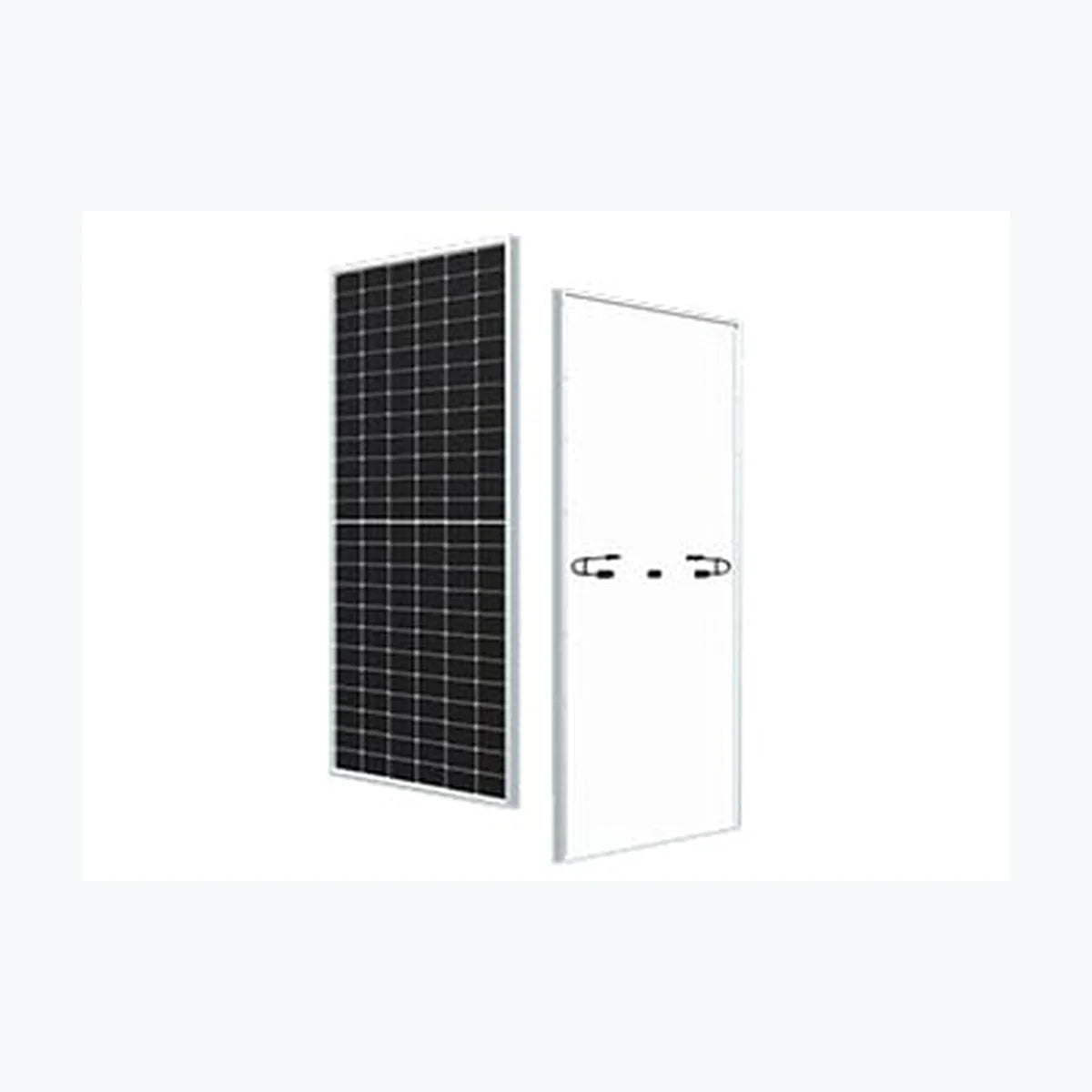

JS Solar 580
PayPal Pay in 4 interest-free payments of $50.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-9782
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. 580 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 580 Wp Voltage at Maximum Power (Vmpp) 43.4 V Current at Maximum Power (Impp) 13.37 A Open Circuit Voltage (Voc) 52.1 V Short Circuit Current (Isc) 14.07 A Panel Efficiency 22.45 % Maximum Power (Pmax) 437 Wp Voltage at Maximum Power (Vmpp) 40.86 V Current at Maximum Power (Impp) 10.7 A Open Circuit Voltage (Voc) 49.5 V Short Circuit Current (Isc) 11.26 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 26.5 kg Cell Size 182×182 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable
Technology: TOPCon
Power Range: 565 ~ 580 Wp
Panel Efficiency: 21.87 ~ 22.45 %
Weight: 26.5 kg
Seller Name: Yixing JS Solar Co., Ltd
Country: China
| SKU | PES-SPS-SOL-9782 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
