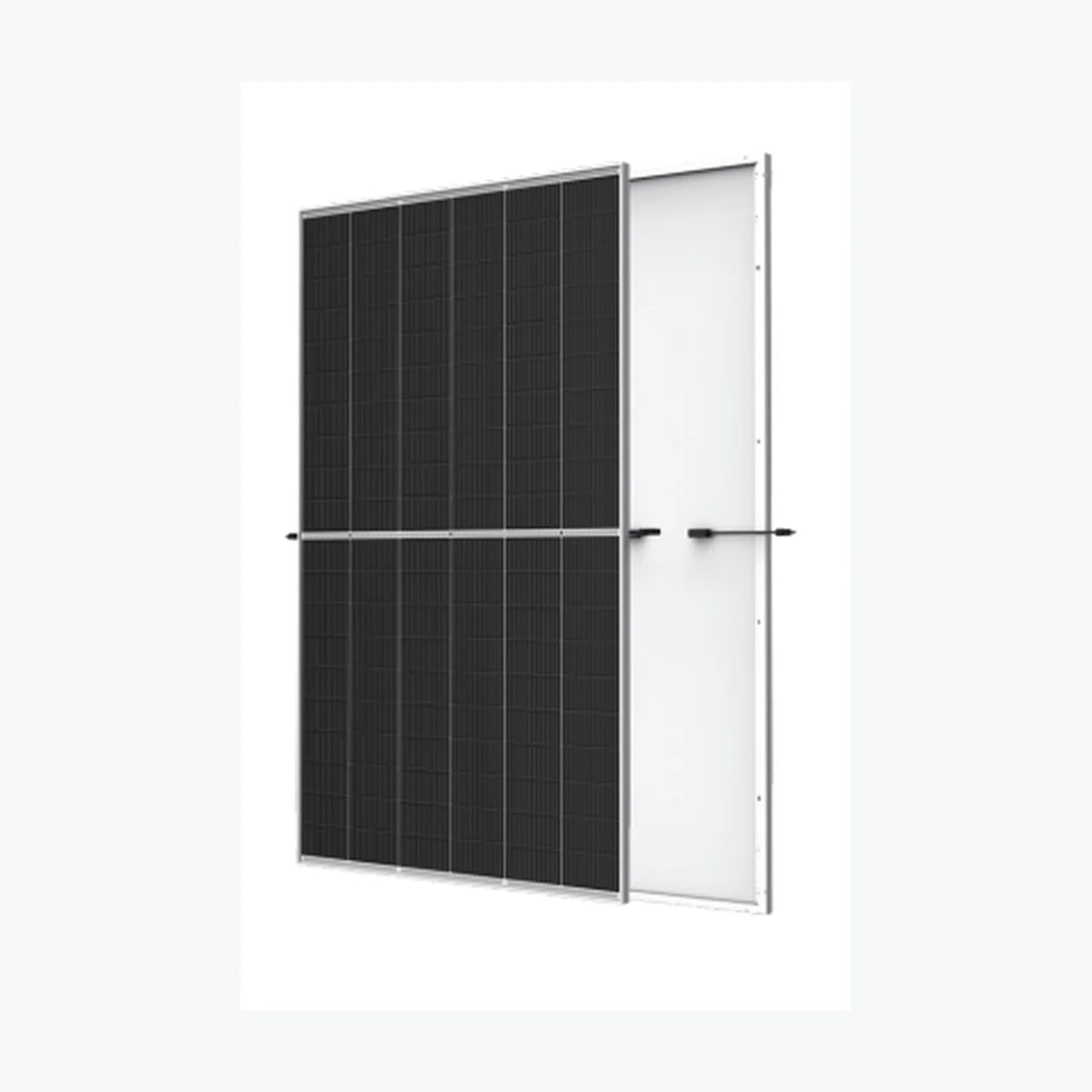

    JS Solar 590

    JS Solar 590

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9784
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,572
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 590 Product Warranty 25 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 590 Wp Voltage at Maximum Power (Vmpp) 33.7 V Current at Maximum Power (Impp) 17.4 A Open Circuit Voltage (Voc) 41.1 V Short Circuit Current (Isc) 18.42 A Panel Efficiency 20.8 % Maximum Power (Pmax) 447 Wp Voltage at Maximum Power (Vmpp) 31.7 V Current at Maximum Power (Impp) 14.09 A Open Circuit Voltage (Voc) 38.7 V Short Circuit Current (Isc) 14.85 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 30.6 kg Cell Number 120 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossect

      Power Range: 585 ~ 605 Wp
      Panel Efficiency: 20.7 ~ 21.4 %
      Weight: 30.6 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
