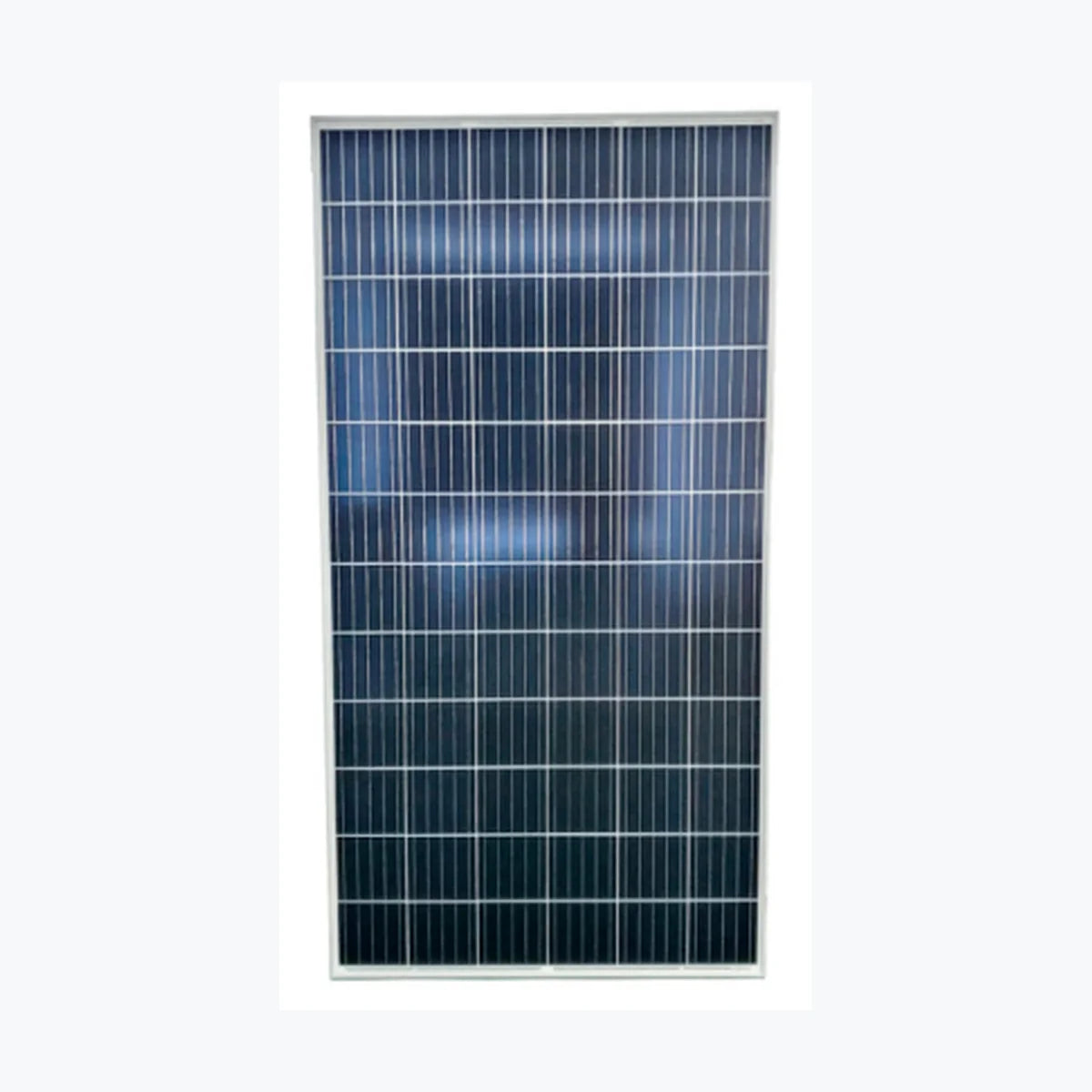

    JS Solar JS390M

    JS Solar JS390M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9824
    • Container price: $81.00 USD
    • Container qty: 720
    • Odoo id: 24,194
    • Pallet price: $3.82 USD
    • Pallet qty: 30
    • Unit price: $0.15 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JS390M Product Warranty 10 Years Power Warranty 25 Years of 80.2 % Total Degradation Rate ⏳ 0.79 % Maximum Power (Pmax) 390 Wp Voltage at Maximum Power (Vmpp) 39.5 V Current at Maximum Power (Impp) 9.88 A Open Circuit Voltage (Voc) 47.14 V Short Circuit Current (Isc) 10.25 A Panel Efficiency 19.69 % Temperature 42±2 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.34 %/°C Temperature Coefficient of Isc 0.06 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1979x1002x35 mm Weight 23.55 kg Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datasheet

      Power Range: 380 ~ 400 Wp
      Panel Efficiency: 19.18 ~ 21.17 %
      Weight: 23.55 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
