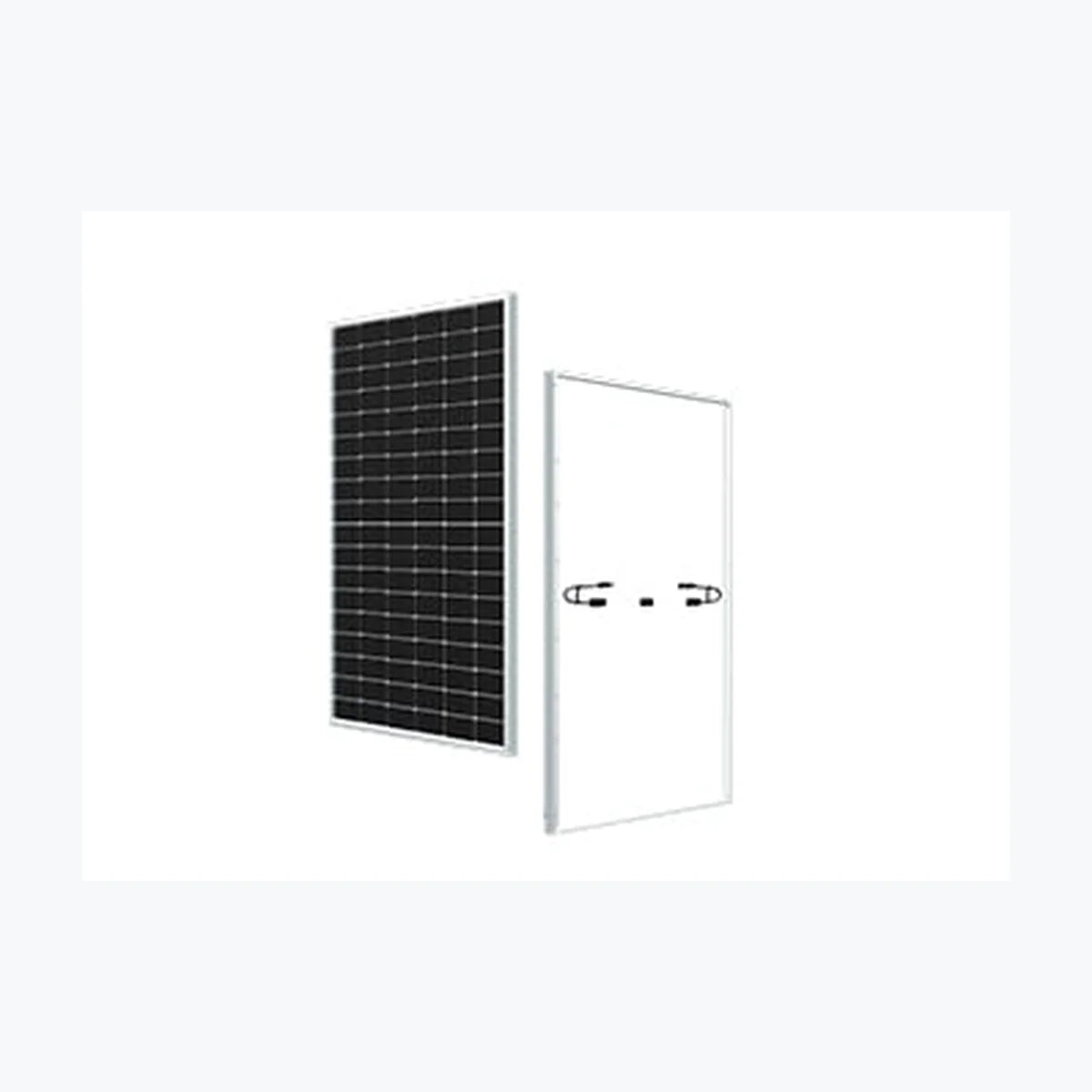

    JS Solar JS410M108

    JS Solar JS410M108

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9830
    • Container price: $37.80 USD
    • Container qty: 720
    • Odoo id: 24,782
    • Pallet price: $1.78 USD
    • Pallet qty: 30
    • Unit price: $0.07 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JS410M108 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 410 Wp Voltage at Maximum Power (Vmpp) 31.08 V Current at Maximum Power (Impp) 13.19 A Open Circuit Voltage (Voc) 37.44 V Short Circuit Current (Isc) 13.75 A Panel Efficiency 20.97 % Maximum Power (Pmax) 304 Wp Voltage at Maximum Power (Vmpp) 28.09 V Current at Maximum Power (Impp) 10.52 A Open Circuit Voltage (Voc) 34.07 V Short Circuit Current (Isc) 10.89 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 19 kg Cell Size 182×182 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cab

      Technology: PERC
      Power Range: 405 ~ 420 Wp
      Panel Efficiency: 20.97 ~ 21.7 %
      Weight: 19 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
