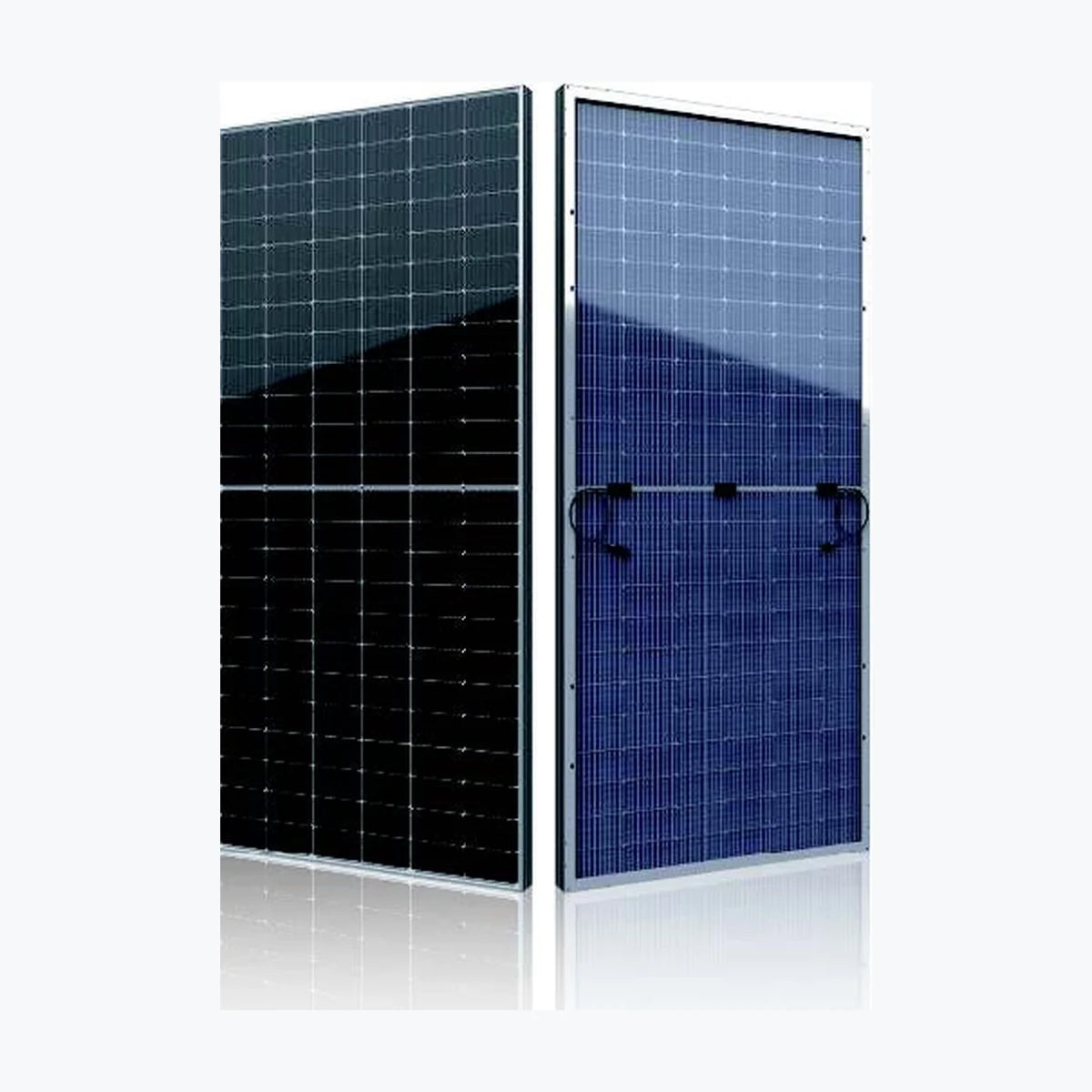

JS Solar JS540M144BDG
PayPal Pay in 4 interest-free payments of $47.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-9848
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. JS540M144BDG Product Warranty 15 Years Power Warranty 30 Years of 85 % Total Degradation Rate ⏳ 0.5 % Maximum Power (Pmax) 540 Wp Voltage at Maximum Power (Vmpp) 41.16 V Current at Maximum Power (Impp) 13.12 A Open Circuit Voltage (Voc) 49.59 V Short Circuit Current (Isc) 13.97 A Panel Efficiency 20.9 % Maximum Power (Pmax) 409 Wp Voltage at Maximum Power (Vmpp) 39.22 V Current at Maximum Power (Impp) 10.44 A Open Circuit Voltage (Voc) 46.95 V Short Circuit Current (Isc) 11.31 A Temperature 42±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.335 %/°C Temperature Coefficient of Voc -0.269 %/°C Temperature Coefficient of Isc 0.063 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32 kg Cell Number 144 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1300 mm
Technology: Bifacial, PERC
Power Range: 535 ~ 550 Wp
Panel Efficiency: 20.71 ~ 21.29 %
Weight: 32 kg
Seller Name: Yixing JS Solar Co., Ltd
Country: China
| SKU | PES-SPS-SOL-9848 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
