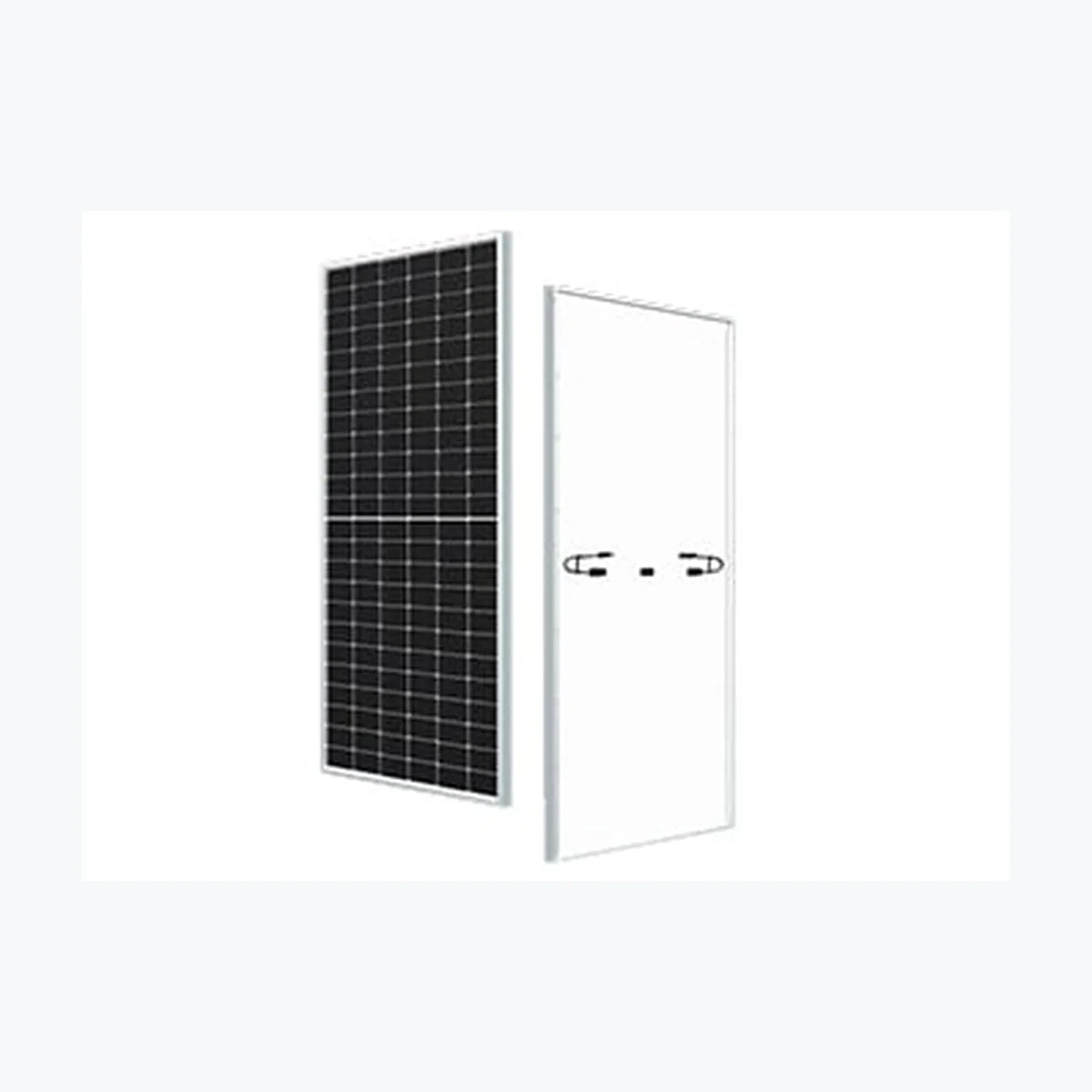

    JS Solar JS545M144

    JS Solar JS545M144

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9849
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,802
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JS545M144 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 41.8 V Current at Maximum Power (Impp) 13.04 A Open Circuit Voltage (Voc) 49.6 V Short Circuit Current (Isc) 13.9 A Panel Efficiency 21.1 % Maximum Power (Pmax) 409 Wp Voltage at Maximum Power (Vmpp) 38.41 V Current at Maximum Power (Impp) 10.65 A Open Circuit Voltage (Voc) 46.32 V Short Circuit Current (Isc) 11.23 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 27 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2

      Technology: PERC
      Power Range: 540 ~ 555 Wp
      Panel Efficiency: 20.9 ~ 21.48 %
      Weight: 27 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
