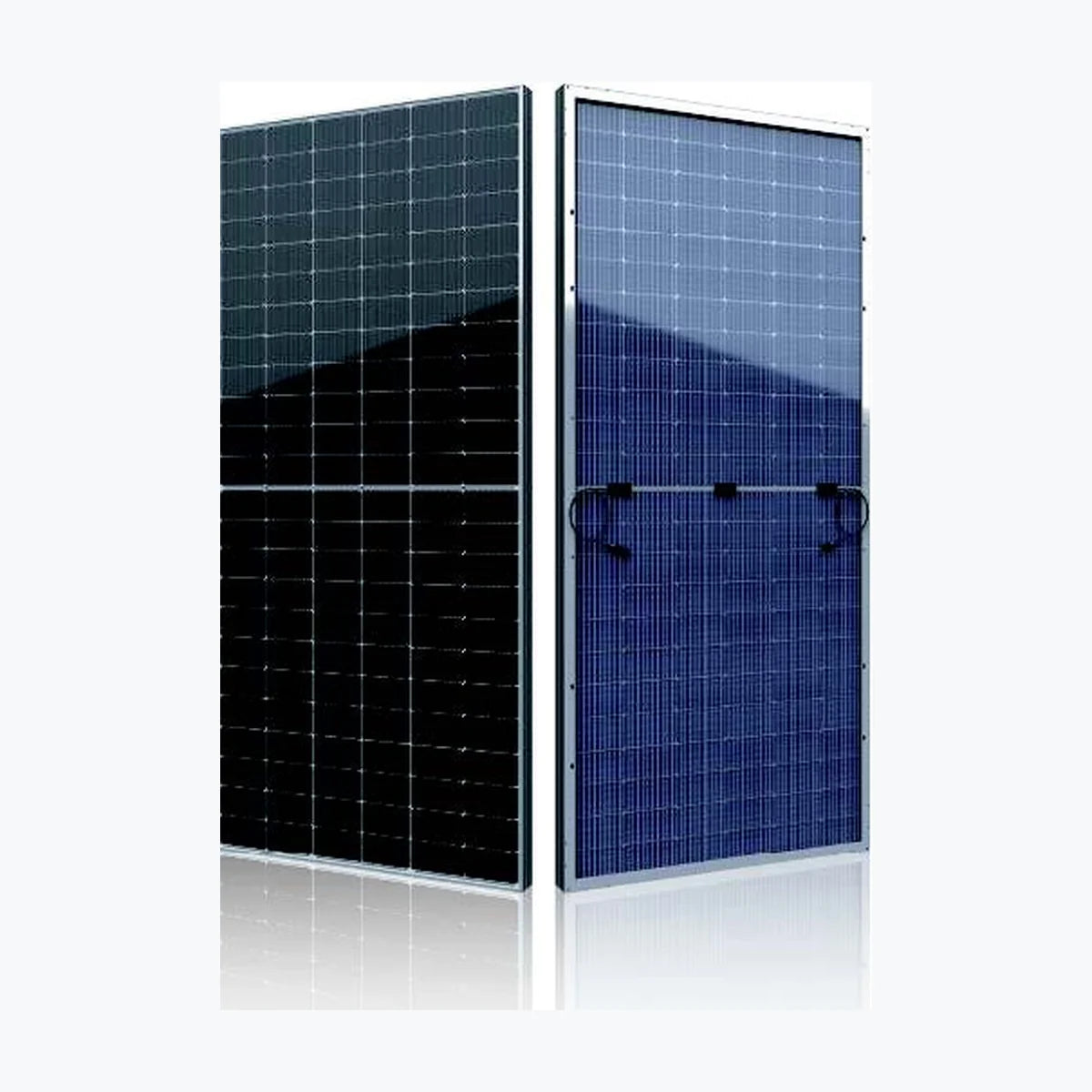

    JS Solar JS545M144BDG

    JS Solar JS545M144BDG

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9850
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,825
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JS545M144BDG Product Warranty 15 Years Power Warranty 30 Years of 85 % Total Degradation Rate ⏳ 0.5 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 41.32 V Current at Maximum Power (Impp) 13.19 A Open Circuit Voltage (Voc) 49.74 V Short Circuit Current (Isc) 14.04 A Panel Efficiency 21.1 % Maximum Power (Pmax) 413 Wp Voltage at Maximum Power (Vmpp) 39.37 V Current at Maximum Power (Impp) 10.5 A Open Circuit Voltage (Voc) 47.09 V Short Circuit Current (Isc) 11.37 A Temperature 42±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.335 %/°C Temperature Coefficient of Voc -0.269 %/°C Temperature Coefficient of Isc 0.063 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32 kg Cell Number 144 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1300 mm

      Technology: Bifacial, PERC
      Power Range: 535 ~ 550 Wp
      Panel Efficiency: 20.71 ~ 21.29 %
      Weight: 32 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
