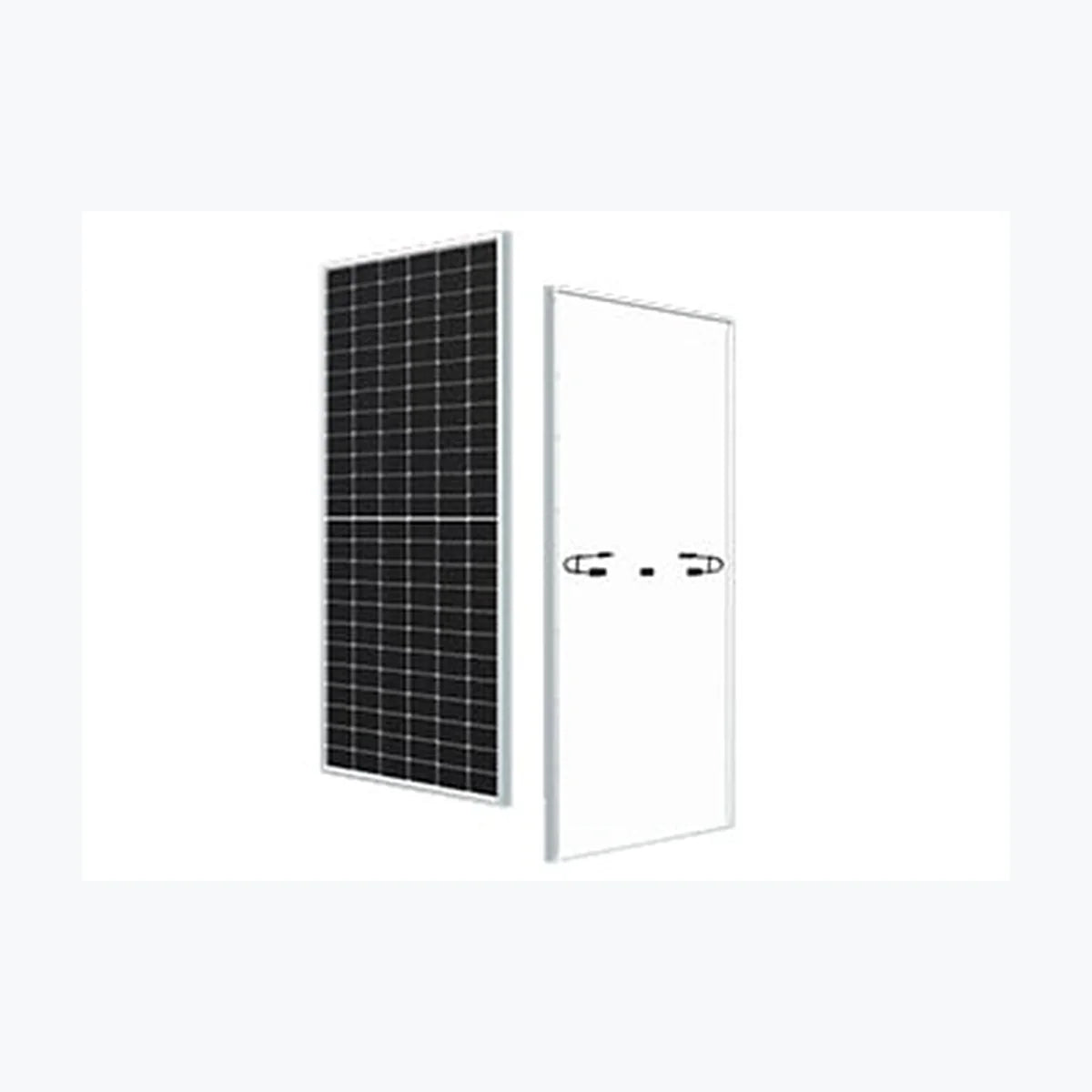

    JS Solar JS550M144

    JS Solar JS550M144

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-9851
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,803
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JS550M144 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 550 Wp Voltage at Maximum Power (Vmpp) 42.05 V Current at Maximum Power (Impp) 13.08 A Open Circuit Voltage (Voc) 49.7 V Short Circuit Current (Isc) 14 A Panel Efficiency 21.29 % Maximum Power (Pmax) 414 Wp Voltage at Maximum Power (Vmpp) 38.58 V Current at Maximum Power (Impp) 10.73 A Open Circuit Voltage (Voc) 46.4 V Short Circuit Current (Isc) 11.32 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 27 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2

      Technology: PERC
      Power Range: 540 ~ 555 Wp
      Panel Efficiency: 20.9 ~ 21.48 %
      Weight: 27 kg
      Seller Name: Yixing JS Solar Co., Ltd
      Country: China
