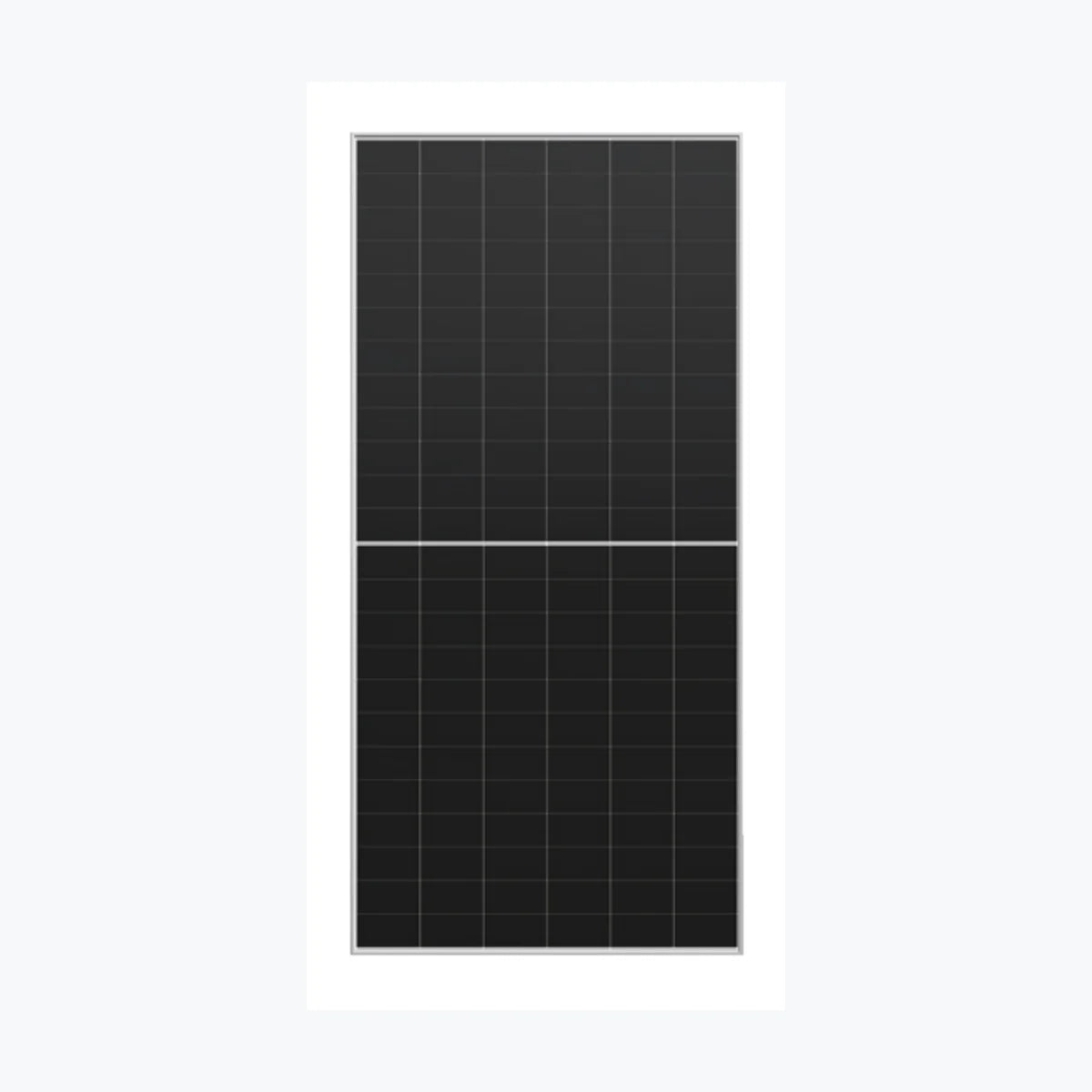

Just Solar JST-FCMH-655W-HD
PayPal Pay in 4 interest-free payments of $57.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-10872
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. JST-FCMH-655W-HD Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 655 Wp Voltage at Maximum Power (Vmpp) 44.66 V Current at Maximum Power (Impp) 14.67 A Open Circuit Voltage (Voc) 54 V Short Circuit Current (Isc) 15.37 A Panel Efficiency 24.2 % Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.260 %/°C Temperature Coefficient of Voc -0.200 %/°C Temperature Coefficient of Isc +0.050 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 33.5 kg Cell Size 182×91 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2.0 mm Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Technology: Bifacial, Back Contact
Power Range: 650 ~ 680 Wp
Panel Efficiency: 24.1 ~ 25.2 %
Weight: 33.5 kg
Seller Name: Just Solar Group Limited
Country: China
| SKU | PES-SPS-SOL-10872 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number | |
| Wattage |
No documents available for this product. Contact us to request documentation.
