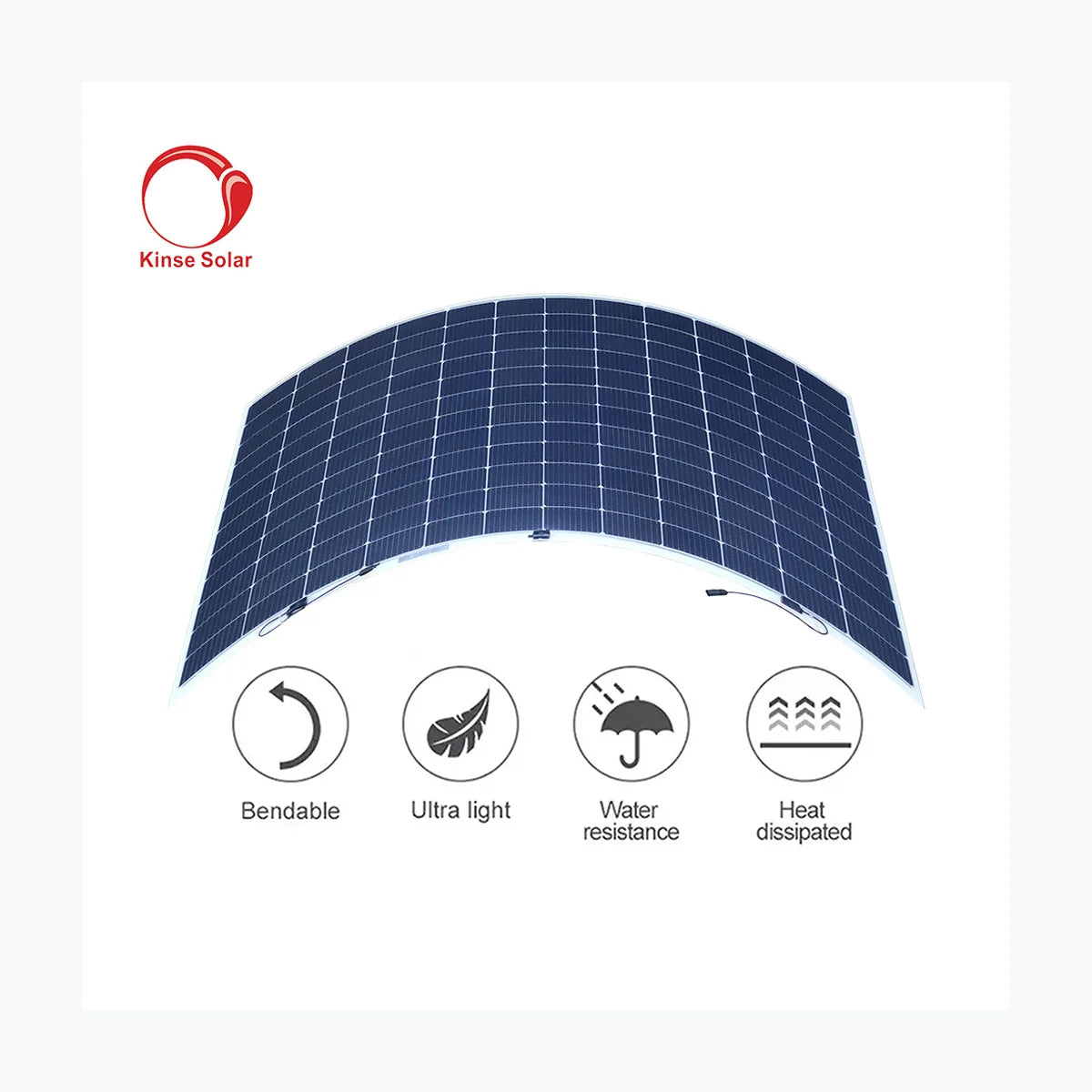

Kinse Solar KS480-132-M182-FL
PayPal Pay in 4 interest-free payments of $42.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-11266
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. KS480-132-M182-FL Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 480 Wp Voltage at Maximum Power (Vmpp) 37.78 V Current at Maximum Power (Impp) 12.71 A Open Circuit Voltage (Voc) 45.01 V Short Circuit Current (Isc) 13.72 A Panel Efficiency 19.57 % Maximum Power (Pmax) 361 Wp Voltage at Maximum Power (Vmpp) 34.99 V Current at Maximum Power (Impp) 10.33 A Open Circuit Voltage (Voc) 41.68 V Short Circuit Current (Isc) 11.09 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2246x1092x2.5 mm Weight 7.4 kg Cell Size 182×91 mm Cell Number 132 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Technology: Flexible
Power Range: 465 ~ 485 Wp
Panel Efficiency: 18.96 ~ 19.77 %
Weight: 7.4 kg
Seller Name: Maanshan Kinse Energy Technology Co., Ltd
Country: China
| SKU | PES-SPS-SOL-11266 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
