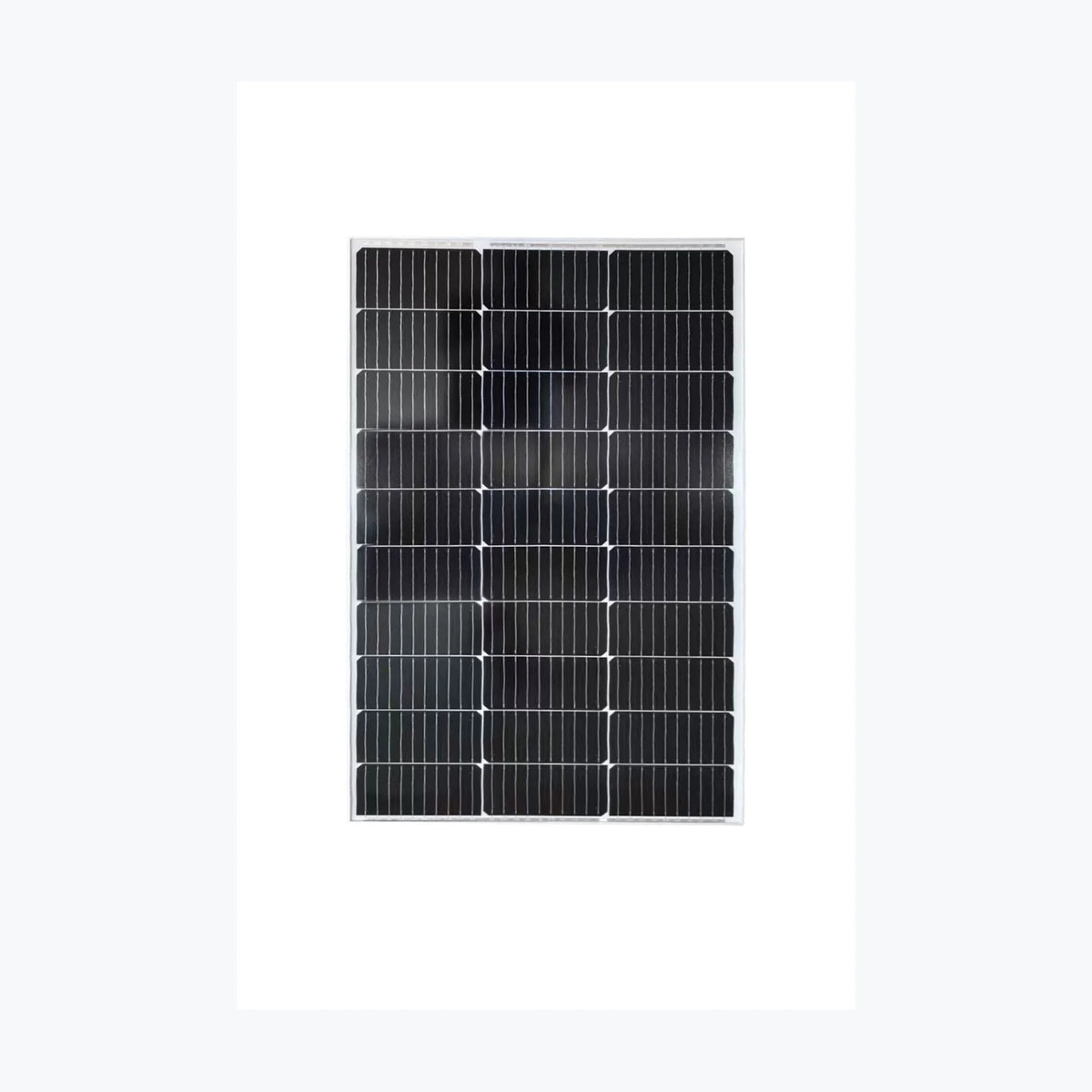

    LinkSol 105

    LinkSol 105

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-11697
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 105 Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 105 Wp Voltage at Maximum Power (Vmpp) 18.2 V Current at Maximum Power (Impp) 5.77 A Open Circuit Voltage (Voc) 21.8 V Short Circuit Current (Isc) 6.24 A Panel Efficiency 15.7 % Panel Dimension (H/W/D) 1000x670x30 mm Weight 6.5 kg Cell Number 36 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Aluminium Junction Box Diodes 2 Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 2.5 mm2 Download Manufacturer's PDF Datasheet

      Power Range: 100 ~ 115 Wp
      Panel Efficiency: 15 ~ 17.2 %
      Weight: 6.5 kg
      Seller Name: Shanghai LinkSol New Energy Co., Ltd
      Country: China
