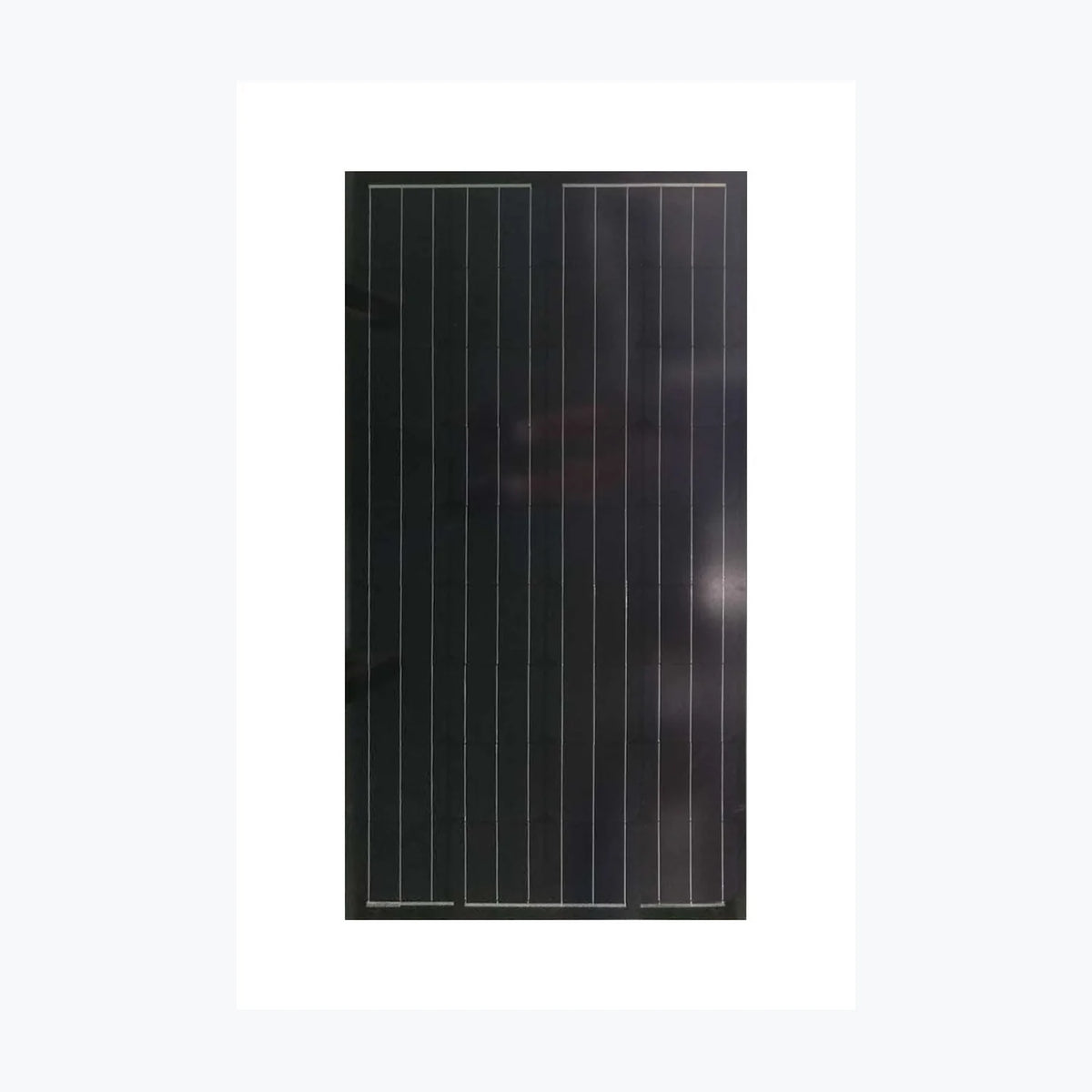

    LinkSol 190

    LinkSol 190

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-11707
    • Container price: $59.40 USD
    • Container qty: 720
    • Pallet price: $2.80 USD
    • Pallet qty: 30
    • Unit price: $0.11 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 190 Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 190 Wp Voltage at Maximum Power (Vmpp) 24.3 V Current at Maximum Power (Impp) 7.82 A Open Circuit Voltage (Voc) 29.4 V Short Circuit Current (Isc) 8.45 A Panel Efficiency 14.6 % Panel Dimension (H/W/D) 1320x992x35 mm Weight 12.8 kg Cell Number 48 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Power Range: 190 ~ 244 Wp
      Panel Efficiency: 14.6 ~ 18.8 %
      Weight: 12.8 kg
      Seller Name: Shanghai LinkSol New Energy Co., Ltd
      Country: China
