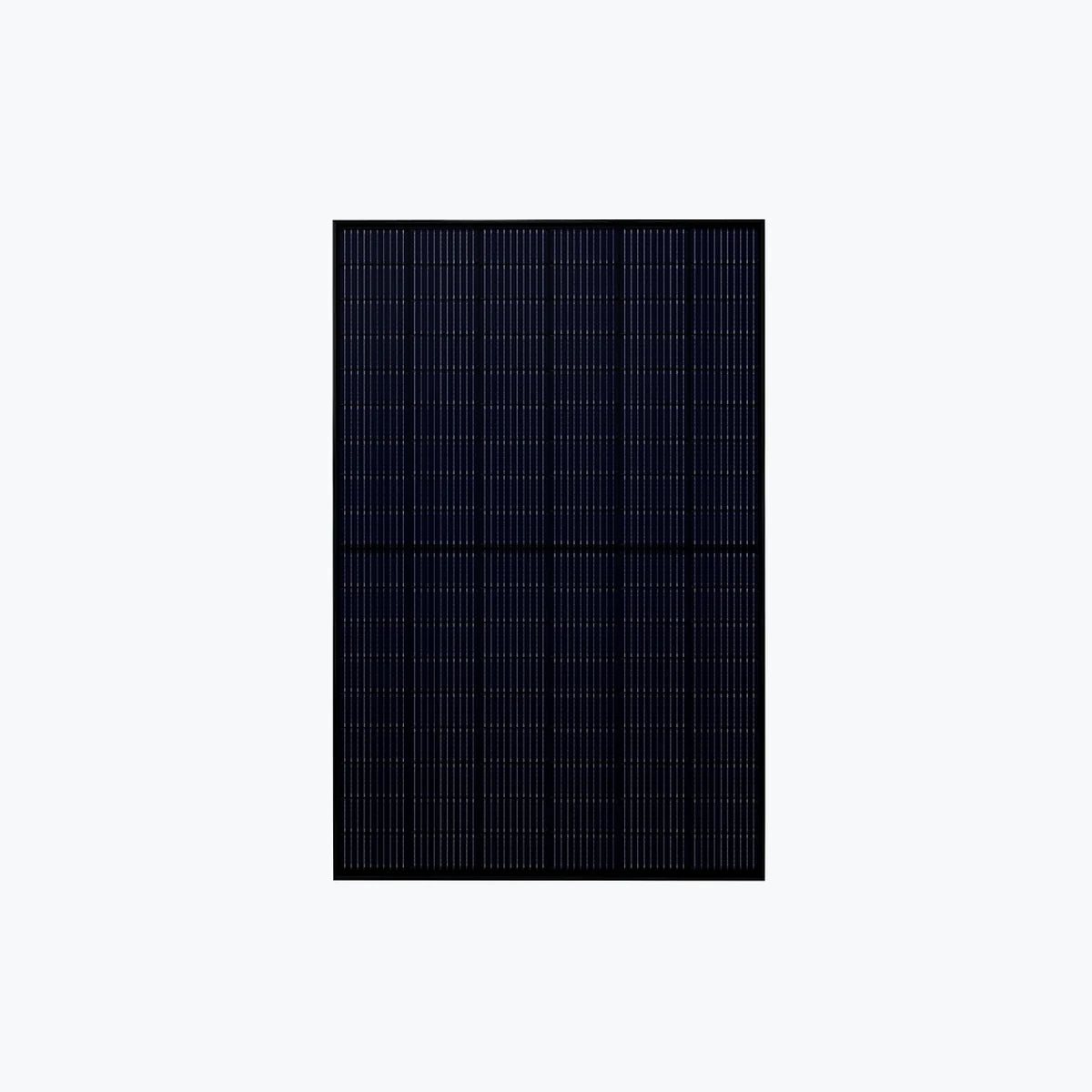

Lu'an Solar JKL108-B-425NH
PayPal Pay in 4 interest-free payments of $37.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-11768
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. JKL108-B-425NH Product Warranty 15 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 425 Wp Voltage at Maximum Power (Vmpp) 31.74 V Current at Maximum Power (Impp) 13.39 A Open Circuit Voltage (Voc) 38.38 V Short Circuit Current (Isc) 14.12 A Panel Efficiency 24.83 % Maximum Power (Pmax) 320 Wp Voltage at Maximum Power (Vmpp) 29.53 V Current at Maximum Power (Impp) 10.84 A Open Circuit Voltage (Voc) 36.41 V Short Circuit Current (Isc) 11.44 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 22 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 350 mm Download M
Technology: TOPCon, N-type
Power Range: 420 ~ 440 Wp
Panel Efficiency: 24.52 ~ 25.53 %
Weight: 22 kg
Seller Name: Shanxi Lu'an Photovoltaics Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-11768 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
