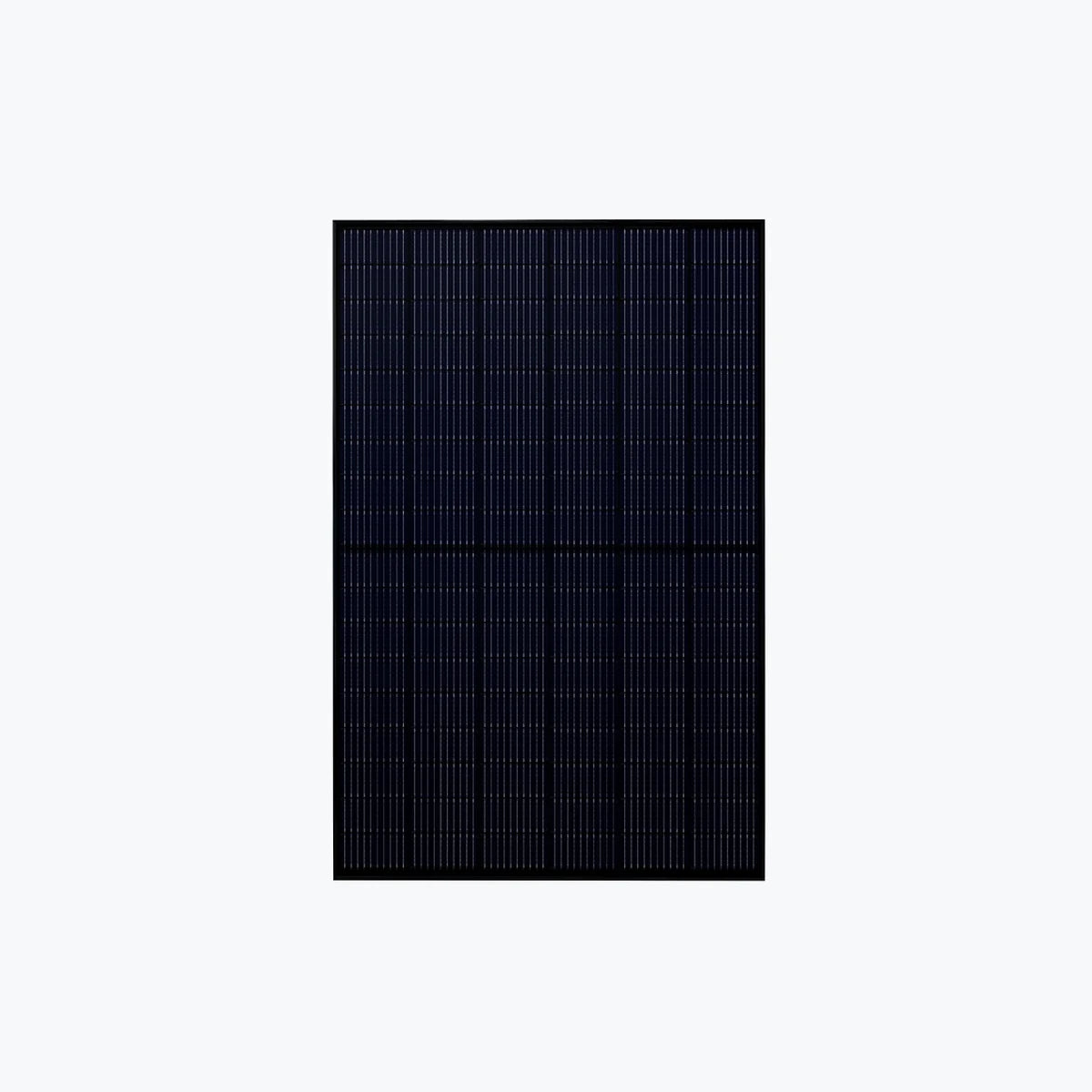

    Lu'an Solar JKL108-B-435NH

    Lu'an Solar JKL108-B-435NH

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-11772
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JKL108-B-435NH Product Warranty 15 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 32.13 V Current at Maximum Power (Impp) 13.544 A Open Circuit Voltage (Voc) 38.75 V Short Circuit Current (Isc) 14.27 A Panel Efficiency 25.31 % Maximum Power (Pmax) 328 Wp Voltage at Maximum Power (Vmpp) 29.84 V Current at Maximum Power (Impp) 10.99 A Open Circuit Voltage (Voc) 36.78 V Short Circuit Current (Isc) 11.58 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 22 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 350 mm Download

      Technology: TOPCon, N-type
      Power Range: 420 ~ 440 Wp
      Panel Efficiency: 24.52 ~ 25.53 %
      Weight: 22 kg
      Seller Name: Shanxi Lu'an Photovoltaics Technology Co., Ltd.
      Country: China
