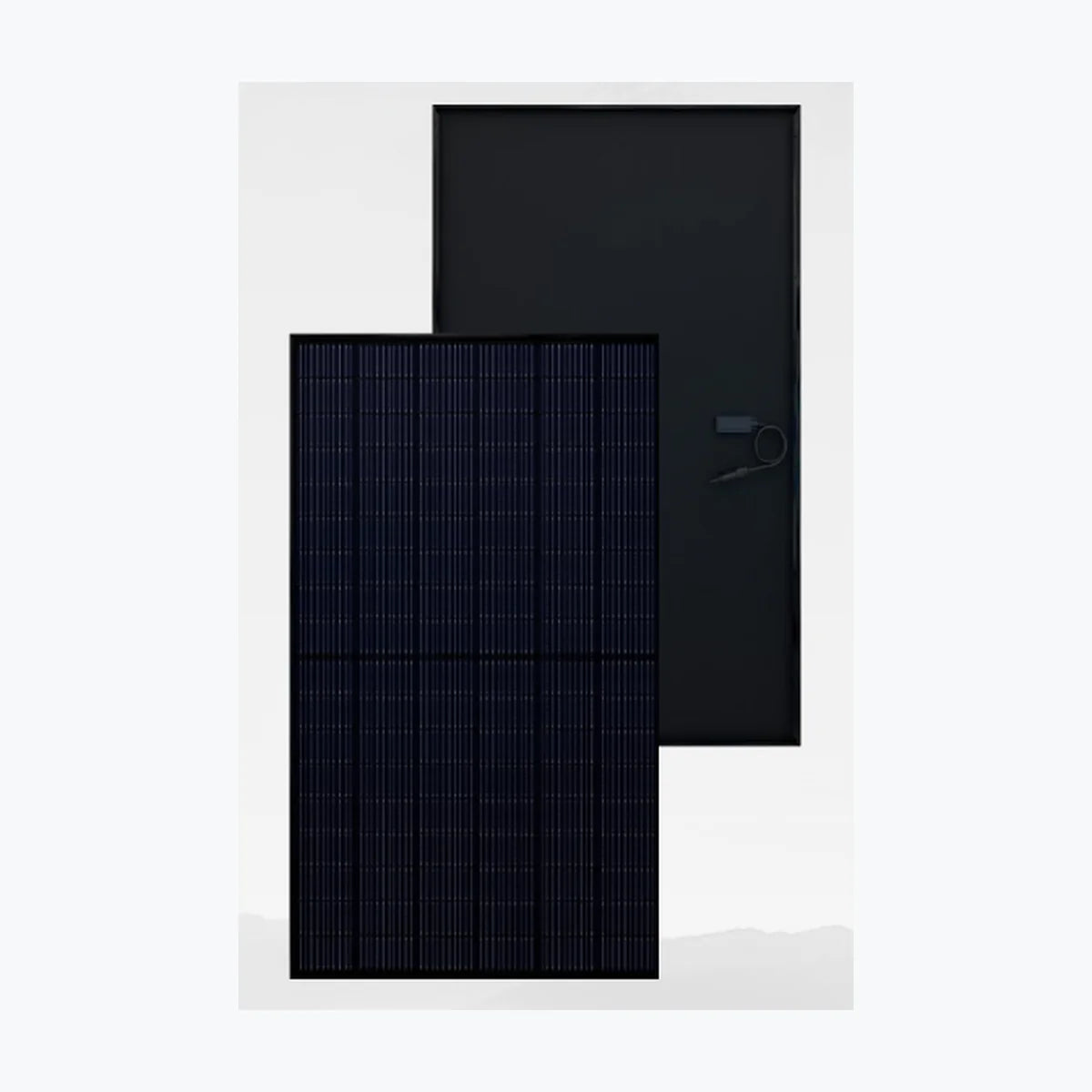

Lu'an Solar JKL108-B-445NH
Lu'an Solar JKL108-B-445NH
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-11775
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. JKL108-B-445NH Product Warranty 15 Years Power Warranty 20 Years of 91.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 445 Wp Voltage at Maximum Power (Vmpp) 32.9 V Current at Maximum Power (Impp) 13.51 A Open Circuit Voltage (Voc) 39.5 V Short Circuit Current (Isc) 14.22 A Panel Efficiency 25.4 % Maximum Power (Pmax) 336 Wp Voltage at Maximum Power (Vmpp) 31.03 V Current at Maximum Power (Impp) 10.83 A Open Circuit Voltage (Voc) 37.55 V Short Circuit Current (Isc) 11.3 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 22 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 J
Technology: TOPCon, N-type
Power Range: 425 ~ 445 Wp
Panel Efficiency: 24.76 ~ 25.4 %
Weight: 22 kg
Seller Name: Shanxi Lu'an Photovoltaics Technology Co., Ltd.
Country: China -
