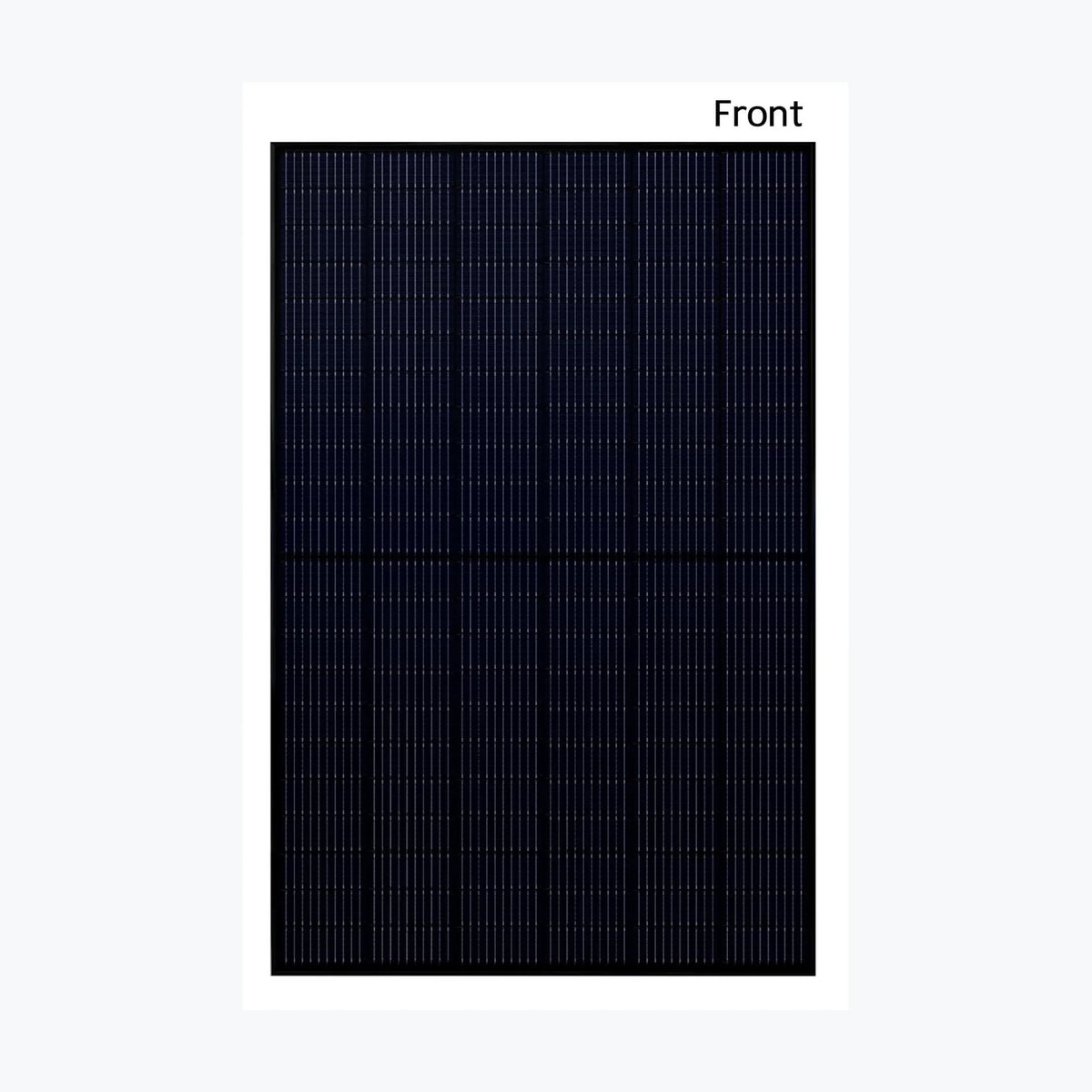

Lu'an Solar JKL132-B-510MH
PayPal Pay in 4 interest-free payments of $44.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-11785
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. JKL132-B-510MH Product Warranty 12 Years Power Warranty 15 Years of 93.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 510 Wp Voltage at Maximum Power (Vmpp) 37.87 V Current at Maximum Power (Impp) 13.47 A Open Circuit Voltage (Voc) 46.05 V Short Circuit Current (Isc) 14.01 A Panel Efficiency 23.51 % Maximum Power (Pmax) 386 Wp Voltage at Maximum Power (Vmpp) 36.45 V Current at Maximum Power (Impp) 10.8 A Open Circuit Voltage (Voc) 43.81 V Short Circuit Current (Isc) 11.02 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.051 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x30 mm Weight 26 kg Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diode
Technology: PERC, TOPCon, N-type
Power Range: 490 ~ 510 Wp
Panel Efficiency: 22.61 ~ 23.51 %
Weight: 26 kg
Seller Name: Shanxi Lu'an Photovoltaics Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-11785 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
