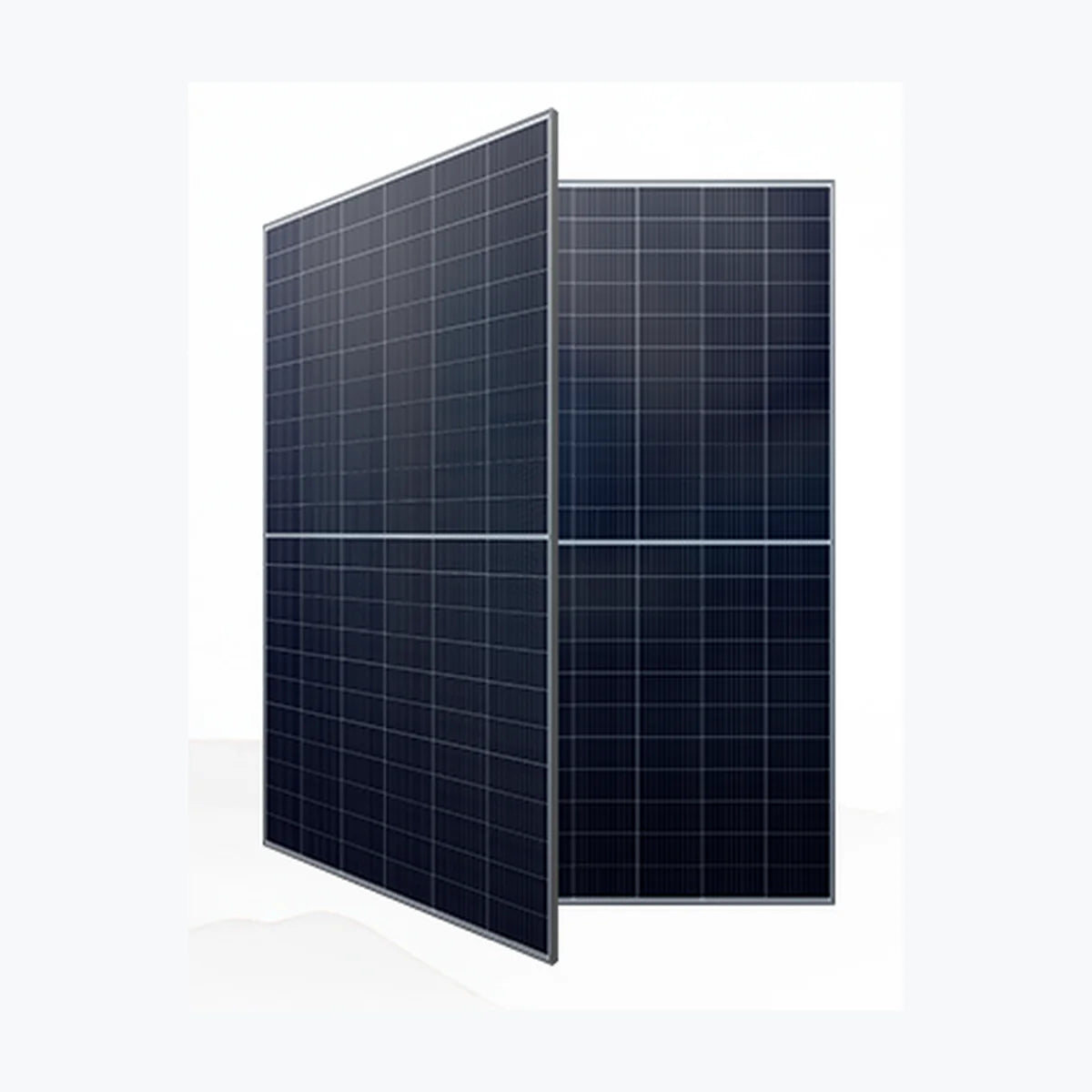

    Lu'an Solar JKL132-C-655MH

    Lu'an Solar JKL132-C-655MH

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-11793
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JKL132-C-655MH Product Warranty 15 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 655 Wp Voltage at Maximum Power (Vmpp) 37.59 V Current at Maximum Power (Impp) 17.43 A Open Circuit Voltage (Voc) 45.49 V Short Circuit Current (Isc) 18.49 A Panel Efficiency 23.09 % Maximum Power (Pmax) 496 Wp Voltage at Maximum Power (Vmpp) 35.09 V Current at Maximum Power (Impp) 14.14 A Open Circuit Voltage (Voc) 42.79 V Short Circuit Current (Isc) 14.88 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.051 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 33 kg Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3

      Technology: PERC
      Power Range: 650 ~ 670 Wp
      Panel Efficiency: 22.92 ~ 23.57 %
      Weight: 33 kg
      Seller Name: Shanxi Lu'an Photovoltaics Technology Co., Ltd.
      Country: China
