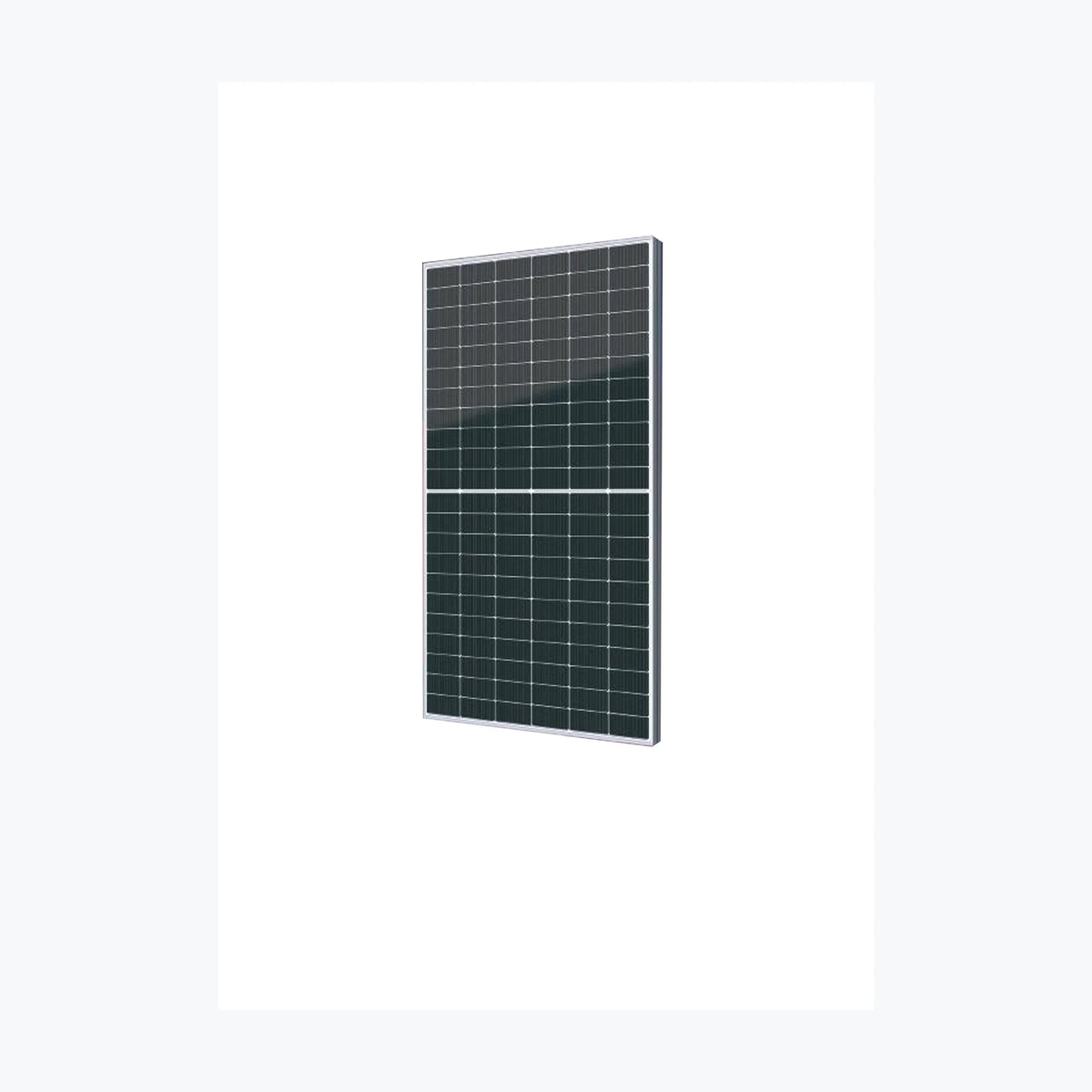

    Lu'an Solar JKL132-C-690NB

    Lu'an Solar JKL132-C-690NB

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-11802
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JKL132-C-690NB Product Warranty 15 Years Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 690 Wp Voltage at Maximum Power (Vmpp) 38.7 V Current at Maximum Power (Impp) 17.94 A Open Circuit Voltage (Voc) 46.96 V Short Circuit Current (Isc) 18.72 A Panel Efficiency 25.3 % Maximum Power (Pmax) 531 Wp Voltage at Maximum Power (Vmpp) 38.72 V Current at Maximum Power (Impp) 13.72 A Open Circuit Voltage (Voc) 45.13 V Short Circuit Current (Isc) 14.41 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 39 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer

      Technology: Bifacial, TOPCon, N-type
      Power Range: 670 ~ 720 Wp
      Panel Efficiency: 25.1 ~ 25.6 %
      Weight: 39 kg
      Seller Name: Shanxi Lu'an Photovoltaics Technology Co., Ltd.
      Country: China
