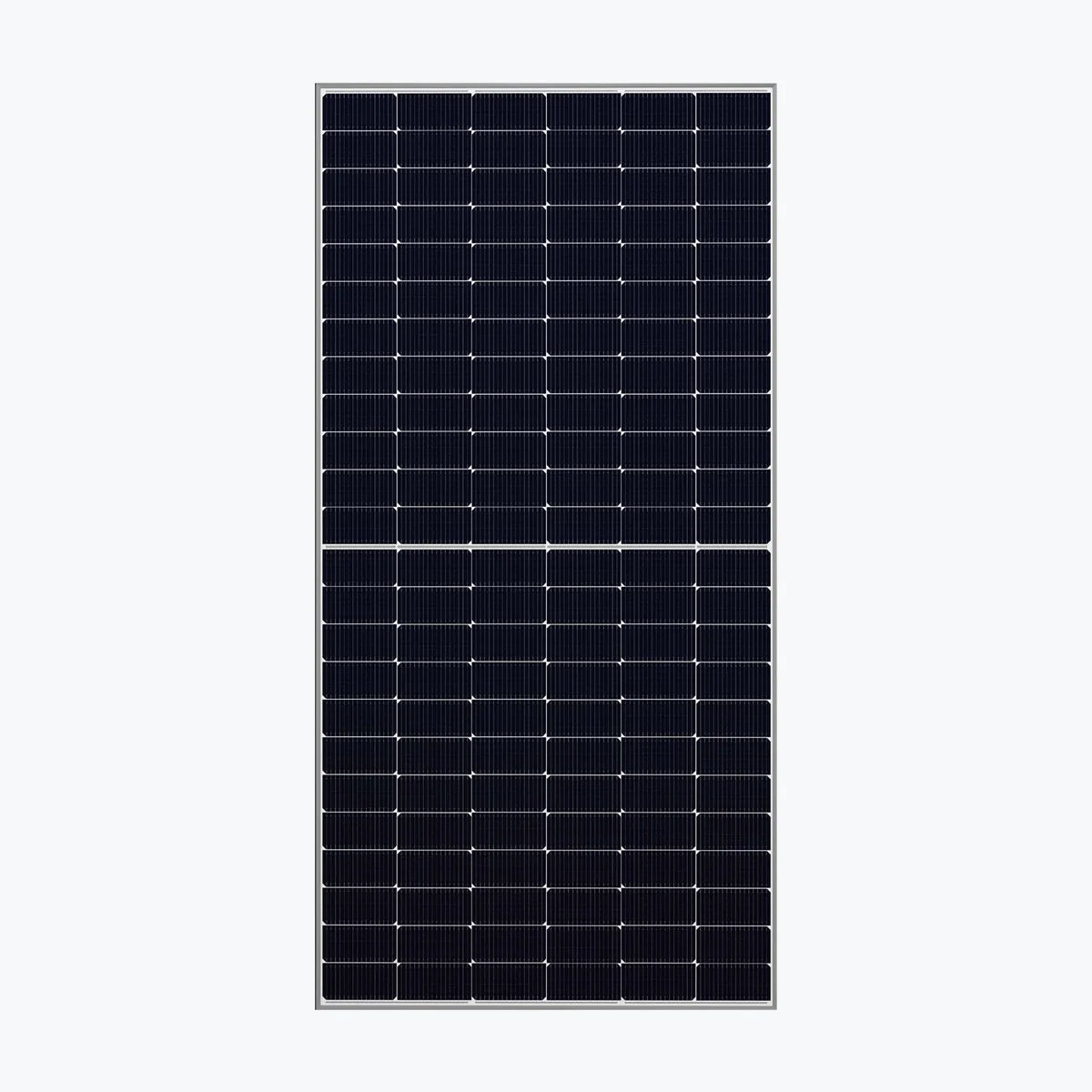

    Lu'an Solar JKL144-B-570NB

    Lu'an Solar JKL144-B-570NB

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-11824
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JKL144-B-570NB Product Warranty 15 Years Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 570 Wp Voltage at Maximum Power (Vmpp) 43.01 V Current at Maximum Power (Impp) 13.26 A Open Circuit Voltage (Voc) 51.71 V Short Circuit Current (Isc) 13.95 A Panel Efficiency 24.07 % Maximum Power (Pmax) 429 Wp Voltage at Maximum Power (Vmpp) 40.44 V Current at Maximum Power (Impp) 10.61 A Open Circuit Voltage (Voc) 49.12 V Short Circuit Current (Isc) 11.16 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32 kg Cell Size 182×182 mm Cell Number 72 Glass Type Anti-reflection Coating Glass Thickness 1 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 350 mm

      Technology: Bifacial, TOPCon, N-type
      Power Range: 570 ~ 590 Wp
      Panel Efficiency: 24.07 ~ 24.85 %
      Weight: 32 kg
      Seller Name: Shanxi Lu'an Photovoltaics Technology Co., Ltd.
      Country: China
