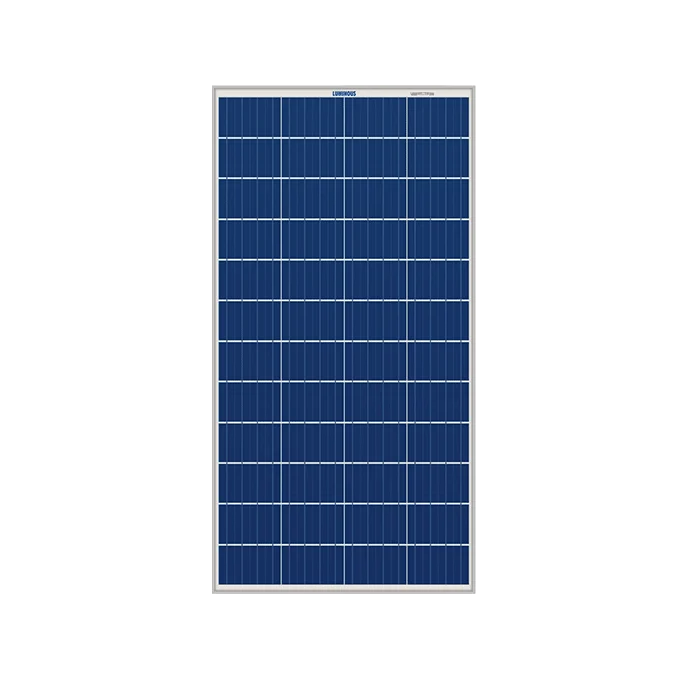

Luminous Power Technologies ALP 335W

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-11848

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →$0.54/W

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-11848
Unit price: $0.54/W

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Luminous Power Technologies ALP 335W $180.00

Specifications

Power Rating 335W

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Luminous ALP 335W 335W Polycrystalline Framed Solar Panel

Model ALP 335W | Polycrystalline Silicon | 72 Full-Cell Polycrystalline | Monofacial | 1000V System Voltage

335 Wp

Max Power Output

16.85%

Module Efficiency

72 Cells

N-Type TOPCon

Product Overview

The Luminous Power Technologies ALP 335W polycrystalline solar panel is designed for reliable rooftop and ground mount systems. This 335 watt module combines robust construction with proven cell technology for dependable daily energy generation. It is engineered for use in Indian climate conditions, including high temperatures and heavy monsoon seasons. With panel efficiency up to 16.85 percent, more power is produced from limited roof space. A 72 cell layout supports higher string voltages and flexible inverter matching. The panel uses high transmission tempered glass with anti reflection coating to improve light capture. Durable anodized aluminium framing and EVA encapsulation protect the cells for long service life. This module is suitable for residential, commercial, and small industrial solar installations seeking stable output and strong value.

Key Benefits

High power in a compact footprint: The 335 Wp output and 16.85 percent efficiency help maximise energy yield from limited roof areas while keeping array size manageable.

Stable performance in Indian climates: A wide operating temperature range from minus 40 to plus 85 degrees Celsius supports reliable operation in heat, dust, and humidity.

Durable construction for long life: Tempered low iron glass, EVA encapsulation, and a silver anodized aluminium alloy frame provide mechanical strength and impact resistance over time.

Optimised electrical characteristics: A Vmpp of 38.08 volts and Impp of 8.8 amps simplify string design and allow easy matching with common 24 volt and higher input inverters.

Bankable brand and warranties: The module is produced by Luminous Power Technologies in India and backed by product and performance warranties for long term investment security.

How It Works

This polycrystalline solar panel converts sunlight into usable DC electricity through multiple silicon cells connected in series. Each photovoltaic cell contains many silicon crystals that act as a semiconductor junction. When light strikes the cell surface, electrons are released and driven by the internal electric field. These electrons flow through the module busbars and output cables as direct current. The panel’s rated maximum power of 335 watts is delivered at specific voltage and current conditions under STC. In a solar system, several panels are wired in series and parallel to meet array voltage and power targets. The DC output is then sent to a compatible solar inverter or charge controller. From there, power is either converted to AC for household loads or stored in batteries for later use.

Polycrystalline cell generation: Each cell is cut from a silicon block containing many crystals, which simplifies manufacturing and reduces material waste. When sunlight hits the cell, the silicon lattice absorbs photons and frees electrons, creating a direct current flow across the cell junction.

Module interconnection and output: Seventy two cells are interconnected to deliver the desired operating voltage and current. The combined output produces 38.08 volts at 8.8 amps at maximum power, while open circuit voltage reaches 46.02 volts with a short circuit current of 9.43 amps.

Optical and mechanical protection: High transmission tempered glass with anti reflection coating improves light capture by reducing surface reflections. EVA encapsulation, a composite back sheet, and an anodized aluminium frame seal the cells, protect against moisture and dust, and provide rigidity under wind and snow loads.

Technical Specifications

Brand	Luminous Power Technologies Pvt. Ltd.
Model Number	ALP 335W
Cell Technology and Type	Polycrystalline silicon photovoltaic cells
Number of Cells	72 cells (6 x 12 configuration, polycrystalline)
Maximum Power (Pmax)	335 Wp
Voltage at Maximum Power (Vmpp)	38.08 V
Current at Maximum Power (Impp)	8.8 A
Open Circuit Voltage (Voc)	46.02 V
Short Circuit Current (Isc)	9.43 A
Module Efficiency	Up to 16.85%
Available Power Range	110 Wp to 335 Wp across series
Panel Efficiency Range	15.5% to 16.85% depending on model
Maximum System Voltage	1000 V DC (IEC)
Glass Type and Thickness	3.2 mm high transmission low iron tempered glass with anti reflection coating
Encapsulant Material	EVA (Ethylene Vinyl Acetate) multi layer encapsulation
Back Sheet	Durable composite film back sheet
Frame Type	Silver anodized aluminium alloy framed construction
Ingress Protection Rating	IP65 or IP67 depending on junction box variant
Maximum Surface Load Capacity	5400 Pa rated front load resistance
Operating Temperature Range	-40°C to +85°C permissible operating temperature
Application Class	Application Class A, Safety Class II

Certifications & Compliance

Certifications: BIS certified as per relevant IS/IEC standards and listed under ALMM order for approved solar PV modules.
Inverter Compatibility: Compatible with most on grid, off grid, and hybrid inverters designed for 24 V nominal and higher DC input strings within 1000 V system limits.
Environmental: Designed for outdoor installation with IP rated junction box, 5400 Pa load resistance, and materials selected for UV, moisture, and corrosion resistance.
Warranty: Product warranty up to 12 years with a linear performance warranty of 25 years, including 3 percent first year degradation and 0.70 percent annual degradation from year two to year twenty five, as per Luminous warranty policy.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and best pricing for project or rooftop use
