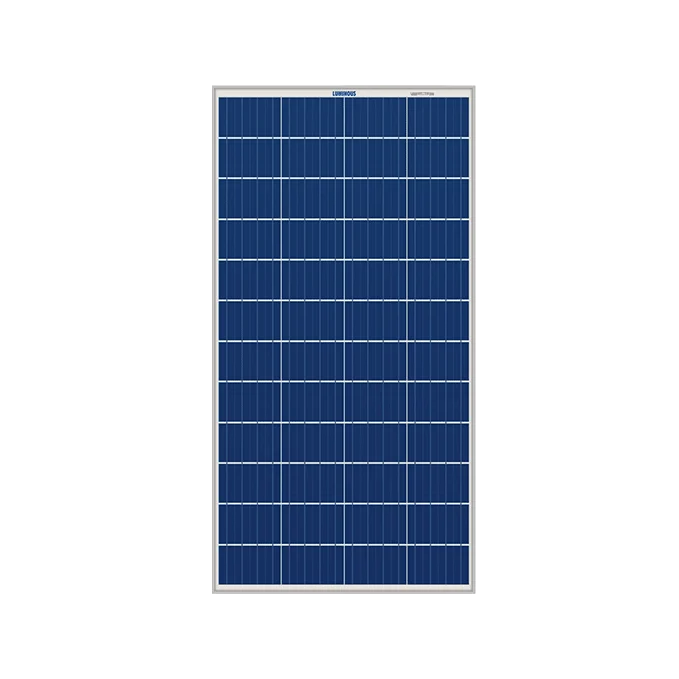

Luminous LUM 12110 110W Polycrystalline Monofacial Solar Panel

Model LUM 12110 | Polycrystalline Silicon | 36 Full-Cell Polycrystalline | Monofacial | 1000V DC System Voltage

110 Wp

Max Power Output

15.5%

Module Efficiency

36 Cells

Polycrystalline

Product Overview

The Luminous LUM 12110 110W polycrystalline solar panel is designed as a reliable module for small rooftop and off‑grid systems. This compact panel delivers 110 Wp at standard test conditions, with a module efficiency of 15.5% for effective power generation from a modest footprint. High transmission, low iron tempered glass with anti‑reflection coating helps capture more sunlight and improves performance in low‑light conditions. The panel uses proven polycrystalline silicon cells, offering a balance of cost, durability, and output stability over years of operation. Rugged construction and a corrosion resistant anodized aluminium frame support long service life in varied Indian climates.

This model sits within a wider Luminous polycrystalline range from 110 Wp to 335 Wp, giving system designers flexibility across DC string sizes. It is suitable for 12V battery based systems when paired with an appropriate charge controller, as well as small grid‑connected arrays. IP65 protection for the junction box and high mechanical load capacity make it a dependable choice for residential, commercial, and rural energy projects. Produced by Luminous Power Technologies in India, the panel is backed by BIS compliant manufacturing and a long performance warranty, helping ensure predictable output for decades.

Key Benefits

Optimised for small systems: The 110 Wp rating makes this module ideal for compact rooftops, caravans, telecommunication loads, and small off‑grid applications.

Reliable polycrystalline technology: Proven polycrystalline cells provide stable output and good value, reducing upfront cost without compromising durability over time.

Enhanced light capture: High transmission low iron glass with anti‑reflection coating improves energy yield during mornings, evenings, and overcast weather.

Robust mechanical design: A silver anodized aluminium frame, strong back sheet, and EVA encapsulation protect the cells against moisture, dust, wind, and snow loads.

Long term performance assurance: A 5 year product warranty and 25 year linear performance warranty from Luminous support long service life and bankable energy output.

Made for Indian conditions: High mechanical load capacity and wide operating temperature tolerance suit harsh outdoor environments across India and similar climates.

How It Works

This Luminous polycrystalline solar panel converts sunlight into usable DC electricity through multiple interconnected silicon cells. Each cell contains many silicon crystals that behave as a semiconductor when exposed to light. Photons from the sun dislodge electrons inside the cells and create an electric current that flows through the panel’s bus bars and output cables. At its maximum power point, the module delivers around 18.15 V and 6.07 A, which can be used to charge batteries or feed a solar inverter. Protective glass, EVA encapsulation, and a composite back sheet shield the cells from weather and mechanical stress, allowing the panel to operate reliably for decades with minimal maintenance.

Photovoltaic cell operation: The module uses 36 polycrystalline cells wired in series to build operating voltage. When sunlight hits these cells, an electric field across the silicon junction drives electrons towards the external circuit. This movement creates direct current that flows to the junction box and onward to your charge controller or inverter.

Maximum power point delivery: Under standard conditions, the panel reaches maximum output at about 18.15 V and 6.07 A. A charge controller or MPPT inverter continuously tracks this point to extract the highest practical power. Even when irradiance changes, the system adjusts operating voltage and current to keep energy harvest efficient.

Optics, encapsulation, and protection: High transmission tempered glass with anti‑reflection coating increases the amount of light reaching the cells. EVA encapsulant bonds the cells to the glass and back sheet, providing electrical insulation and shock absorption. The composite back sheet and IP65 rated junction box protect internal components from dust and moisture, while the anodized frame allows easy mounting to standard structures.

System integration: One or more modules can be wired together to reach the DC voltage required by your system. For 12V battery systems, a suitably rated charge controller regulates charging and protects the battery bank. In grid‑tie systems, a solar inverter converts the DC power from the array to AC, which can supply loads or feed the utility grid where policies allow.

Technical Specifications

Brand	Luminous Power Technologies Pvt. Ltd.
Model Number	LUM 12110
Technology / Cell Type	Polycrystalline silicon solar cells
Number of Cells	36 cells, series connected
Nominal Power Range (Series)	110 Wp to 335 Wp across Luminous polycrystalline range
Maximum Power (Pmax)	110 Wp
Voltage at Maximum Power (Vmpp)	18.15 V
Current at Maximum Power (Impp)	6.07 A
Open Circuit Voltage (Voc)	22.1 V
Short Circuit Current (Isc)	6.35 A
Module Efficiency	15.5%
Maximum System Voltage	1000 V DC (IEC)
Module Dimensions (L × W × T)	670 mm × 535 mm × 34 mm (approximate from LUM series chart)
Module Weight	Approximately 5.3 kg (estimated from series mechanical data)
Front Glass	3.2 mm high transmission low iron tempered glass, anti‑reflection coated
Encapsulant	EVA (Ethylene Vinyl Acetate) multi layer encapsulation
Back Sheet	Durable composite film back sheet
Frame Material	Silver anodized aluminium alloy frame
Junction Box Rating	IP65 rated junction box for outdoor use
Cable Length	Factory fitted cables up to 1000 mm in LUM series (model specific)
Mechanical Load Capacity	5400 Pa maximum surface load capacity
Application Class	Class A, Safety Class II
Operating Temperature Range	-40°C to +85°C operating temperature
Country of Manufacture	India

Certifications & Compliance

Certifications: BIS certified as per IS/IEC standards; enlisted in the Approved List of Models and Manufacturers (ALMM) for solar PV modules.
Inverter Compatibility: Compatible with most PWM and MPPT charge controllers and grid‑tie inverters that support 36‑cell modules and 1000 V DC systems; always confirm exact voltage and current limits with your equipment supplier.
Environmental: Designed for outdoor installation in harsh weather, with IP65 rated junction box, corrosion resistant frame, and 5400 Pa load rating for wind and snow conditions.
Warranty: 5 year product warranty and 25 year linear performance warranty with up to 3% first year degradation and a maximum of 0.70% annual degradation from year two to year twenty five, as per Luminous warranty terms and conditions.
