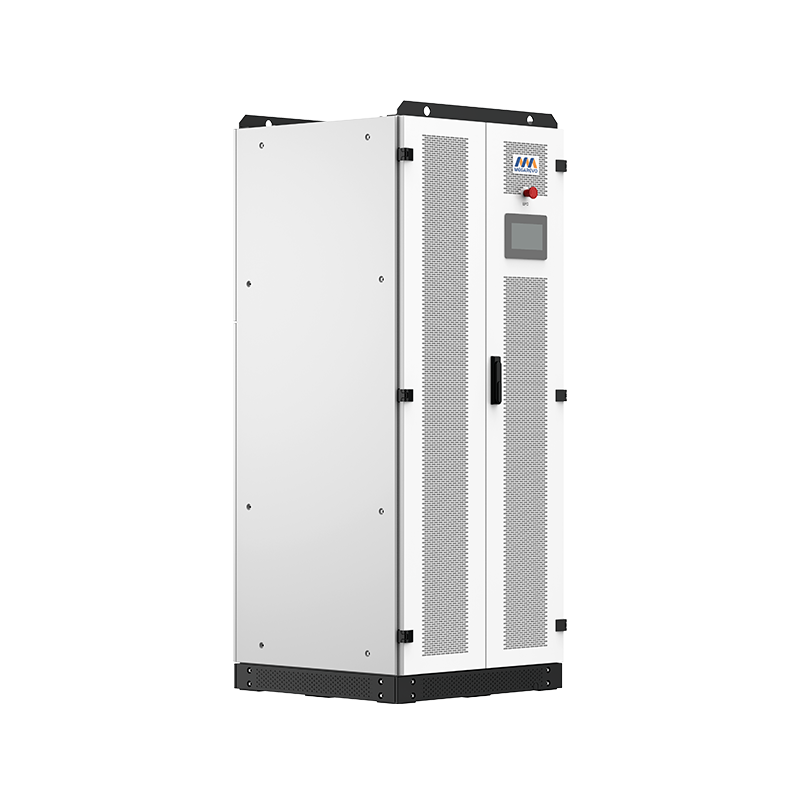

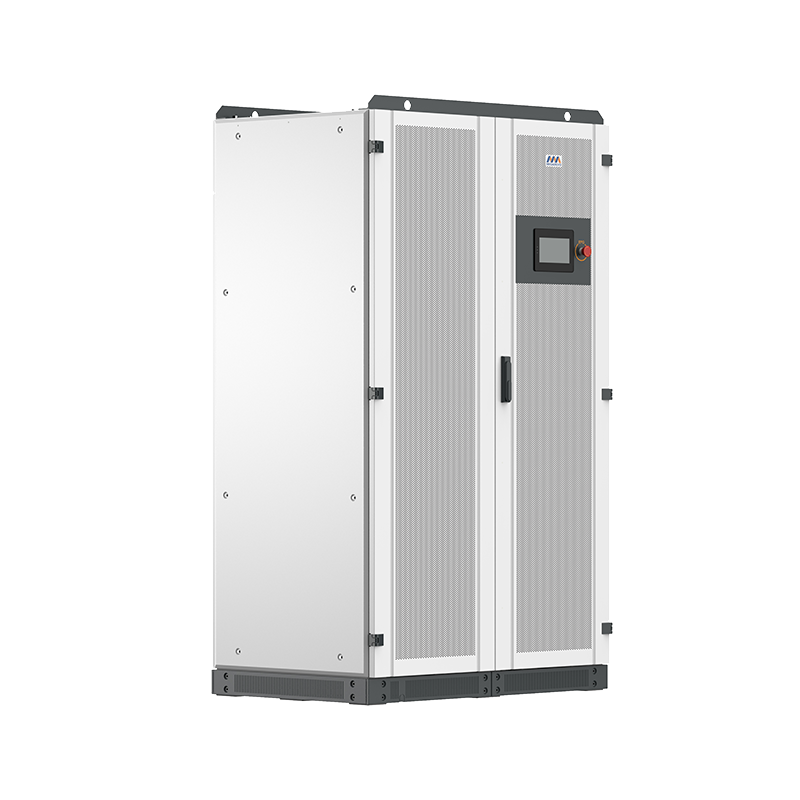

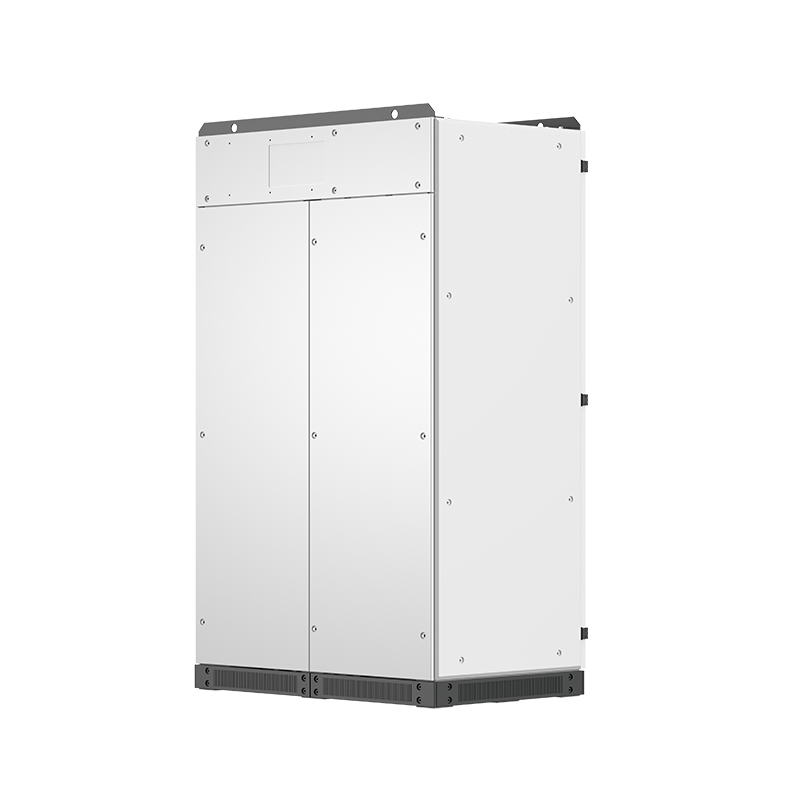

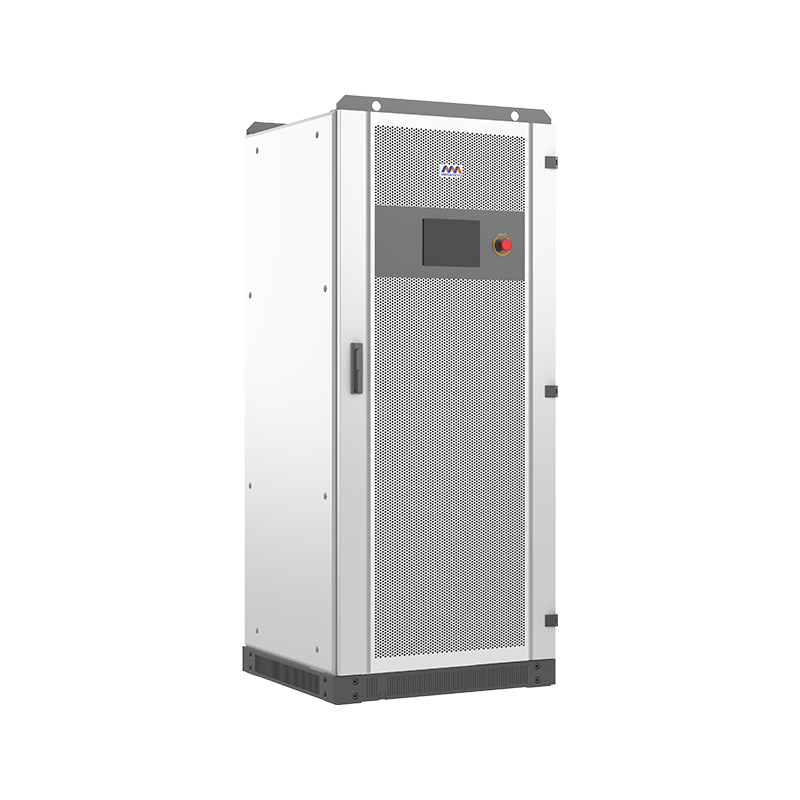

The MegaRevo 30kW 3Phase 208V MPS Microgrid Hybrid Inverter - MPS0030 is engineered to deliver high-performance energy conversion, dependable backup power, and efficient microgrid support for both commercial and industrial applications. Built for environments that demand continuous uptime, this hybrid inverter ensures stable power integration between solar, battery storage, and the grid. With its powerful output and intelligent energy management features, it elevates energy independence and operational reliability.
MPS0030 is the 30 kW model in Megarevo’s Microgrid Series, which integrates PV MPPT, energy-storage PCS, and on/off-grid automatic switching into a single cabinet—reducing both deployment time & cost. With a built-in isolation transformer, EMS integration, and multi-mode operation, it is ideal for remote/off-grid sites. [Brochure/Datasheet]
| AC (on-grid) | |
|---|---|
| Max output power | 33 kVA |
| Rated output power | 30 kW |
| Rated / range (V) | 400 V / 320–460 V |
| Rated current | 43 A |
| Frequency | 50/60 Hz (range 45–55/55–65 Hz) |
| THDi | < 3% |
| Power factor | 1 lagging to 1 leading (settable) |
| AC connection | 3W + N + PE |
| Transformer ratio | 100/400 |
| AC (off-grid) | |
|---|---|
| Max / rated power | 33 kVA / 30 kW |
| Voltage / current | 400 V / 43 A |
| Frequency | 50/60 Hz |
| THDU | ≤ 1% (linear) or ≤ 5% (non-linear) |
| Overload | 110% long-term |
| PV input | |
|---|---|
| Max PV voltage | 1000 Vdc |
| Max PV power | 36/72 kW (model configuration) |
| MPPT range | 250–850 V (full-load 450–850 V) |
| Battery | |
|---|---|
| Battery voltage range | 250–850 V |
| Max charging power | 36/72 kW |
| Dimensions (W×D×H) | 800 × 800 × 1900 mm (31.5″ × 31.5″ × 74.8″) |
|---|---|
| Net weight | 576/607 kg (≈ 1,270–1,338 lb) |
| Ingress protection | IP20 |
| Environment | −30~55 °C; 0–95% RH (non-cond.); <70 dB; ≤ 5000 m (derate > 3000 m) |
| Cooling | Air cooling |
| Certifications | EN/IEC 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, NRS097-2-1:2017, IEC 61727, IEC 62116, IEC 61683 |
This advanced hybrid inverter stands out due to its exceptional efficiency, smart controls, and seamless system compatibility. Designed for demanding load requirements, it supports multi-source power inputs, allowing facilities to optimize energy usage in real time. Whether the goal is peak-shaving, backup support, or maximizing solar utilization, the MegaRevo 30kW 3Phase 208V MPS Microgrid Hybrid Inverter - MPS0030 provides the flexibility and performance today’s energy systems need.
With three-phase 208V compatibility, it aligns well with many North American commercial infrastructures. Its robust design ensures resilience against voltage fluctuations, unstable grids, and heavy operational demands.
One of the notable strengths of this inverter is its superior efficiency rating. High conversion efficiency ensures that more of the harvested solar energy is effectively utilized or stored, minimizing energy loss and maximizing return on investment. The system’s efficiency also contributes to reduced operational costs, making it ideal for energy-intensive businesses.
As microgrids become increasingly essential for energy resilience and sustainability, the MegaRevo 30kW 3Phase 208V MPS Microgrid Hybrid Inverter - MPS0030 serves as a cornerstone component. It offers advanced controls that maintain consistent frequency and voltage within microgrid environments. Whether connected to the utility grid or operating independently during outages, it ensures continuous power flow to critical loads.
Its sophisticated management algorithms allow the inverter to respond instantly to power fluctuations, providing a stable operating environment. This reliability is especially valuable for facilities with sensitive equipment, manufacturing operations, data centers, and emergency power needs.
Hybrid systems rely heavily on smooth, responsive battery integration. This inverter supports a wide range of battery chemistries, enabling adaptable storage configurations. It efficiently manages charge and discharge cycles to extend battery life, maximize storage capacity, and reduce energy waste. Users benefit from reliable nighttime operation, emergency backup power, and better load-shifting strategies.
The inverter is designed to pair seamlessly with modern commercial solar arrays. It intelligently prioritizes solar energy usage to reduce grid dependency, automatically switching to battery support when solar power dips. This integration ensures consistent performance throughout varying weather conditions and fluctuating energy demands.
Remote monitoring and system analytics are essential in modern energy installations. The MegaRevo 30kW 3Phase 208V MPS Microgrid Hybrid Inverter - MPS0030 includes intuitive monitoring capabilities that allow operators to track power production, consumption patterns, battery performance, and system health. Through intelligent communication protocols, it integrates easily with centralized energy management systems.
These tools offer actionable insights for improving energy efficiency, planning maintenance, and optimizing load behaviors across large facilities.
Durability is a critical factor when selecting an inverter for demanding environments. Built with high-quality components and engineered for long service life, this inverter withstands temperature variations, environmental stress, and constant operational loads. Its protective features help prevent overheating, component degradation, and electrical faults, ensuring years of reliable performance with minimal downtime.
The inverter’s versatile configuration makes it suitable for:
Its combination of power, intelligence, and resilience allows businesses to maintain energy continuity while reducing operational costs and improving sustainability.
