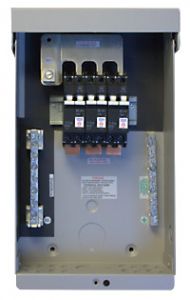

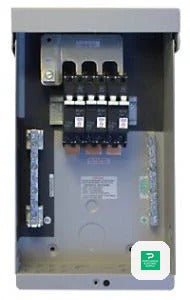

MidNite Solar MNPV6-250 Solar Array Combiner

The MidNite Solar MNPV6-250 PV Combiner is designed for both residential and commercial solar systems, accommodating up to six 150VDC circuit breakers or four 600VDC fuse holders. It provides a safe and efficient method to combine multiple solar strings into one output, allowing for streamlined system management. This high-quality product ensures exceptional performance and reliability, making it a top choice for solar installers and enthusiasts alike.

Product Features

Robust Enclosure

The MNPV6-250 comes with a durable, rainproof aluminum type 3R enclosure that protects internal components from moisture and debris. This feature is vital for maintaining optimal performance in various weather conditions, ensuring longevity and reliability in your solar setup.

Flexible Configuration

This PV combiner supports both 150VDC and 600VDC configurations, making it versatile for different types of solar systems. Whether you're using circuit breakers or fuses, the MNPV6-250 caters to a range of installation needs, ensuring compatibility with your solar solution.

Efficient Bus Bars

Equipped with a 15-position PV negative bus bar and a 14-position ground bus bar, this combiner enhances operational efficiency. These bus bars simplify wiring and reduce installation complexity, enabling a cleaner and more organized electrical setup.

Simple Installation

The MNPV6-250 is designed for easy mounting on walls or poles, accommodating both indoor and outdoor installations. With user-friendly punch-out tabs on the plastic dead front, it allows for a swift and neat installation experience when working with circuit breakers or fuse holders.

ETL Listed Compliance

This product is ETL Listed to UL1741 standards for use in the United States and Canada, ensuring safety and reliability. By adhering to these rigorous standards, the MNPV6-250 guarantees quality and performance in every solar application.

How It Works

The MNPV6-250 efficiently combines input from multiple solar panels into a single output through its integrated bus bar system. By receiving electrical current from each panel, it ensures that energy is optimally directed to inverters or charge controllers while maintaining safety standards.

Input Connection Management

This combiner manages multiple input connections with ease, supporting a wide array of solar panel configurations. This capability allows it to maximize solar energy harnessing from various sources effectively.

Output Configuration

Incorporating either circuit breakers or fuses, the MNPV6-250 provides flexibility in output configuration, allowing users to choose their preferred protection method for the system's wiring.

Enhanced Safety Features

The dead front design and insulating materials ensure that all high-voltage components are safely contained, minimizing the risk of accidental electrical shock during operation or maintenance.

Specifications
