• Morningstar Corporation PS-MPPT-25M 25A
1 1

In Stock

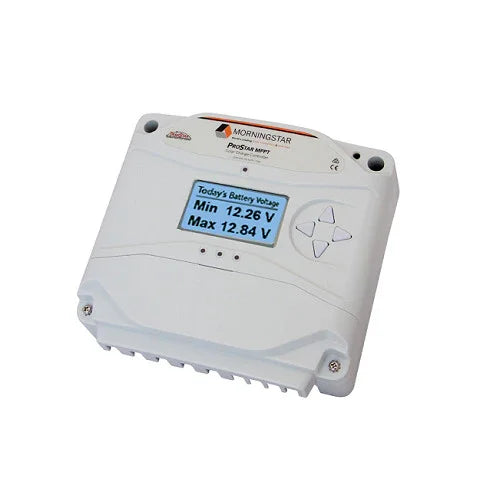

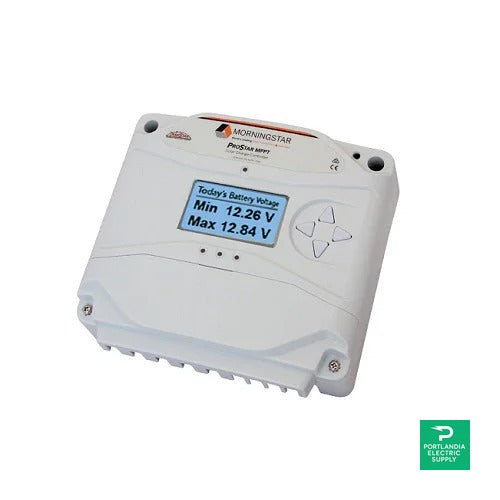

Morningstar PROSTAR MPPT Charge Controller - PS-MPPT-25M 25A

Morningstar PROSTAR MPPT Charge Controller - PS-MPPT-25M 25A

$578.20 USD
$578.20 USD
Sale
Shipping calculated at checkout.
Call Now Email Us
Return policy

Specification

View full details

  • Product Description

    Morningstar Corporation PS-MPPT-25M 25A

    Morningstar PROSTAR MPPT Charge Controller - Efficiency and Reliability

    The Morningstar Corporations PS-MPPT-25M 25A charge controller is a robust solution designed to maximize energy harvesting from solar panels. Featuring advanced TrakStar MPPT (Maximum Power Point Tracking) technology, it ensures efficient battery charging and system dependability. Ideal for off-grid solar applications, this device promises optimal performance with its passive cooling and smart technology-focused design.

    Key Benefits of the Product

    Charging Status / Error LED Indicators

    The intelligent LED indicators provide real-time updates on charging conditions and potential error states, ensuring users maintain an overview of system status efficiently and effectively.

    Efficient Heat Dissipation with Aluminum Heatsink

    This charge controller is equipped with an aluminum heatsink that effectively dissipates heat, enhancing durability and reliability through 100% passive cooling methods.

    Interactive Meter Display

    Featuring a digital LCD display, it offers intuitive system monitoring and programming capabilities, facilitating ease of use and improved user engagement with the solar setup.

    Battery and Load LED Indicators

    The device includes informative LED indicators for battery status and charging errors, assisting users in quickly identifying and addressing any issues within the system.

    Innovative Connectivity Options

    Designed with versatile connectivity, the controller supports multiple terminals for solar, load, and battery connections, ensuring seamless integration into your solar energy system.

    Operating Mechanism

    The ProStar MPPT operates through efficient utilization of its integral components, offering seamless performance improvements and reliability. Featuring advanced MPPT technology, it optimizes solar power usage via effective energy tracking methods.

    Advanced MPPT Technology

    This component uses Maximum Power Point Tracking to enhance the efficiency and output of photovoltaic systems by maximizing power extraction under all conditions.

    Smart Temperature Adaptation

    Temperature sensors adjust charging parameters based on ambient conditions, ensuring accurate and efficient battery management, preventing overcharging or underperformance.

    Robust DIP Switch Configurations

    The charge controller is customizable through DIP switches, allowing users to tailor the operation settings to fit specific power requirements and installation conditions.

    Specifications

    Nominal Battery Voltage 12/24V
    Max. PV Open-Circuit Voltage 120V
    Nominal Max. Input Power 560W (12V) / 1120W (24V)
    Max. Battery Charging Current 25A
    Operating Temperature Range -20ºC to +60ºC
    Storage Temperature -30ºC to +80ºC
    Environmental Certification IEC/EN 62109-1
    Humidity 100% n.c.
    Maximum Operating Altitude 2000 meters
    Communication Port MeterBus
