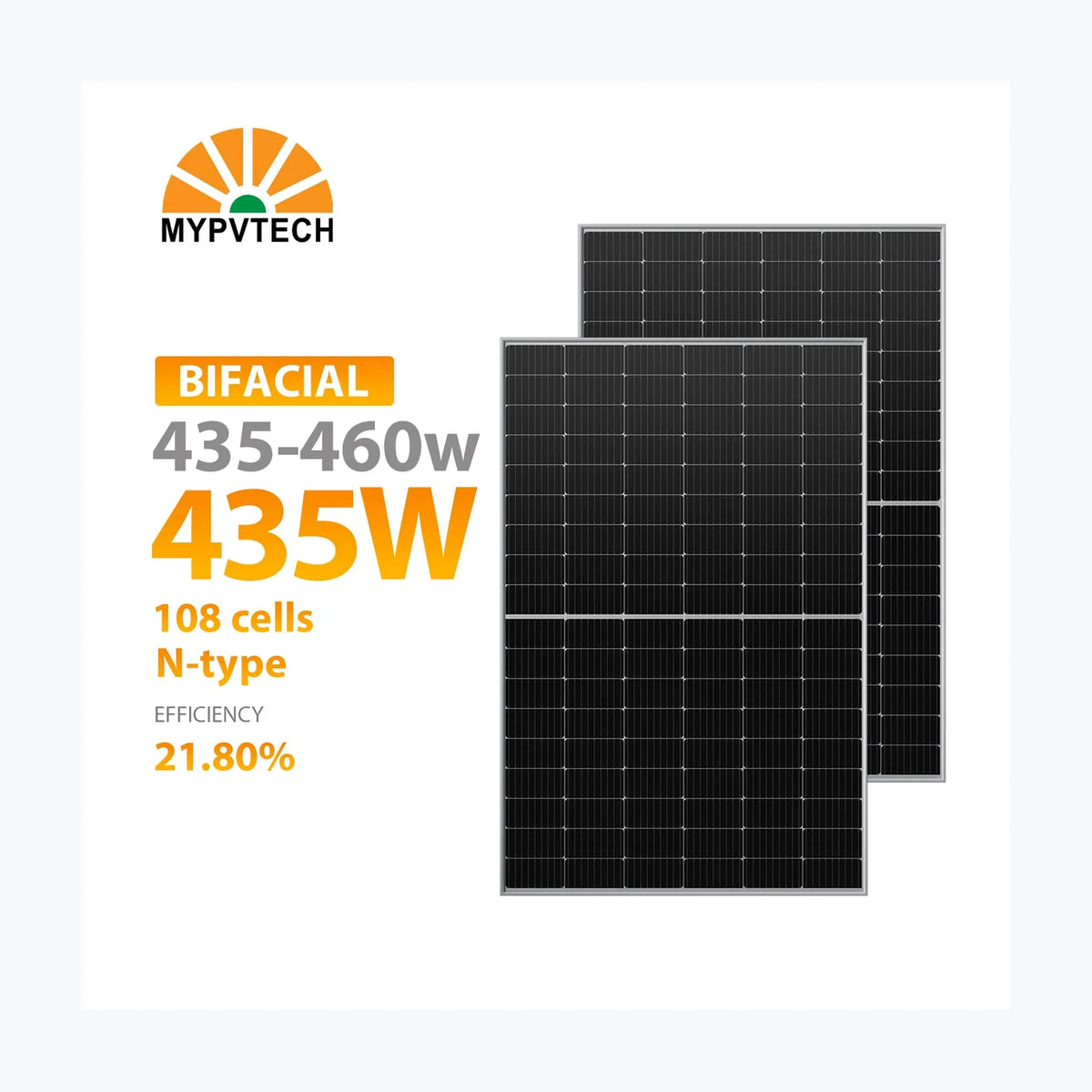

    MY Solar MY-M10/60-445

    MY Solar MY-M10/60-445

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12113
    • Container price: $54.00 USD
    • Container qty: 720
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. MY-M10/60-445 Product Warranty 25 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 445 Wp Voltage at Maximum Power (Vmpp) 34.26 V Current at Maximum Power (Impp) 12.99 A Open Circuit Voltage (Voc) 41.5 V Short Circuit Current (Isc) 13.67 A Panel Efficiency 20.59 % Maximum Power (Pmax) 331.18 Wp Voltage at Maximum Power (Vmpp) 31.87 V Current at Maximum Power (Impp) 10.39 A Open Circuit Voltage (Voc) 39.17 V Short Circuit Current (Isc) 11.04 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1908x1133x35 mm Weight 24 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPE Frame Type Anodized Aluminium Junction Box Diodes 2 Junction Box Protection Class IP 68 Connector T

      Power Range: 435 ~ 455 Wp
      Panel Efficiency: 20.13 ~ 21.05 %
      Weight: 24 kg
      Seller Name: MY Solar Technology Co., Ltd.
      Country: China
