Out of Stock

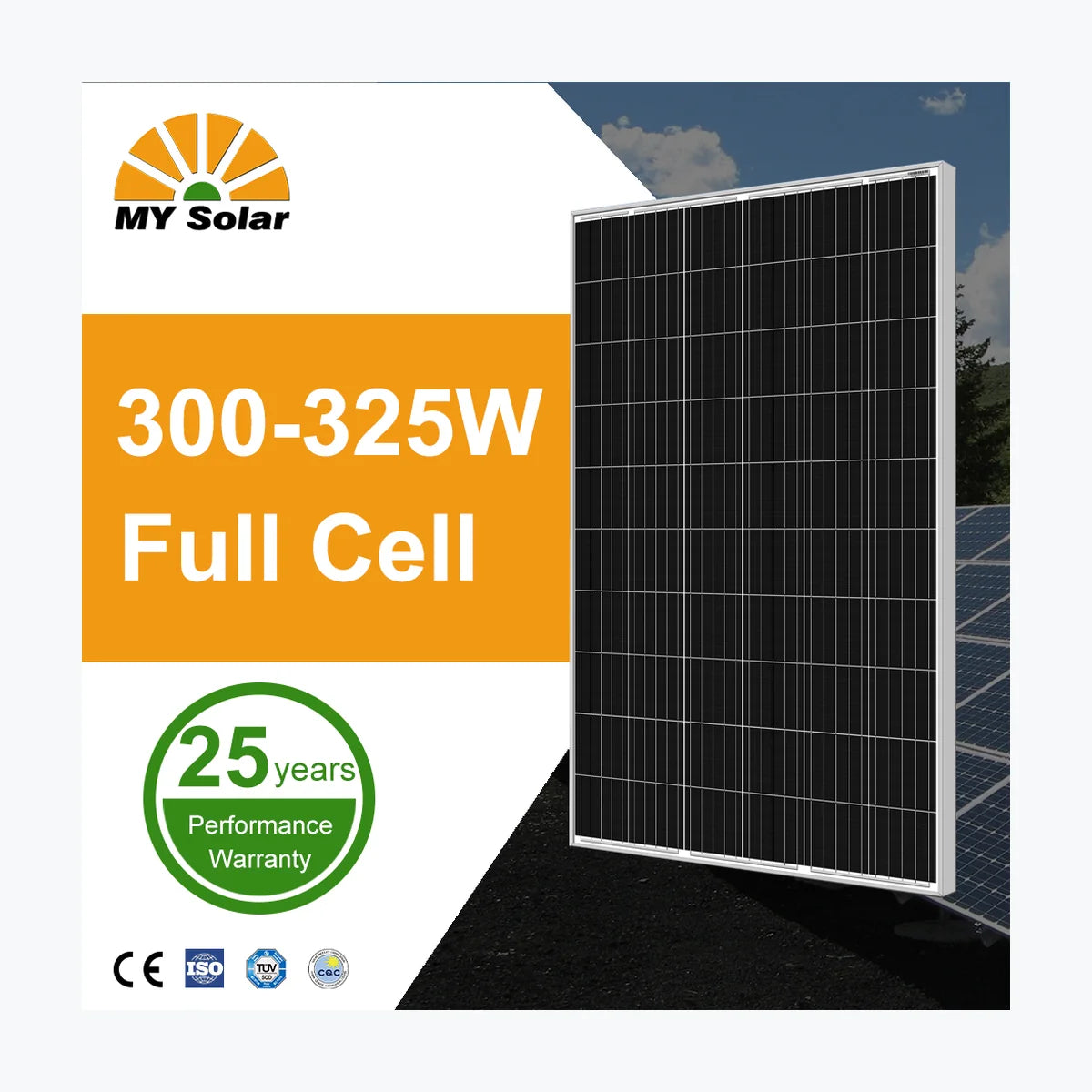

MY Solar MY-M2/60-315
MY Solar MY-M2/60-315
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12153
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. MY-M2/60-315 Product Warranty 25 Years Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 315 Wp Voltage at Maximum Power (Vmpp) 33.1 V Current at Maximum Power (Impp) 9.52 A Open Circuit Voltage (Voc) 40.7 V Short Circuit Current (Isc) 9.96 A Panel Efficiency 19.36 % Maximum Power (Pmax) 231.8 Wp Voltage at Maximum Power (Vmpp) 30.9 V Current at Maximum Power (Impp) 7.5 A Open Circuit Voltage (Voc) 37.7 V Short Circuit Current (Isc) 8.01 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 10 A Panel Dimension (H/W/D) 1640x992x35 mm Weight 18.5 kg Cell Size 156.75×156.75 mm Cell Number 60 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Ma
Power Range: 305 ~ 325 Wp
Panel Efficiency: 18.75 ~ 19.98 %
Weight: 18.5 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
