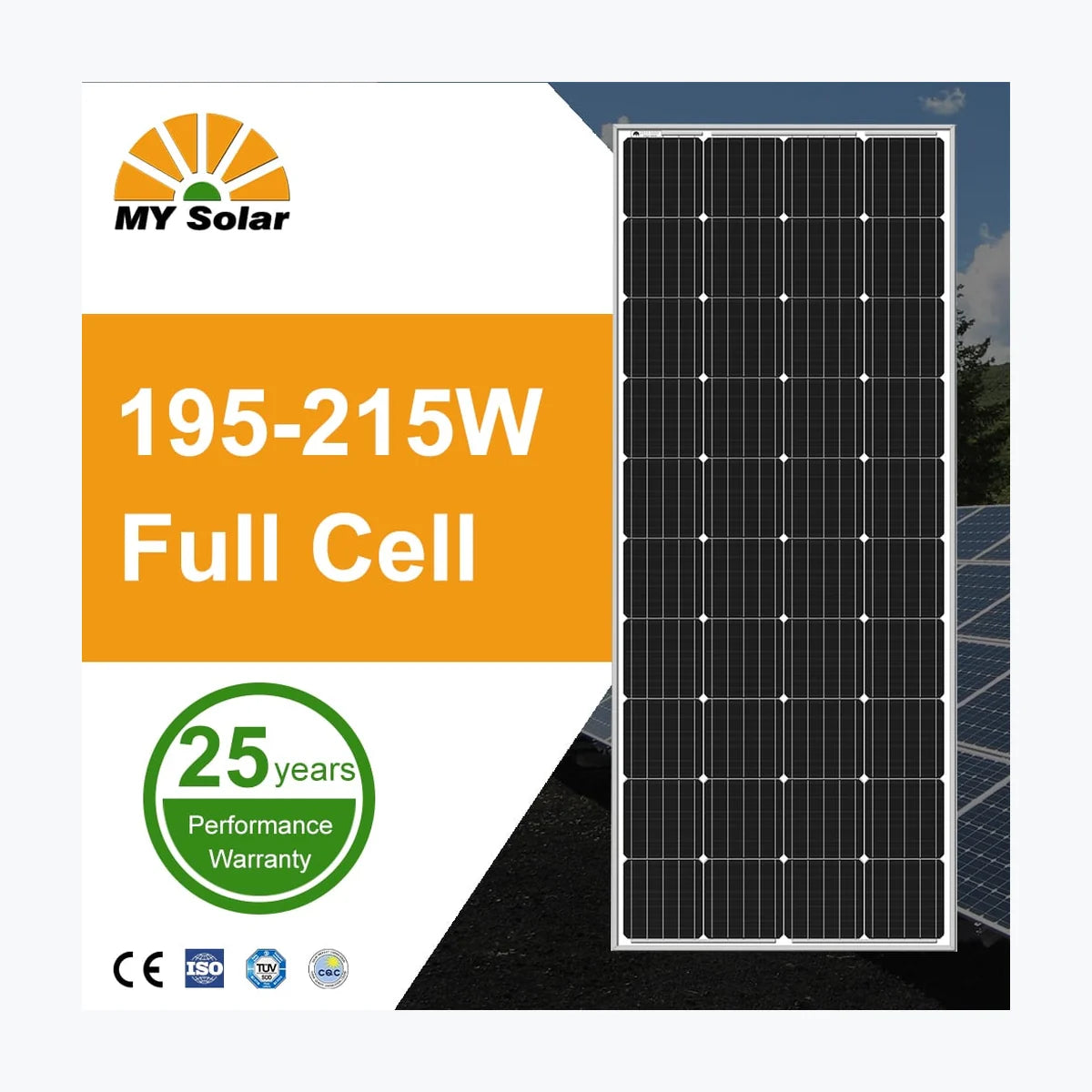

MY Solar MY-M20/40-200
PayPal Pay in 4 interest-free payments of $26.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-12161
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. MY-M20/40-200 Product Warranty 25 Years Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 200 Wp Voltage at Maximum Power (Vmpp) 37.6 V Current at Maximum Power (Impp) 5.32 A Open Circuit Voltage (Voc) 46.2 V Short Circuit Current (Isc) 5.58 A Panel Efficiency 15.7 % Maximum Power (Pmax) 147.2 Wp Voltage at Maximum Power (Vmpp) 35 V Current at Maximum Power (Impp) 4.2 A Open Circuit Voltage (Voc) 42.8 V Short Circuit Current (Isc) 4.49 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1580x808x35 mm Weight 15.1 kg Cell Size 125×125 mm Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPE Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 67
Power Range: 195 ~ 215 Wp
Panel Efficiency: 15.3 ~ 16.8 %
Weight: 15.1 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-12161 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
