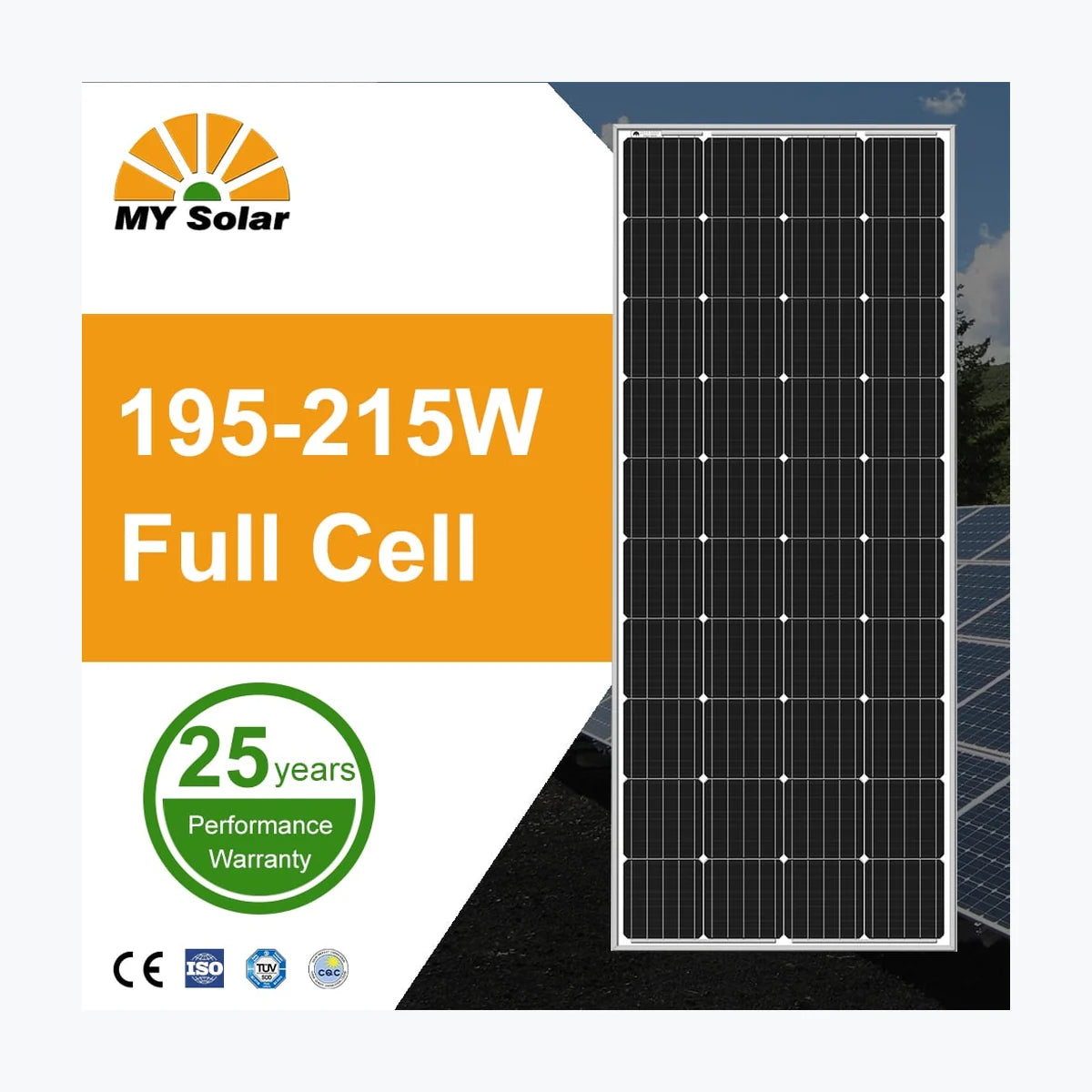

MY Solar MY-M20/40-205
MY Solar MY-M20/40-205
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12162
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. MY-M20/40-205 Product Warranty 25 Years Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 205 Wp Voltage at Maximum Power (Vmpp) 38.2 V Current at Maximum Power (Impp) 5.37 A Open Circuit Voltage (Voc) 47 V Short Circuit Current (Isc) 5.63 A Panel Efficiency 16.1 % Maximum Power (Pmax) 150.8 Wp Voltage at Maximum Power (Vmpp) 35.6 V Current at Maximum Power (Impp) 4.24 A Open Circuit Voltage (Voc) 43.4 V Short Circuit Current (Isc) 4.53 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1580x808x35 mm Weight 15.1 kg Cell Size 125×125 mm Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPE Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 67
Power Range: 195 ~ 215 Wp
Panel Efficiency: 15.3 ~ 16.8 %
Weight: 15.1 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
