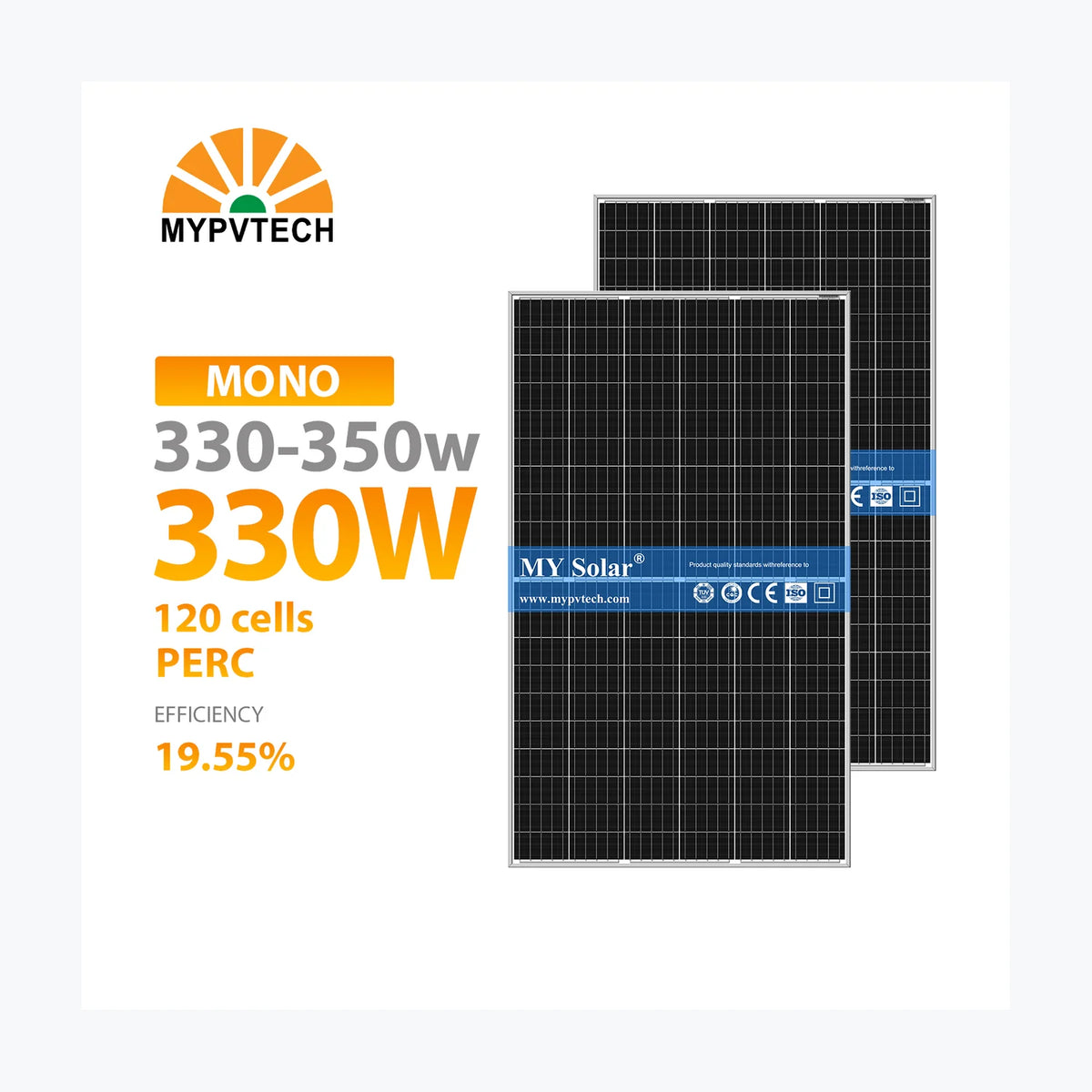

MY Solar MY-M3/120-335
PayPal Pay in 4 interest-free payments of $29.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-12167
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. MY-M3/120-335 Product Warranty 25 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 335 Wp Voltage at Maximum Power (Vmpp) 34 V Current at Maximum Power (Impp) 9.87 A Open Circuit Voltage (Voc) 41.5 V Short Circuit Current (Isc) 10.36 A Panel Efficiency 19.85 % Maximum Power (Pmax) 250 Wp Voltage at Maximum Power (Vmpp) 32 V Current at Maximum Power (Impp) 7.82 A Open Circuit Voltage (Voc) 38.4 V Short Circuit Current (Isc) 8.74 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1684x1002x35 mm Weight 19 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Power Range: 325 ~ 345 Wp
Panel Efficiency: 19.26 ~ 20.45 %
Weight: 19 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-12167 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
