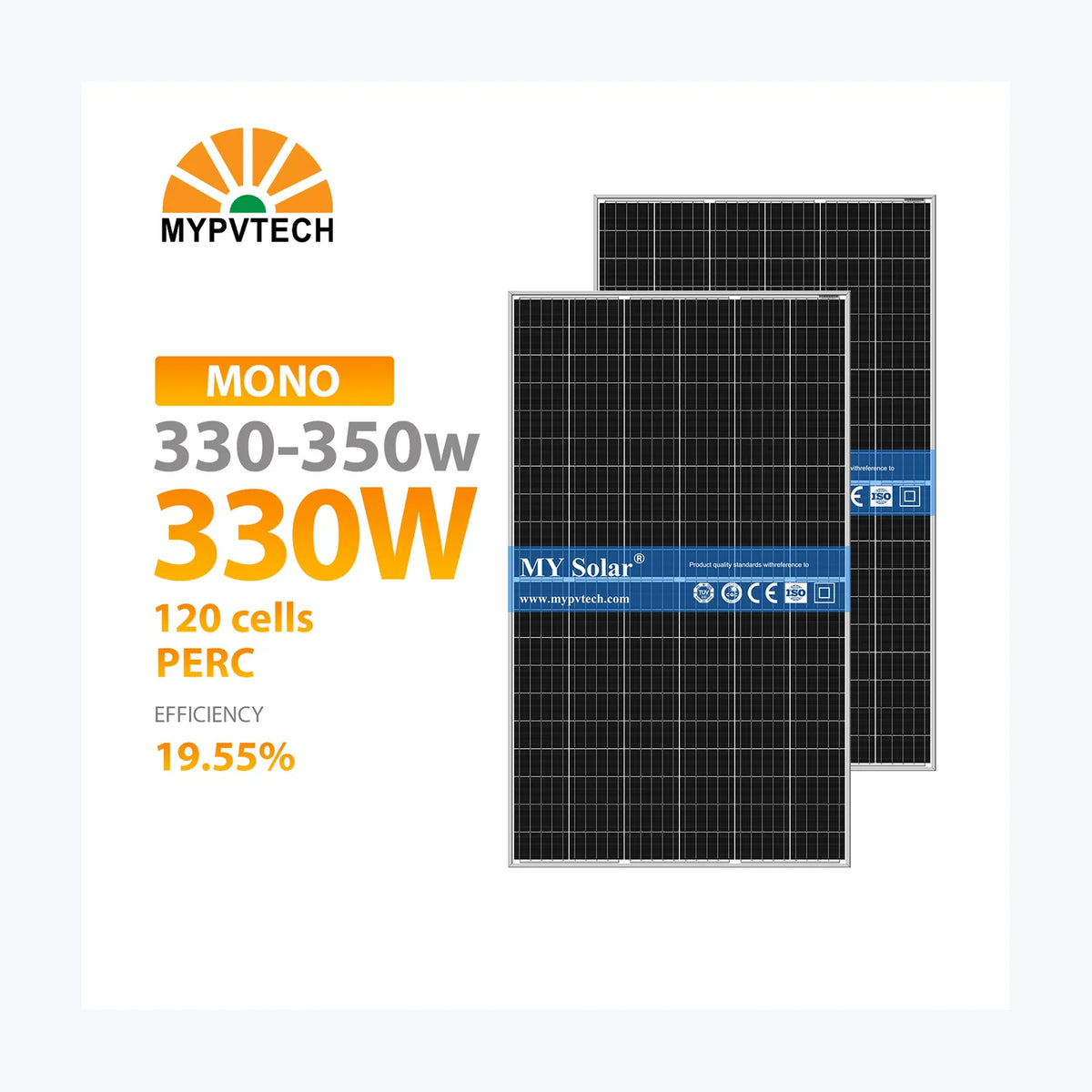

MY Solar MY-M3/120-345
MY Solar MY-M3/120-345
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12169
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. MY-M3/120-345 Product Warranty 25 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 345 Wp Voltage at Maximum Power (Vmpp) 34.4 V Current at Maximum Power (Impp) 10.04 A Open Circuit Voltage (Voc) 41.9 V Short Circuit Current (Isc) 10.64 A Panel Efficiency 20.45 % Maximum Power (Pmax) 257 Wp Voltage at Maximum Power (Vmpp) 32.4 V Current at Maximum Power (Impp) 7.94 A Open Circuit Voltage (Voc) 38.8 V Short Circuit Current (Isc) 8.97 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1684x1002x35 mm Weight 19 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Power Range: 325 ~ 345 Wp
Panel Efficiency: 19.26 ~ 20.45 %
Weight: 19 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
