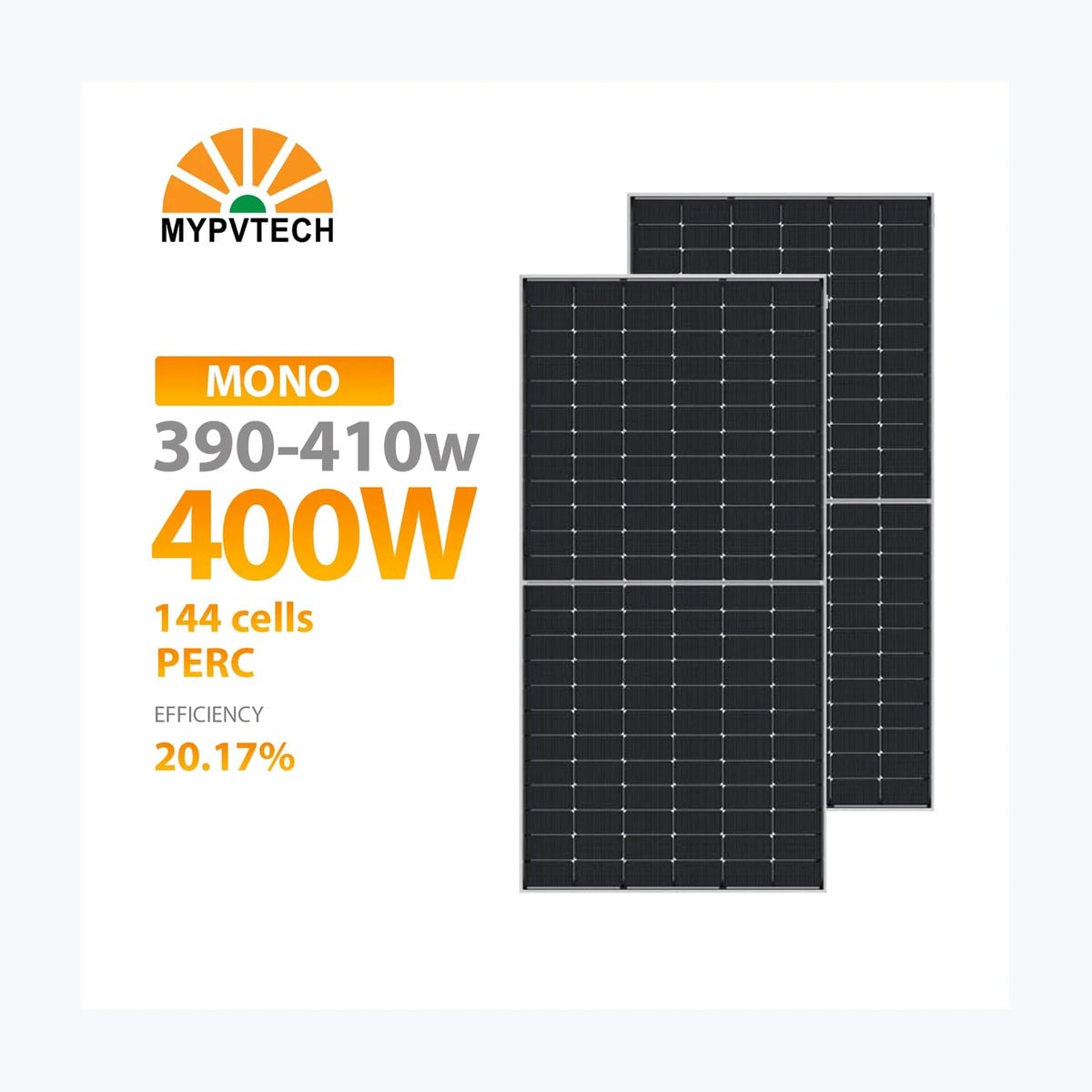

MY Solar MY-M3/144-390
MY Solar MY-M3/144-390
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12170
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. MY-M3/144-390 Product Warranty 25 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 390 Wp Voltage at Maximum Power (Vmpp) 41.1 V Current at Maximum Power (Impp) 9.49 A Open Circuit Voltage (Voc) 49.3 V Short Circuit Current (Isc) 10.12 A Panel Efficiency 19.38 % Maximum Power (Pmax) 294 Wp Voltage at Maximum Power (Vmpp) 39.1 V Current at Maximum Power (Impp) 7.54 A Open Circuit Voltage (Voc) 48 V Short Circuit Current (Isc) 8.02 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2008x1002x40 mm Weight 22.5 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Technology: PERC, TOPCon, N-type
Power Range: 390 ~ 410 Wp
Panel Efficiency: 19.38 ~ 20.38 %
Weight: 22.5 kg
Seller: MY Solar Technology Co., Ltd.
Country: China -
