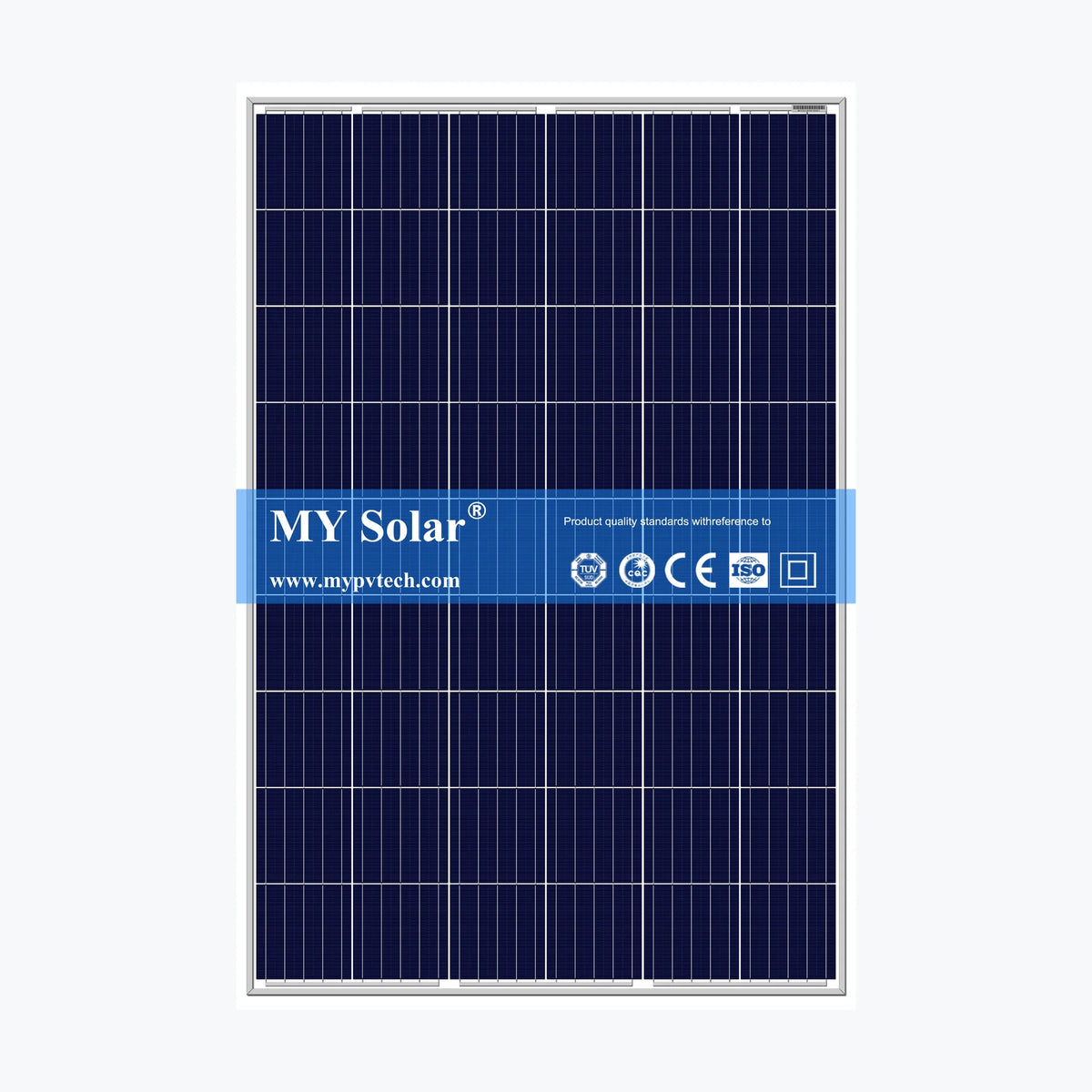

    MY Solar MY-P3/54-250

    MY Solar MY-P3/54-250

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12201
    • Competitor price comparison: {"pes_price":0.17,"avg_competitor_price":269.99,"min_competitor_price":269.99,"max_competitor_price":269.99,"diff_pct":158717.6,"competitor_count":1,"checked_at":"2026-07-21"}
    • Container price: $91.80 USD
    • Container qty: 720
    • Odoo id: 24,043
    • Pallet price: $4.33 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Polycrystalline Model No. MY-P3/54-250 Product Warranty 25 Years Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 250 Wp Voltage at Maximum Power (Vmpp) 28.1 V Current at Maximum Power (Impp) 8.9 A Open Circuit Voltage (Voc) 34.3 V Short Circuit Current (Isc) 9.41 A Panel Efficiency 16.67 % Maximum Power (Pmax) 185.2 Wp Voltage at Maximum Power (Vmpp) 26.1 V Current at Maximum Power (Impp) 7.1 A Open Circuit Voltage (Voc) 31.8 V Short Circuit Current (Isc) 7.64 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1500x1000x35 mm Weight 16.9 kg Cell Size 158.75×158.75 mm Cell Number 54 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manu

      Power Range: 250 ~ 270 Wp
      Panel Efficiency: 16.67 ~ 18 %
      Weight: 16.9 kg
      Seller Name: MY Solar Technology Co., Ltd.
      Country: China
