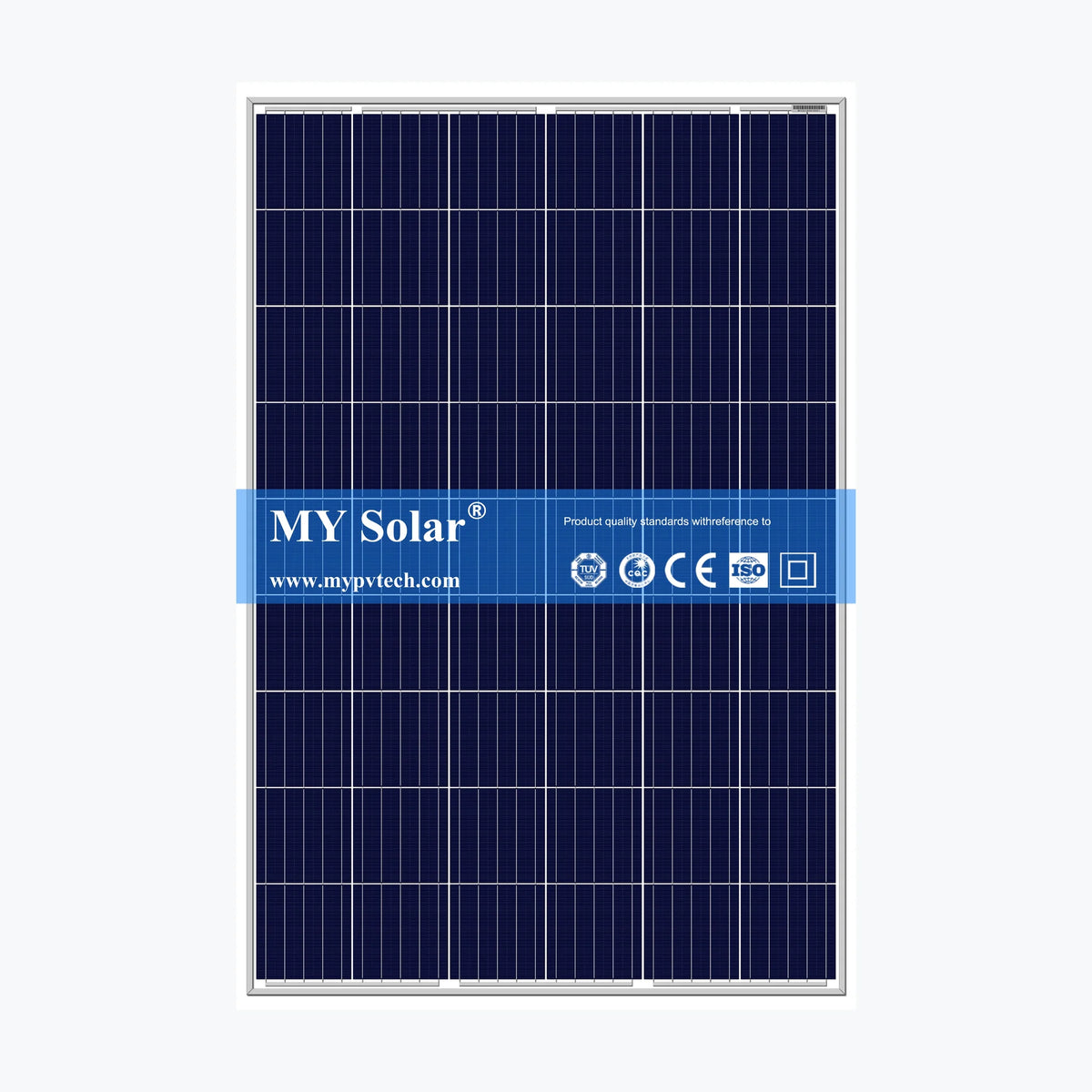

MY Solar MY-P3/54-255
MY Solar MY-P3/54-255
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12202
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Polycrystalline Model No. MY-P3/54-255 Product Warranty 25 Years Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 255 Wp Voltage at Maximum Power (Vmpp) 28.3 V Current at Maximum Power (Impp) 9.01 A Open Circuit Voltage (Voc) 34.5 V Short Circuit Current (Isc) 9.53 A Panel Efficiency 17 % Maximum Power (Pmax) 188.9 Wp Voltage at Maximum Power (Vmpp) 26.3 V Current at Maximum Power (Impp) 7.19 A Open Circuit Voltage (Voc) 32.1 V Short Circuit Current (Isc) 7.74 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1500x1000x35 mm Weight 16.9 kg Cell Size 158.75×158.75 mm Cell Number 54 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manuf
Power Range: 250 ~ 270 Wp
Panel Efficiency: 16.67 ~ 18 %
Weight: 16.9 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
