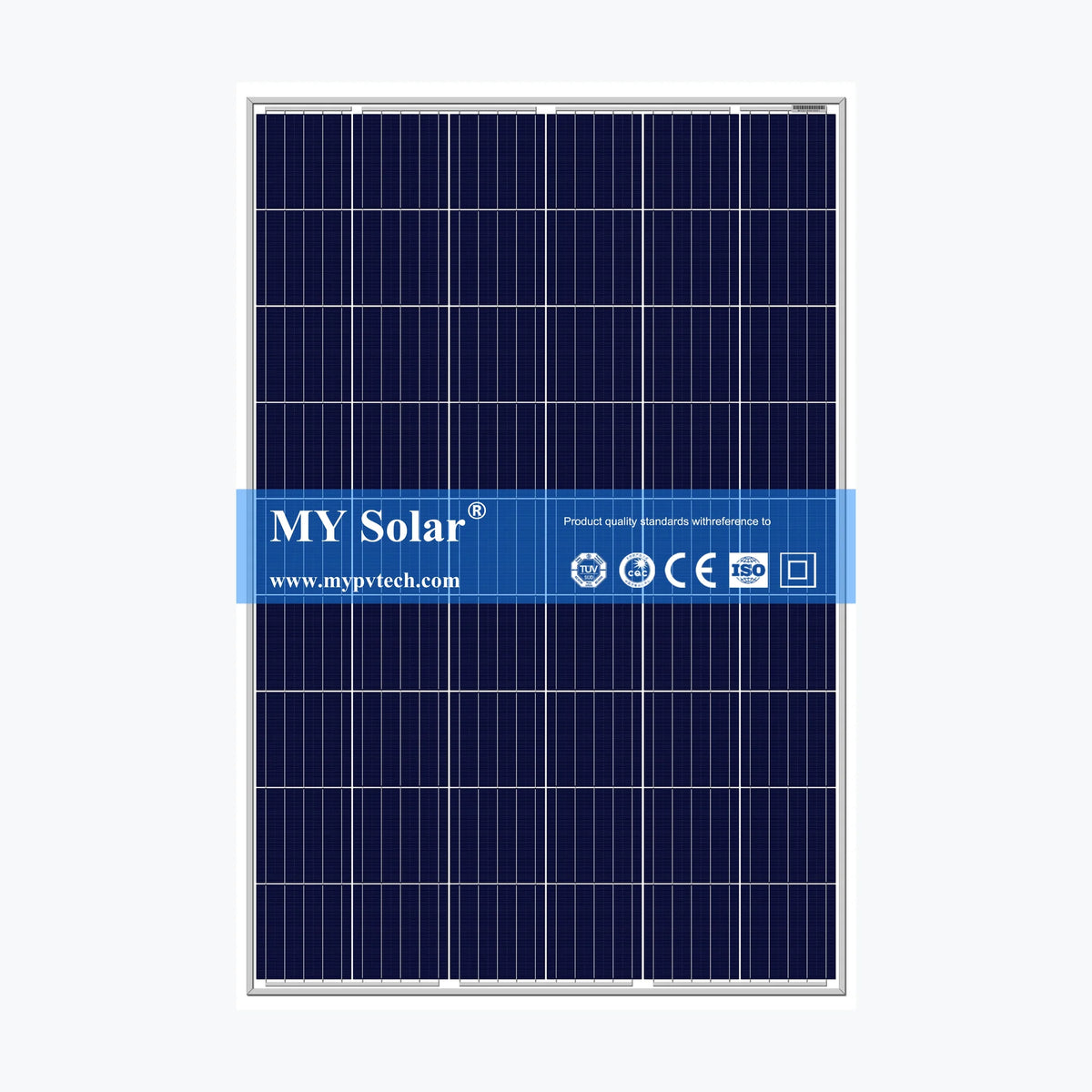

    MY Solar MY-P3/54-270

    MY Solar MY-P3/54-270

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12205
    • Container price: $91.80 USD
    • Container qty: 720
    • Odoo id: 24,047
    • Pallet price: $4.33 USD
    • Pallet qty: 30
    • Unit price: $0.17 USD
    View full details

    Product Description

    • Type Polycrystalline Model No. MY-P3/54-270 Product Warranty 25 Years Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 270 Wp Voltage at Maximum Power (Vmpp) 28.9 V Current at Maximum Power (Impp) 9.34 A Open Circuit Voltage (Voc) 35.3 V Short Circuit Current (Isc) 9.88 A Panel Efficiency 18 % Maximum Power (Pmax) 200 Wp Voltage at Maximum Power (Vmpp) 26.8 V Current at Maximum Power (Impp) 7.46 A Open Circuit Voltage (Voc) 32.8 V Short Circuit Current (Isc) 8.02 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1500x1000x35 mm Weight 16.9 kg Cell Size 158.75×158.75 mm Cell Number 54 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufac

      Power Range: 250 ~ 270 Wp
      Panel Efficiency: 16.67 ~ 18 %
      Weight: 16.9 kg
      Seller Name: MY Solar Technology Co., Ltd.
      Country: China
