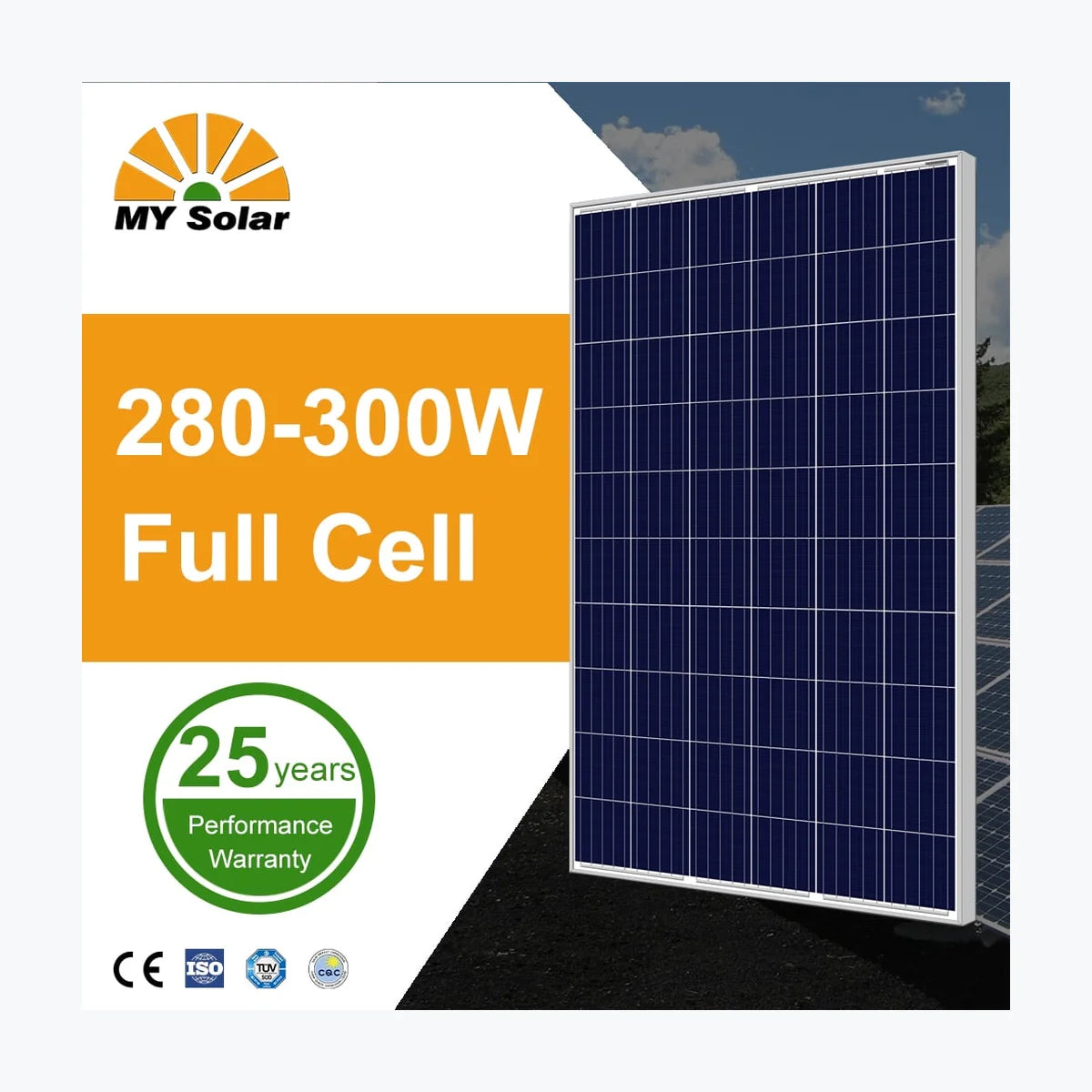

MY Solar MY-P3/60-280
PayPal Pay in 4 interest-free payments of $25.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-12206
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Polycrystalline Model No. MY-P3/60-280 Product Warranty 12 Years Power Warranty 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 280 Wp Voltage at Maximum Power (Vmpp) 31.2 V Current at Maximum Power (Impp) 8.97 A Open Circuit Voltage (Voc) 38.1 V Short Circuit Current (Isc) 9.49 A Panel Efficiency 16.81 % Maximum Power (Pmax) 207.4 Wp Voltage at Maximum Power (Vmpp) 28.9 V Current at Maximum Power (Impp) 7.16 A Open Circuit Voltage (Voc) 35.4 V Short Circuit Current (Isc) 7.71 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1666x1000x35 mm Weight 19 kg Cell Size 158.75×158.75 mm Cell Number 60 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class
Technology: PERC
Power Range: 280 ~ 300 Wp
Panel Efficiency: 16.81 ~ 18.01 %
Weight: 19 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-12206 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
