In Stock

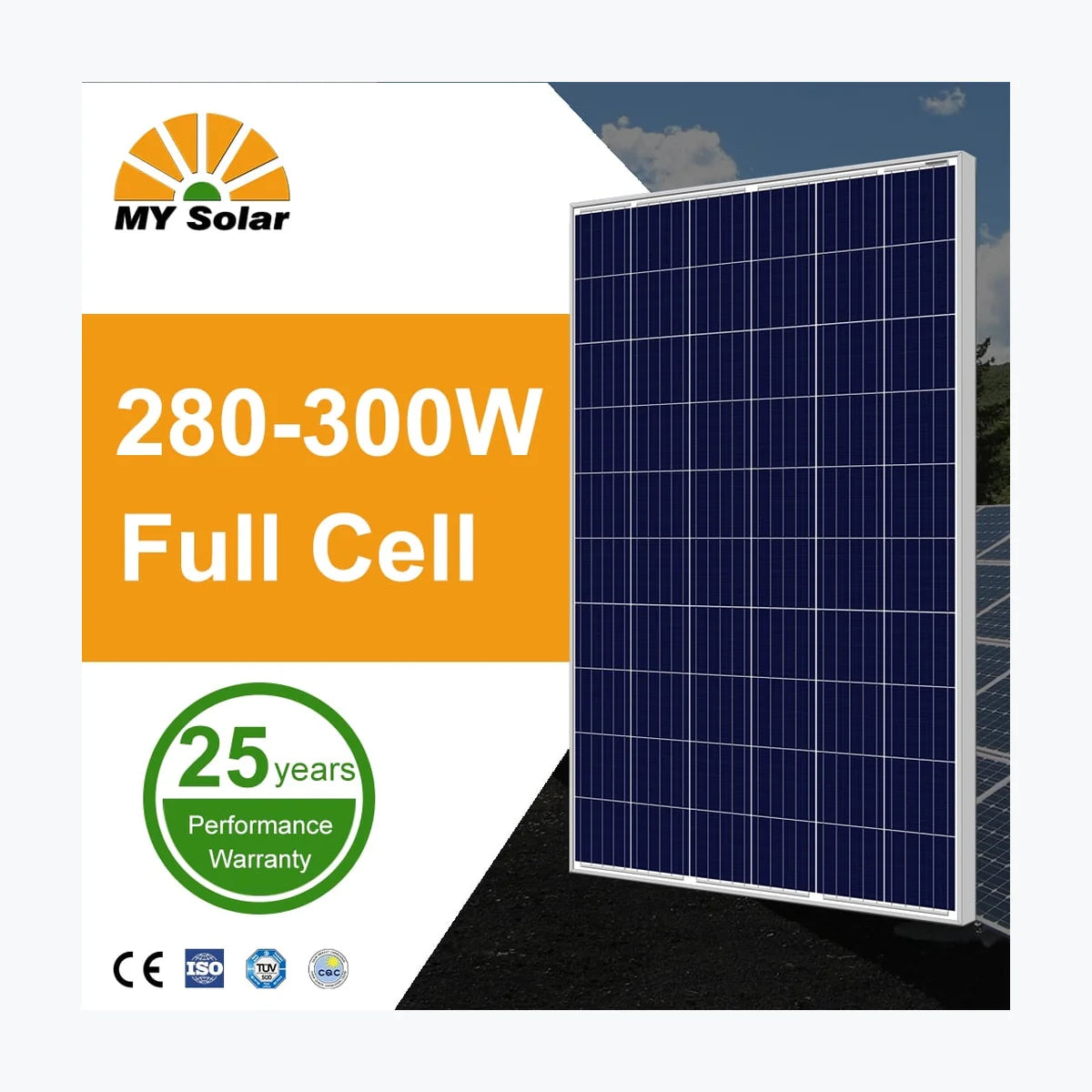

MY Solar MY-P3/60-285
MY Solar MY-P3/60-285
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12207
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Polycrystalline Model No. MY-P3/60-285 Product Warranty 12 Years Power Warranty 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 285 Wp Voltage at Maximum Power (Vmpp) 31.4 V Current at Maximum Power (Impp) 9.08 A Open Circuit Voltage (Voc) 38.3 V Short Circuit Current (Isc) 9.6 A Panel Efficiency 17.11 % Maximum Power (Pmax) 211.1 Wp Voltage at Maximum Power (Vmpp) 29.1 V Current at Maximum Power (Impp) 7.25 A Open Circuit Voltage (Voc) 35.6 V Short Circuit Current (Isc) 7.8 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1666x1000x35 mm Weight 19 kg Cell Size 158.75×158.75 mm Cell Number 60 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP
Technology: PERC
Power Range: 280 ~ 300 Wp
Panel Efficiency: 16.81 ~ 18.01 %
Weight: 19 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
