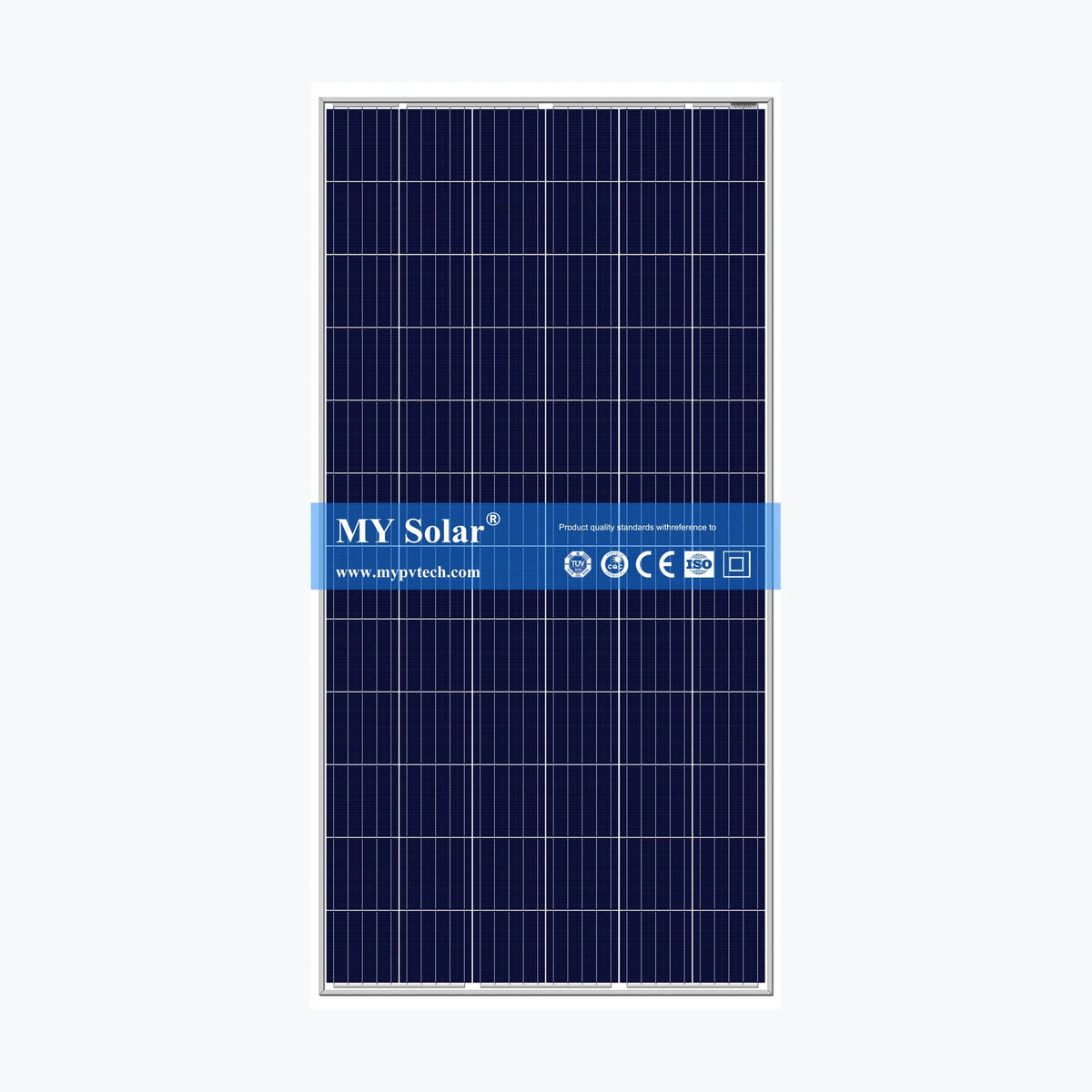

MY Solar MY-P3/72-340
MY Solar MY-P3/72-340
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12212
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Polycrystalline Model No. MY-P3/72-340 Product Warranty 25 Years Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 340 Wp Voltage at Maximum Power (Vmpp) 37.6 V Current at Maximum Power (Impp) 9.04 A Open Circuit Voltage (Voc) 45.9 V Short Circuit Current (Isc) 9.56 A Panel Efficiency 17.17 % Maximum Power (Pmax) 251.8 Wp Voltage at Maximum Power (Vmpp) 34.9 V Current at Maximum Power (Impp) 7.22 A Open Circuit Voltage (Voc) 42.6 V Short Circuit Current (Isc) 7.77 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1980x1000x35 mm Weight 22.3 kg Cell Size 158.75×158.75 mm Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download
Power Range: 335 ~ 355 Wp
Panel Efficiency: 16.92 ~ 17.93 %
Weight: 22.3 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
