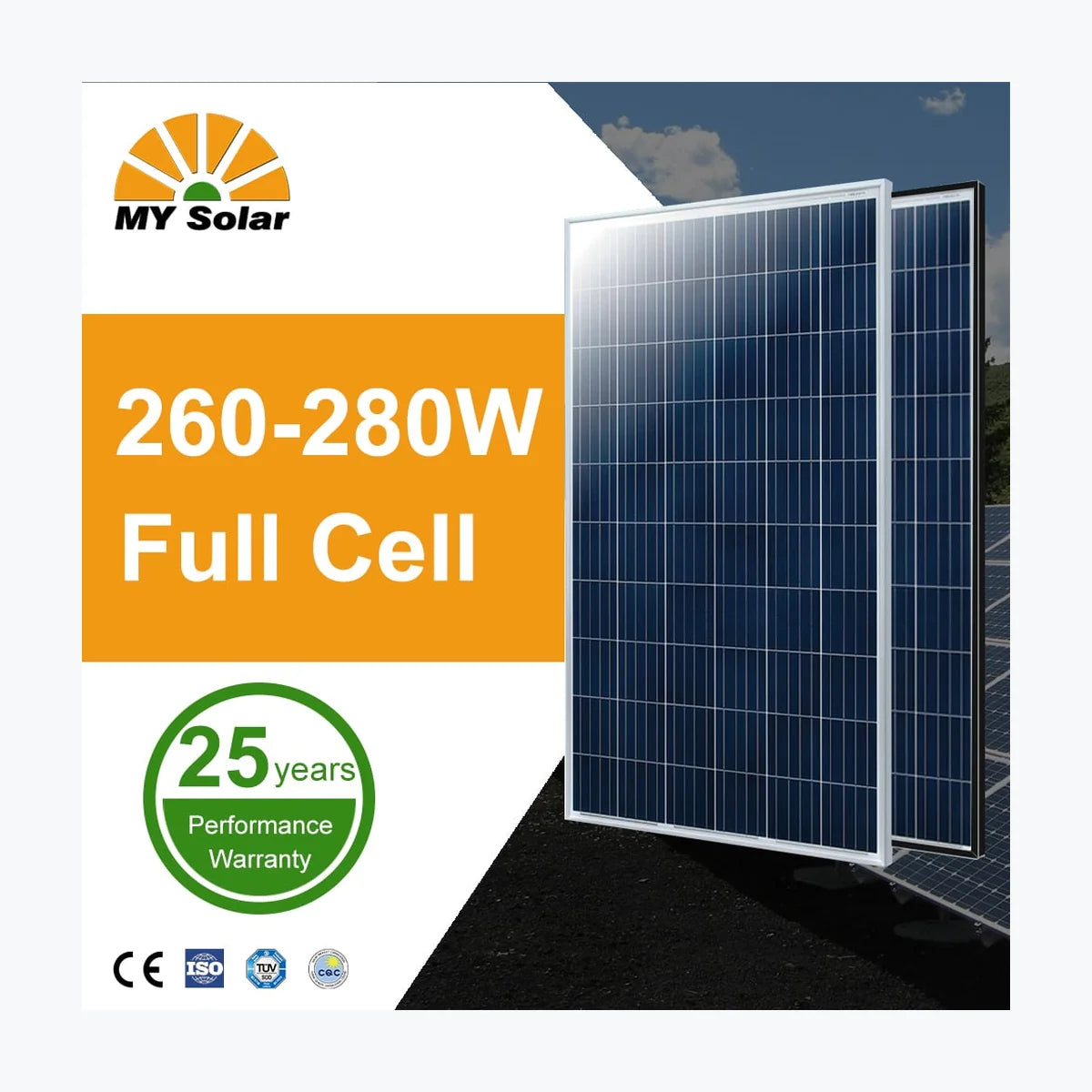

    MY Solar MYM2054-270

    MY Solar MYM2054-270

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12216
    • Container price: $91.80 USD
    • Container qty: 720
    • Pallet price: $4.33 USD
    • Pallet qty: 30
    • Unit price: $0.17 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. MYM2054-270 Product Warranty 12 Years Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 270 Wp Voltage at Maximum Power (Vmpp) 28.89 V Current at Maximum Power (Impp) 9.35 A Open Circuit Voltage (Voc) 34.84 V Short Circuit Current (Isc) 9.75 A Panel Efficiency 21.2 % Maximum Power (Pmax) 200 Wp Voltage at Maximum Power (Vmpp) 26.8 V Current at Maximum Power (Impp) 7.46 A Open Circuit Voltage (Voc) 32.8 V Short Circuit Current (Isc) 8.02 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 600 V Series Fuse Rating 10 A Panel Dimension (H/W/D) 1480x992x35 mm Weight 19 kg Cell Size 156.75×156.75 mm Cell Number 54 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufact

      Power Range: 270 Wp
      Panel Efficiency: 21.20%
      Weight: 19 kg
      Seller Name: MY Solar Technology Co., Ltd.
      Country: China
