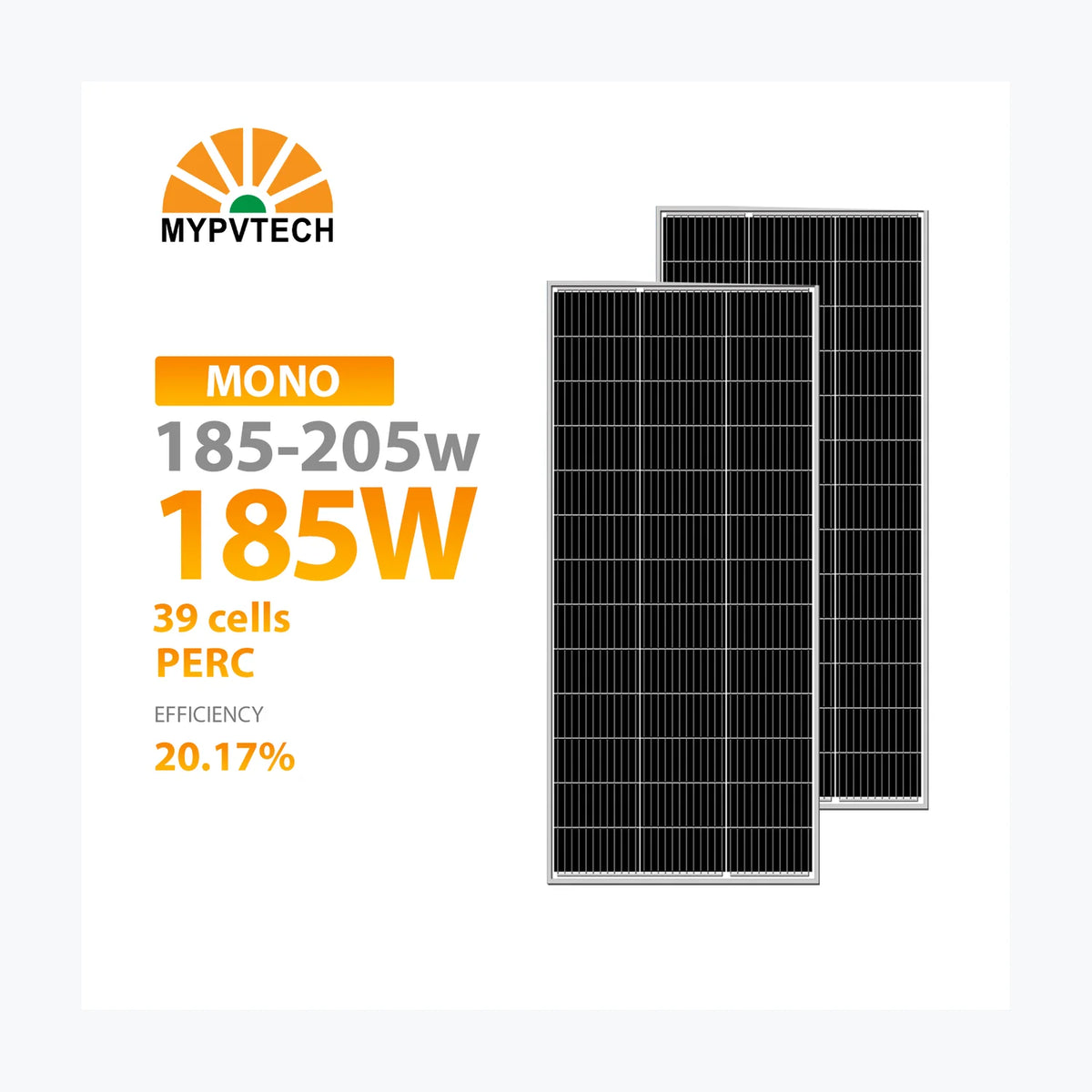

MY Solar MYM3036-185
MY Solar MYM3036-185
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12217
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. MYM3036-185 Product Warranty 25 Years Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 185 Wp Voltage at Maximum Power (Vmpp) 19.1 V Current at Maximum Power (Impp) 9.69 A Open Circuit Voltage (Voc) 23.5 V Short Circuit Current (Isc) 10.16 A Panel Efficiency 18.1 % Maximum Power (Pmax) 136.1 Wp Voltage at Maximum Power (Vmpp) 17.8 V Current at Maximum Power (Impp) 7.66 A Open Circuit Voltage (Voc) 21.7 V Short Circuit Current (Isc) 8.17 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1500x680x35 mm Weight 11.3 kg Cell Size 158.75×158.75 mm Cell Number 36 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Ma
Power Range: 185 ~ 205 Wp
Panel Efficiency: 18.1 ~ 20.1 %
Weight: 11.3 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
