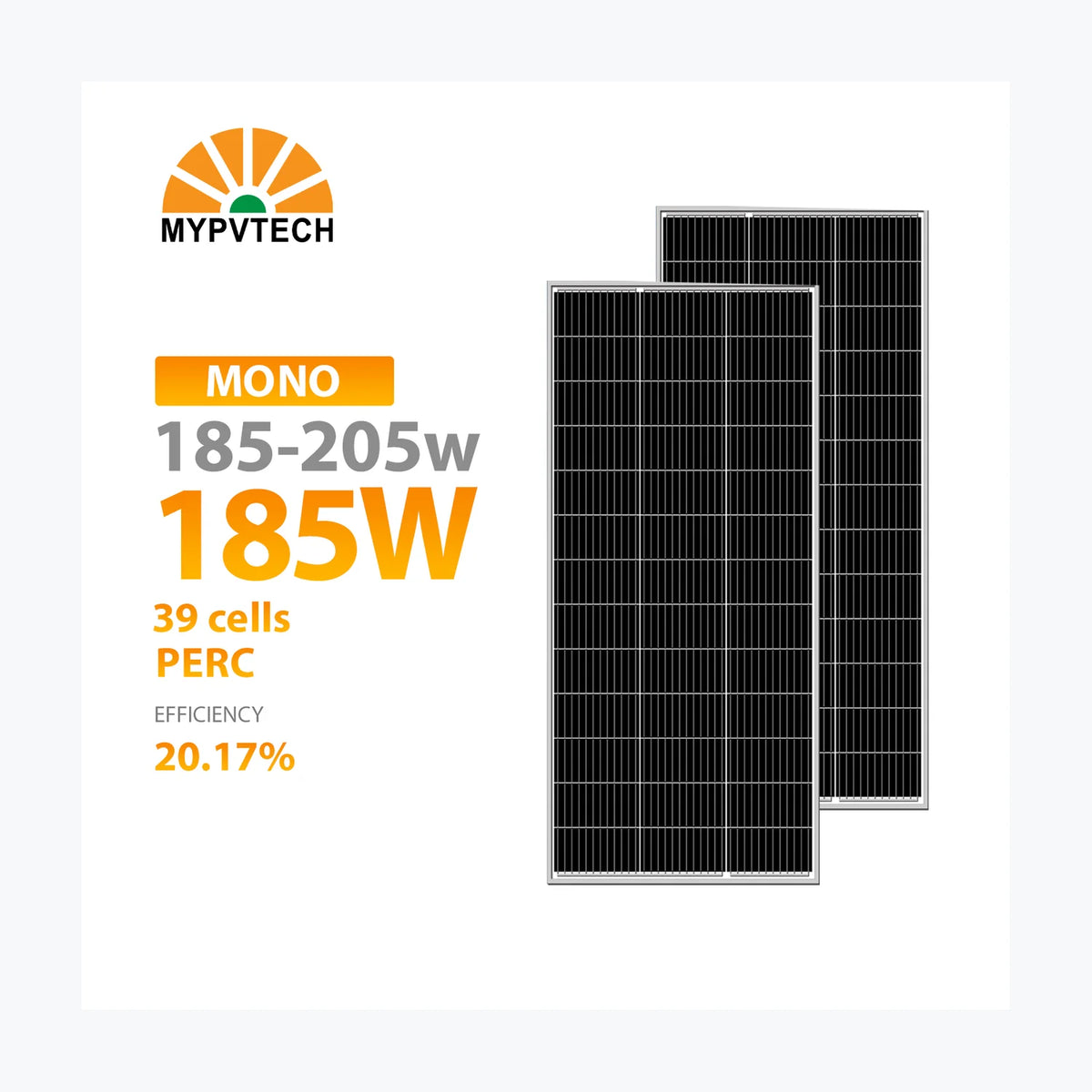

    MY Solar MYM3036-195

    MY Solar MYM3036-195

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12219
    • Container price: $91.80 USD
    • Container qty: 720
    • Pallet price: $4.33 USD
    • Pallet qty: 30
    • Unit price: $0.17 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. MYM3036-195 Product Warranty 25 Years Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 195 Wp Voltage at Maximum Power (Vmpp) 19.5 V Current at Maximum Power (Impp) 10 A Open Circuit Voltage (Voc) 24 V Short Circuit Current (Isc) 10.49 A Panel Efficiency 19.1 % Maximum Power (Pmax) 143.5 Wp Voltage at Maximum Power (Vmpp) 18.2 V Current at Maximum Power (Impp) 7.9 A Open Circuit Voltage (Voc) 22.22 V Short Circuit Current (Isc) 8.44 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1500x680x35 mm Weight 11.3 kg Cell Size 158.75×158.75 mm Cell Number 36 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufa

      Power Range: 185 ~ 205 Wp
      Panel Efficiency: 18.1 ~ 20.1 %
      Weight: 11.3 kg
      Seller Name: MY Solar Technology Co., Ltd.
      Country: China
