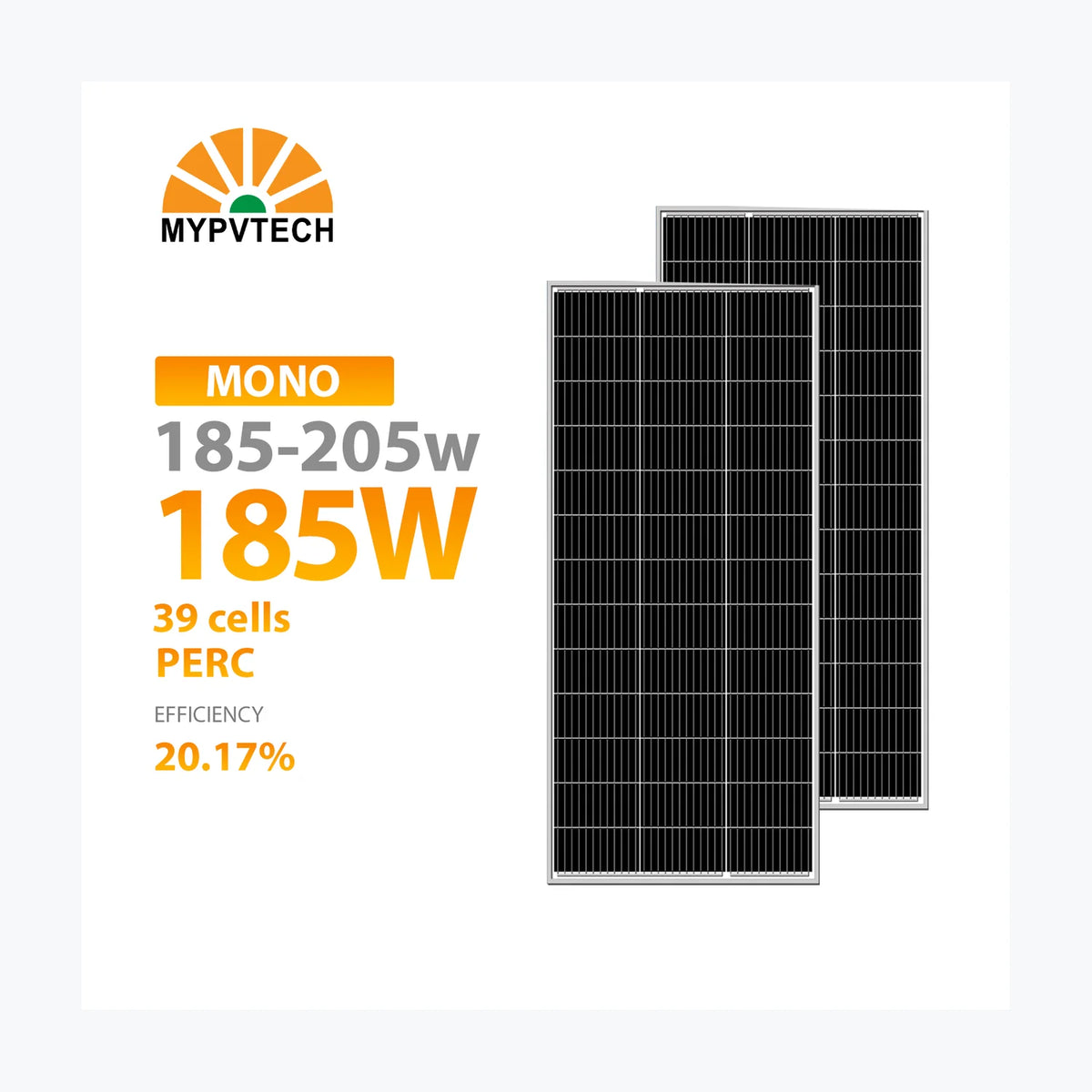

    MY Solar MYM3036-205

    MY Solar MYM3036-205

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12221
    • Container price: $91.80 USD
    • Container qty: 720
    • Pallet price: $4.33 USD
    • Pallet qty: 30
    • Unit price: $0.17 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. MYM3036-205 Product Warranty 25 Years Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 205 Wp Voltage at Maximum Power (Vmpp) 19.9 V Current at Maximum Power (Impp) 10.3 A Open Circuit Voltage (Voc) 24.5 V Short Circuit Current (Isc) 10.81 A Panel Efficiency 20.1 % Maximum Power (Pmax) 150.8 Wp Voltage at Maximum Power (Vmpp) 18.5 V Current at Maximum Power (Impp) 8.14 A Open Circuit Voltage (Voc) 22.6 V Short Circuit Current (Isc) 8.69 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1500x680x35 mm Weight 11.3 kg Cell Size 158.75×158.75 mm Cell Number 36 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Ma

      Power Range: 185 ~ 205 Wp
      Panel Efficiency: 18.1 ~ 20.1 %
      Weight: 11.3 kg
      Seller Name: MY Solar Technology Co., Ltd.
      Country: China
